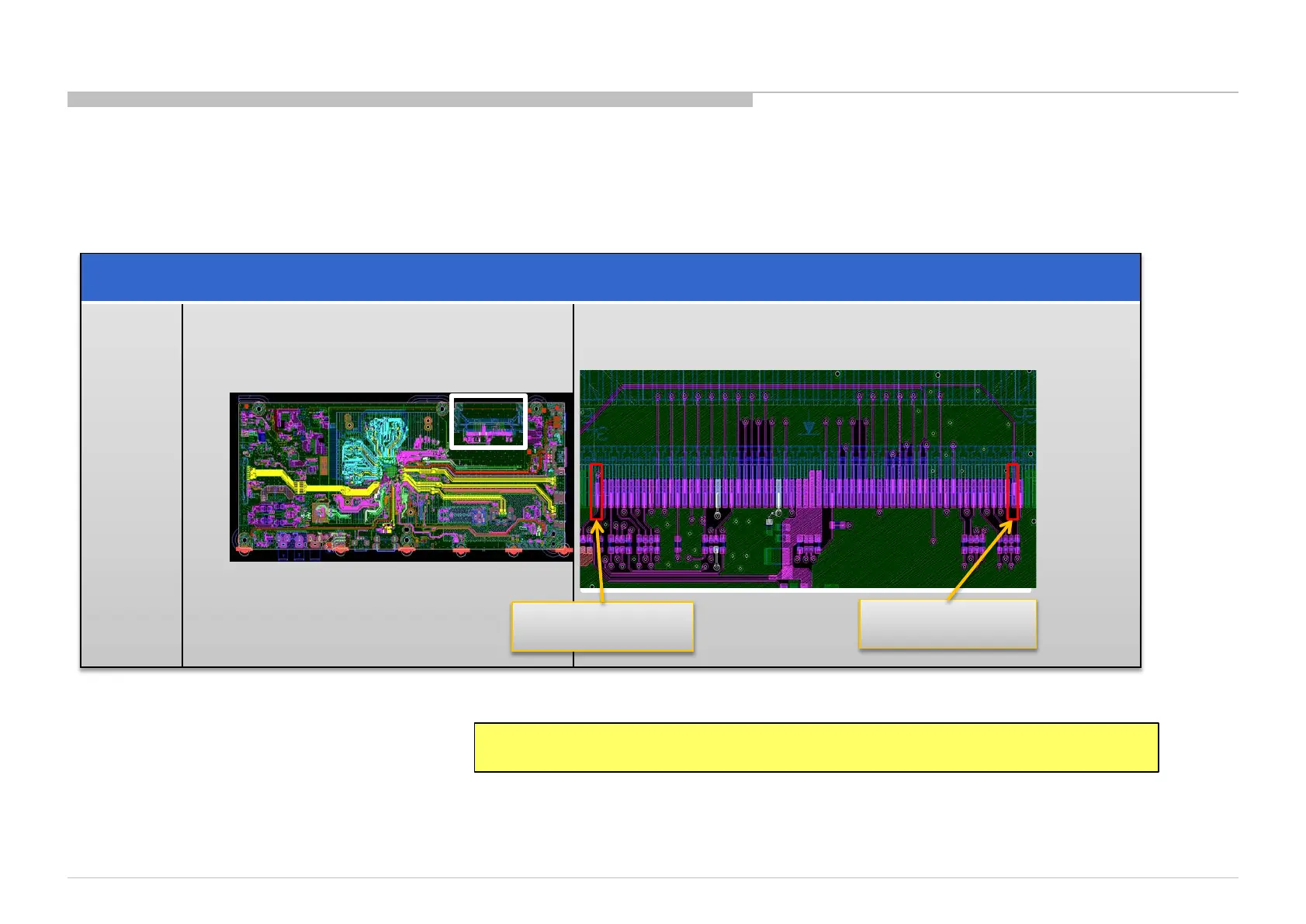

Board Name Board PWB (A side) Detail
BB8
3.6 CI Slot – Cannot Play / No picture / No Sound – Checking Point
53
CI Slot (B-board Checking) – Checking CI Detection Pin Points [2/3]
Remark:
Both CI Detection Pin should be 3.3V before CICAM insert and 0v when CICAM inserted.
Card Detect 1 – PIN
36
Card Detect 2 – PIN
67
