Sony KD-55X7 E Series - HDCP Failure Analysis - General Checking

3.7.2 HDCP Failure Analysis – General Checking
57
Checking condition:
- TV ON & HDMI Source ON except if the flow mentioned is AC OFF.
- TV HDMI input connected to HDMI source (Player etc.)
- TV Input Selection: HDMI
Verify HDMI Source
device compatibilities for
HDCP version 1.4
Replace B-Board and Re-verify
HDCP key corrupted
Escalate this issue to
R&D team
[NG] No picture
END

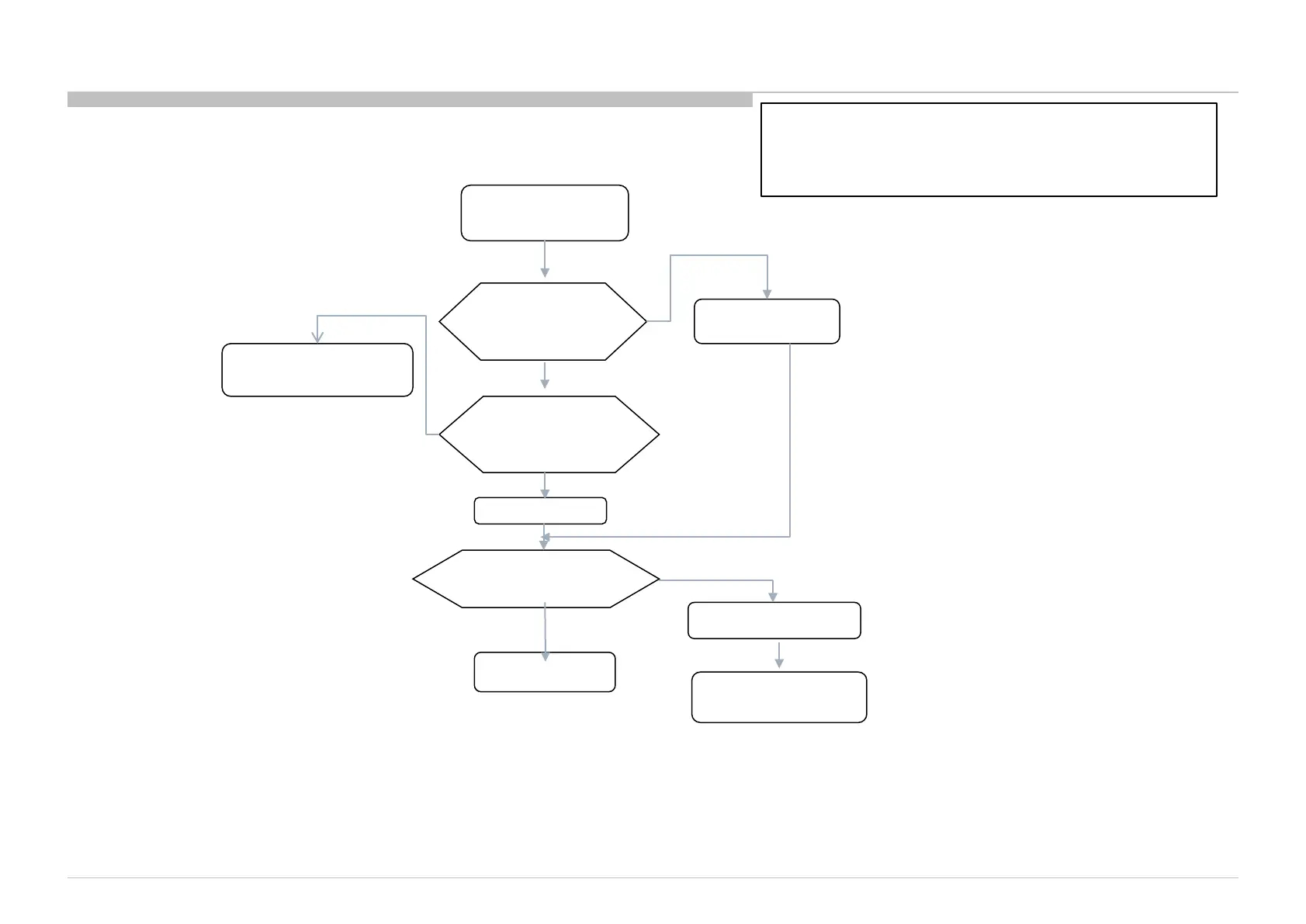

HDCP
Failure Analysis
Verify HDMI Source
device compatibilities for
HDCP version 2.2
[OK] Compatible
[NG] Not Compatible
HDMI Source incompatible
for HDCP1.4 and HDCP 2.2
[OK] Picture recovered
[OK] Compatible
[NG] Not Compatible
HDCP2.2 Issues
HDCP1.4 Issues
