20
KDL-26S2000/32S2000/40S2000
KDL-26S2000/32S2000/40S2000

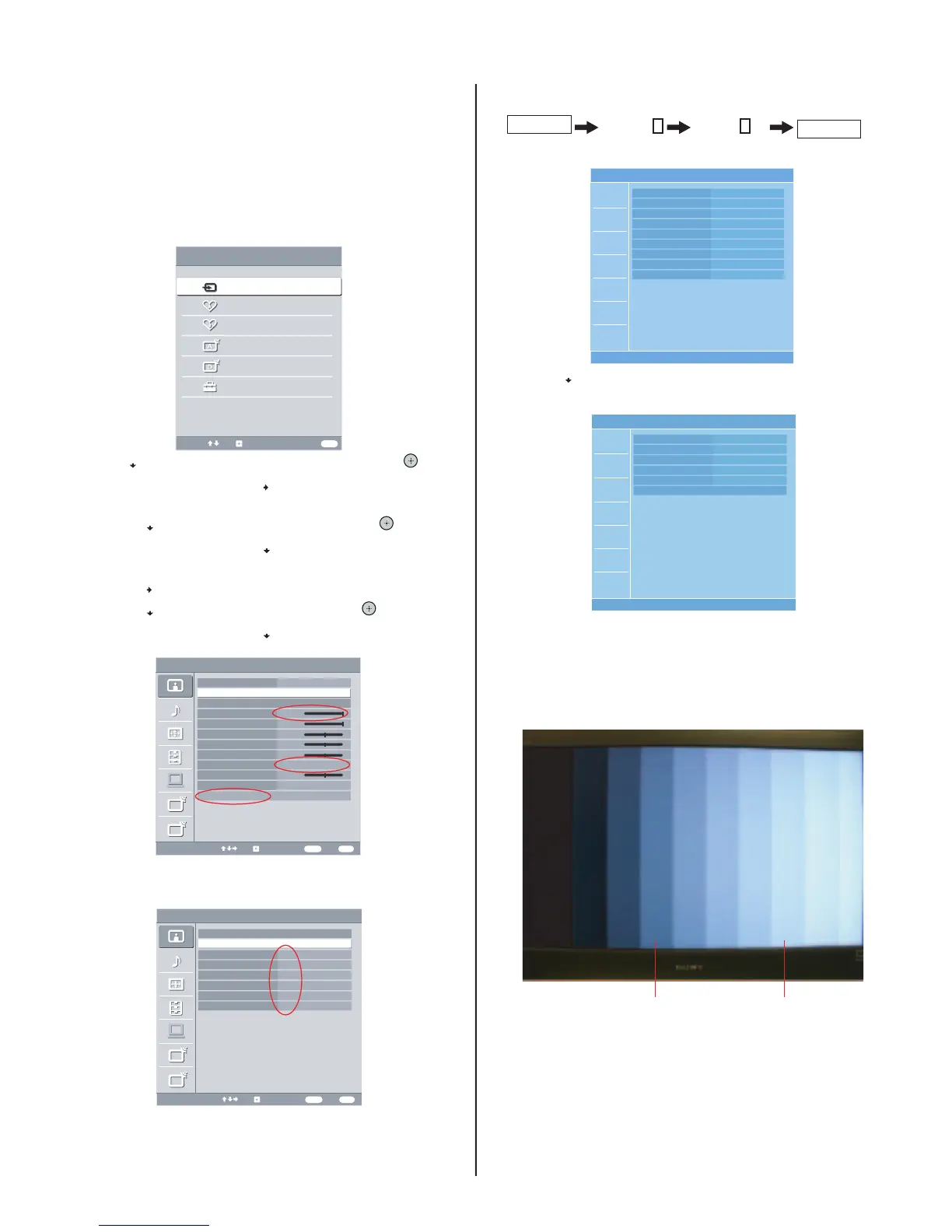

2-5. WHITE BALANCE ADJUSTMENT
.
The White Balance only needs to be adjusted when you replace the BU
Board.
1. Through the Video 1 input, step Gray Scale with Setup.
2. Press MENU on the Remote Commander.
The User Menu displays.
Select from connected equipment
MENU
External Inputs
Analog Favorites
Digital Favorites
Analog
Digital
Settings
Select:
Exit:Set:
MENU
3. Press the button until Settings is selected, then press the button.
4. From the Picture menu, press the
button to display the picture mode
options.
a. Press the
button to select Custom, then press the button.
5. From the Picture menu, press the
button to select Color
Temperature.
a. Press the
button to display the Color Temperature options.
b. Press the
button to select Cool, then press the button.
6. From the Picture menu, press the
button to select Advanced
Settings.
Picture Video 1
Target Inputs All Inputs
Picture Mode Custom
Reset
Backlight Max
Picture Max
Brightness 50
Color 50
Hue 0
Color Temperature Cool
Sharpness 15
Noise Reduction Low
Advanced Settings
A
A
D
D
Select:
Back: Exit:Set:
MENU
RETURN
7. Using the arrow keys set all the registers in the Advanced Setting
menu to Off.
Picture Video 1
Advanced Settings
Reset
Black Corrector Off
Contrast Enhancer Off
Gamma Off
Clear White Off
Live Color Off
MPEG Noise Reduction Off
A
A
D
D
Select:
Back: Exit:Set:
MENU
RETURN
8. Put the TV in standby mode. (Power off).
9. Access the Service Menu by pressing the following buttons on the
Remote Commander within a second:
DISPLAY
Channel
5
Volume
+
POWER
On.
The Digital service menu displays.
Video 1
MAIN VER. 1009
H PACK VER. 1008
S PACK VER. 1008
CHECK SUM E20E
NVM VER. 1006
ATI VER. 01.06
ATI UD NVM VER. 02
ATI SD NVM VER. 02
ETI 46h 39m
10. Press the button to display the white balance adjustment menu
items.
Video 1
R_DRIVE 256
B_DRIVE 256
R_BKG 512
G_BKG 512
B_BKG 512
COLOR SAVE
11. Using 10 step NTC Gray Scale with Setup adjust the White Balance
of the 60% shade with R_Drive and B_Drive.
12. Using the same pattern, adjust the white balance 20% with R_BKG
and B_BKG.
13. 20IRE and 60IRE shades should have the same color.
20 IRE Level
60 IRE Level
