Sony KDL-40D340 - 5 Exploded Views; Chassis

SECTION 5
EXPLODED VIEWS
NOTE :
Non-serviceable items with no part number and no
description are not stocked because they are not
required for routine service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

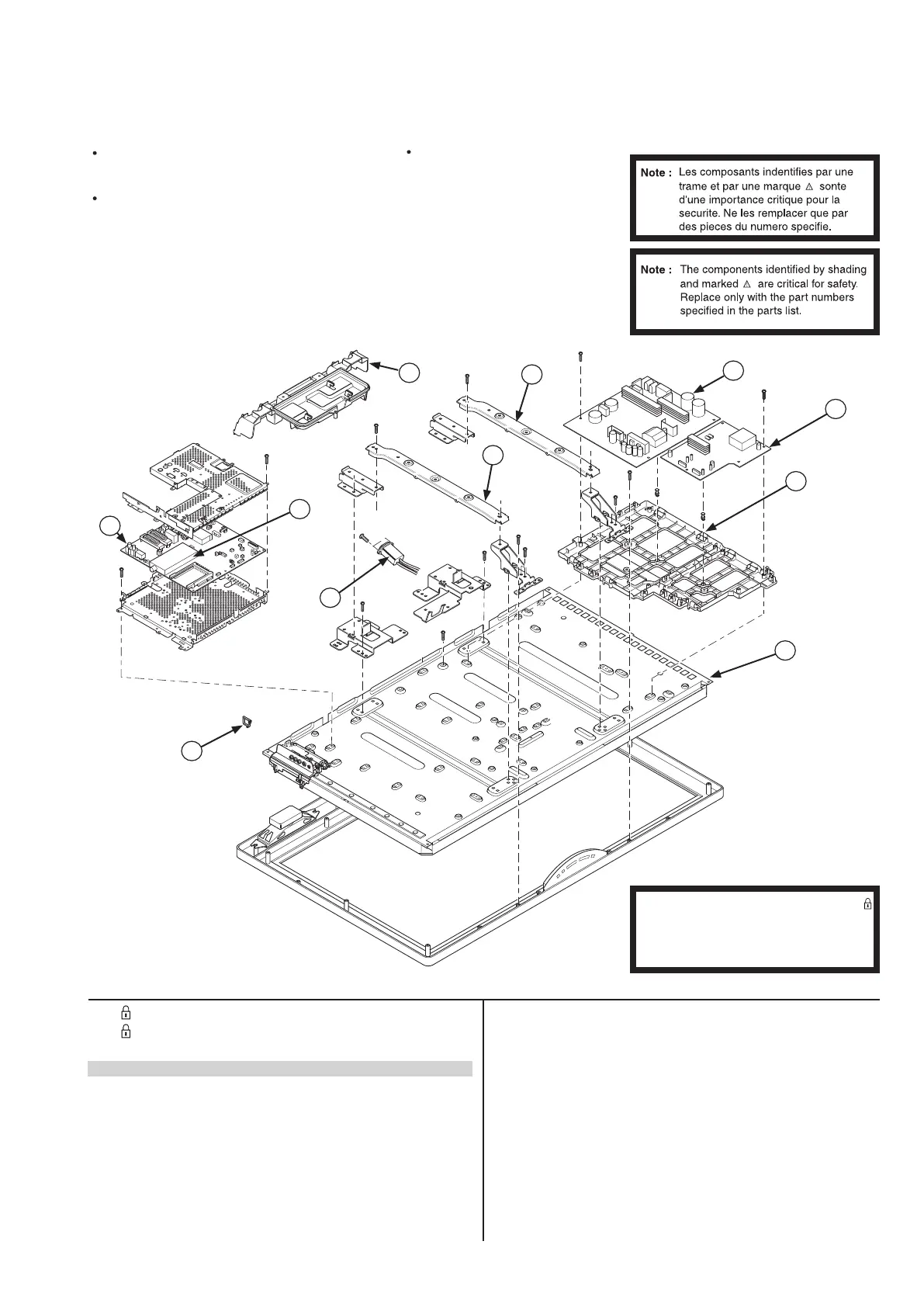

5-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 97 -
6 *X-2178-424-1 BRACKET, G3 ASSY
7 *A-1436-085-A DF1 BOARD, COMPLETE (40 inches)
*A-1314-490-A DF2 BOARD, COMPLETE (46 inches)
8 *A-1268-619-A G3 BOARD, COMPLETE
9 *X-2177-260-1 VESA ARM (40) R ASSY (40 inches)
*X-2177-276-1 VESA ARM (46) R ASSY (46 inches)
10 *X-2177-259-1 VESA ARM (40) L ASSY (40 inches)
*X-2177-275-1 VESA ARM (46) L ASSY (46 inches)
11 3-100-285-01 COVER, UNDER (L)
2
4
5
7
9
10
11
1
3
6
8
Note : The components identified by mark
contain confidential information.
Strictly follow the instructions when
ever the components are repaired
and/or replaced.
e
d
d
c
d
f
f
a 2-580-591-01 SCREW, +PSW M3X5
b 7-685-872-09 SCREW, +BVTT 3X8 (S)
c 2-580-640-01 SCREW, +BVTP2 4X16
d 2-580-606-01 SCREW, +PSW M5X8
g
e 2-580-600-01 SCREW, +PSW M4X8
f 2-674-965-41 SCREW, +PSW 3SG
g 3-252-830-01 SCREW, +PWHTP B3
1 *A-1487-857-A BE1F BOARD, COMPLETE (Type A Panel)
*A-1506-864-A BE1F BOARD, COMPLETE (Type S Panel)
2 8-597-613-01 TUNER UNIT DIGITAL BTD-HF401Z
3 £ 1-819-729-14 INLET, AC (WITH NOISE FILTER)
4 2-650-770-21 SLIDE, CLAMP VARIOUS POSITIONS
5 1-802-580-11 LCD PANEL (40INCH FHD TFT)
(40 inches Type A Panel)
1-802-488-13 LCD PANEL (40INCH FHD TFT)
(40 inches Type S Panel)
1-802-579-11 LCD PANEL (46INCH FHD TFT)
(46 inches Type A Panel)
