Sony KDL-40D340 - Rear Cover, Stand & Bezel

REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
- 98 -
20 *X-2177-982-3 STAND (ML-B) ASSY (40 inches)
*X-2177-985-3 STAND (L-B) ASSY (46 inches)
21 X-2102-511-3 BAG ASSY, RUDDER LOCK
22 *A-1418-757-A U1 BOARD, COMPLETE
23 3-106-547-11 HOLDER, SIDE JACK (M) (40 inches)
3-106-548-11 HOLDER, SIDE JACK (L) (46 inches)
24 1-826-647-11 LOUDSPEAKER (5.5X15.5CM) (40 inches)
1-826-646-11 LOUD SPEAKER (13X7CM) (46 inches)
25 X-2176-953-1 BAFFLE (40E) ASSY (40 inches)
X-2176-954-1 BAFFLE (46E) ASSY (46 inches)
26 X-2176-648-1 BEZEL (40DE) ASSY (40 inches)
X-2176-649-1 BEZEL (46DE) ASSY (46 inches)
27 *A-1220-319-A H3 BOARD, COMPLETE
28 3-096-949-02 GUIDE, LED (D)
29 *A-1220-320-A H4 BOARD, COMPLETE
30 *A-1220-318-A H1 BOARD, COMPLETE
31 3-106-544-01 BUTTON, MULTI
32 3-106-545-01 COVER, BUTTON
33 3-106-546-01 COVER, ECS
34 3-097-989-01 COVER, REAR (40) (40 inches)
3-094-469-11 COVER, REAR (46) (46 inches)
35 4-101-356-02 CARD, DUMMY
36 2-689-737-01 COVER, MS
37 3-094-410-01 SIDE, TERMINAL(AE)
34

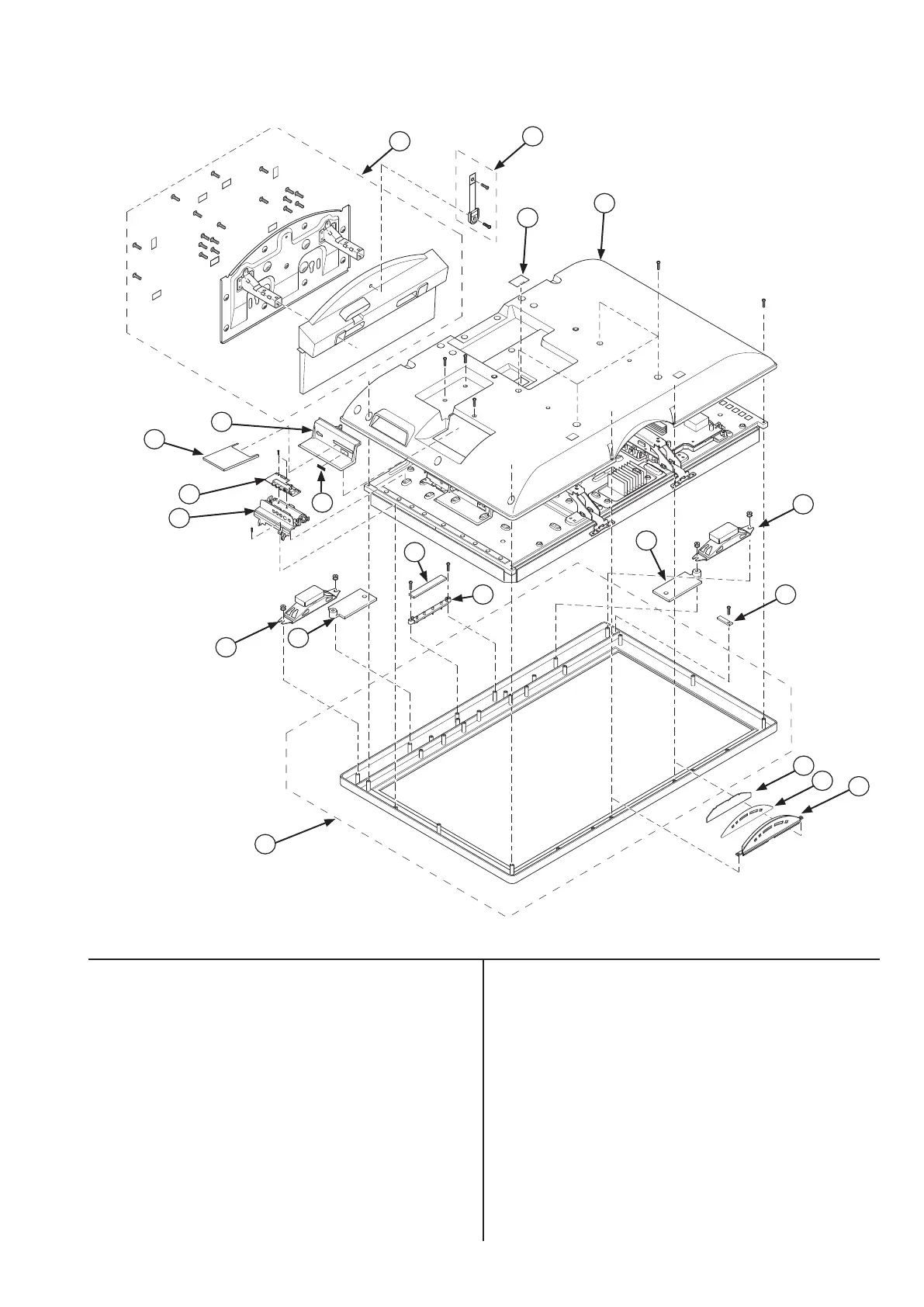

5-2. REAR COVER, STAND & BEZEL
24
28
20
22
26
27
30
32
33
21
23
25
29
24
25
j
k
j
j
j
j
j
j
j
k
k
k
k
k
k
k
k
k
p
l
m
n
n
n
o
n
n
j 2-580-644-01 SCREW, +KTP2 3X8
k 2-580-607-01 SCREW, +PSW M5X12
l 2-580-608-01 SCREW, +PSW M5X16
m 2-580-629-01 SCREW, +BVST 3X8
n 7-685-648-79 SCREW, +BVTP 3X12 TYPE2 IT-3
o 2-580-640-01 SCREW, +BVTP2 4X16
p 2-580-663-01 SCREW, WOOD 3.8X20
q 2-593-320-02 SCREW, COIN (M6X18)
q
31
m
m
35
36
37
