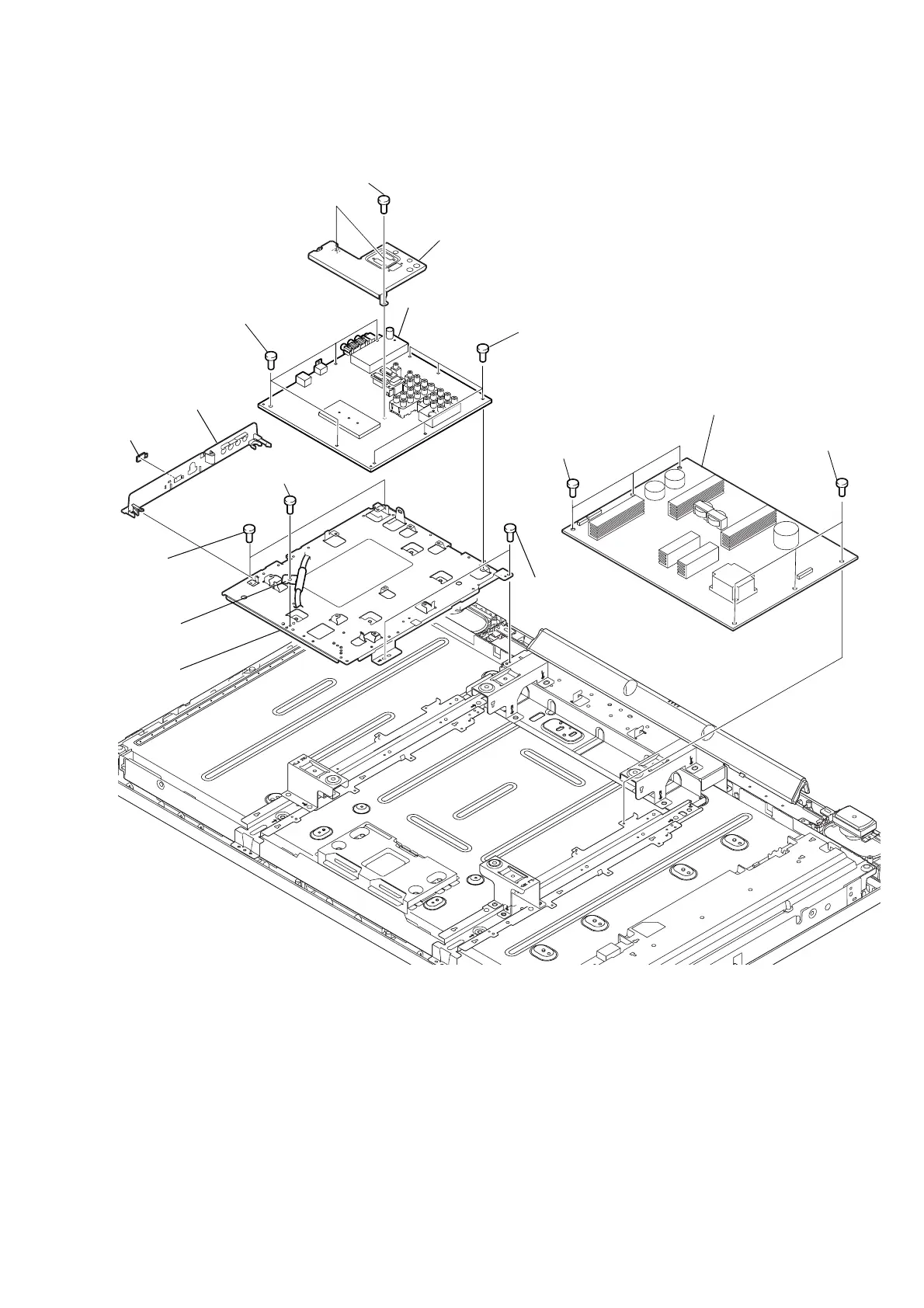

1-2-3. BG1G BOARD AND IP5 BOARD REMOVAL
1 Three screws
(+BVST 3X8)
1 Three screws
(+BVST 3X8)
3 Two screws
(+BVST 3X8)
4 B(G)shild
5 Side jack
bracket assy
6 MS cover
8 BG1G board
7 Four screws
(+BVST 3X8)
9 One screws
(+BVST 3X8)
0 Harness with
connector(LVDS)
qa Two screws
(+BVST 3X8)
qa Two screws
(+BVST 3X8)
qs G5 frame
7 Five screws
(+BVST 3X8)
2 IP5 board
