Sony KLV-40W400A - Chassis-1

KLV-32/40/46/52W400A (GA) 3-12
KLV-52W400A

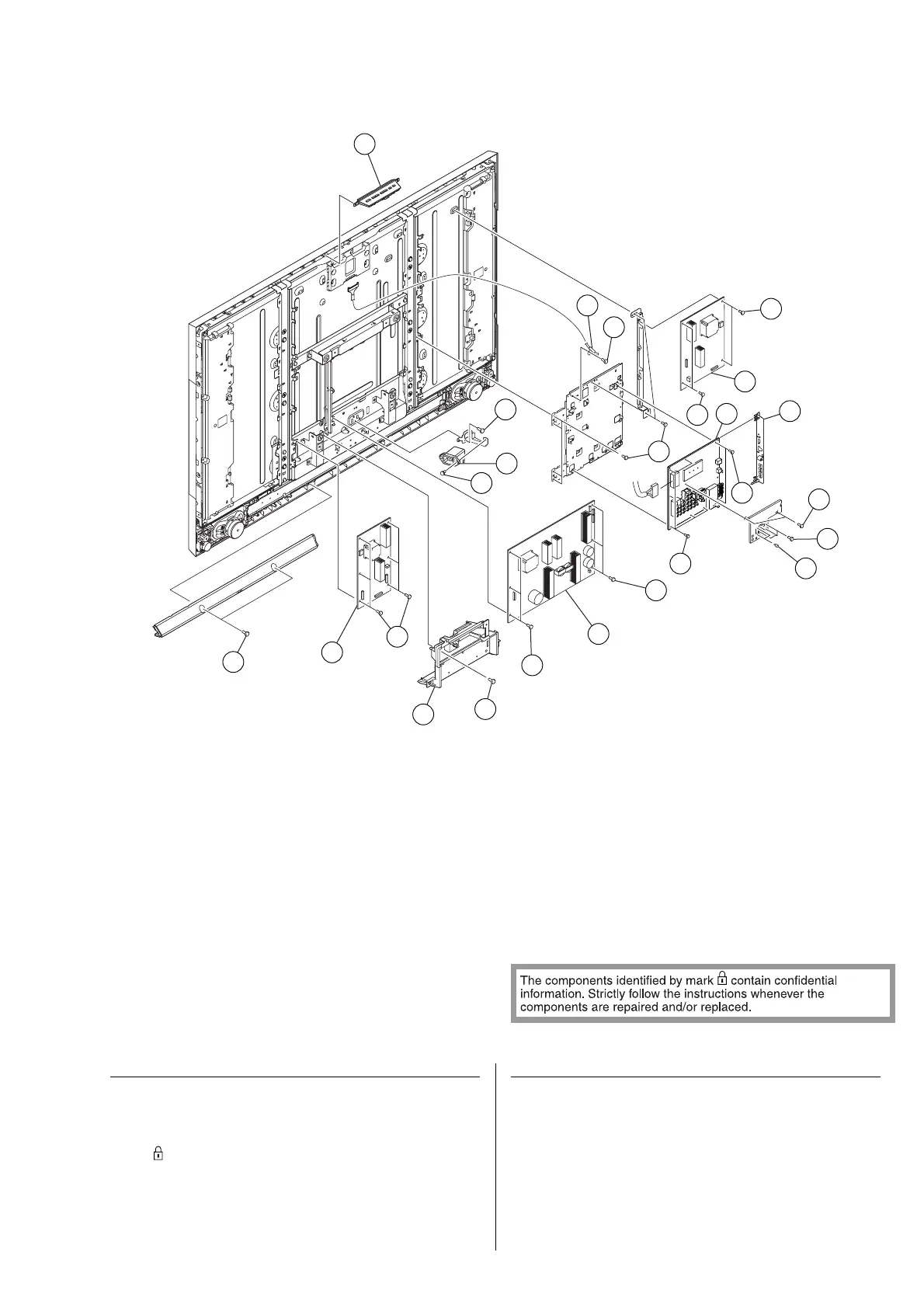

3-4-2. CHASSIS-1
REF. No. PART No. DESCRIPTION MARK REF. No. PART No. DESCRIPTION MARK
501 1-480-709-11 SWITCH UNIT
502 1-966-051-11 HARNESS WITH CONNECTOR (LVDS)
503 2-580-629-01 SCREW, +BVST 3X8
504 ! A-1511-383-A D5 COMPL
505 A-1512-203-B BG1G COMPL
506 2-596-649-01 +KTT 3X10 (S TYPE)
507 2-580-590-01 SCREW , +PSW M3X5
508 ! A-1511-323-B G5 COMPL
509 3-284-269-01 COVER,UNDER (LL)
510 ! A-1511-382-A D4 COMPL
511 2-580-626-01 SCREW, SP 4-4O UNC
512 ! 1-821-909-11 AC INLET
513 X-2318-263-1 SIDE JACK BRACKET (EX1) ASSY
501
512
503
503
505
503
504
503
503
503
503
508
510
509
503
503
503
506
503
507
511
502
503
503
513
