LA-EA4
2-4

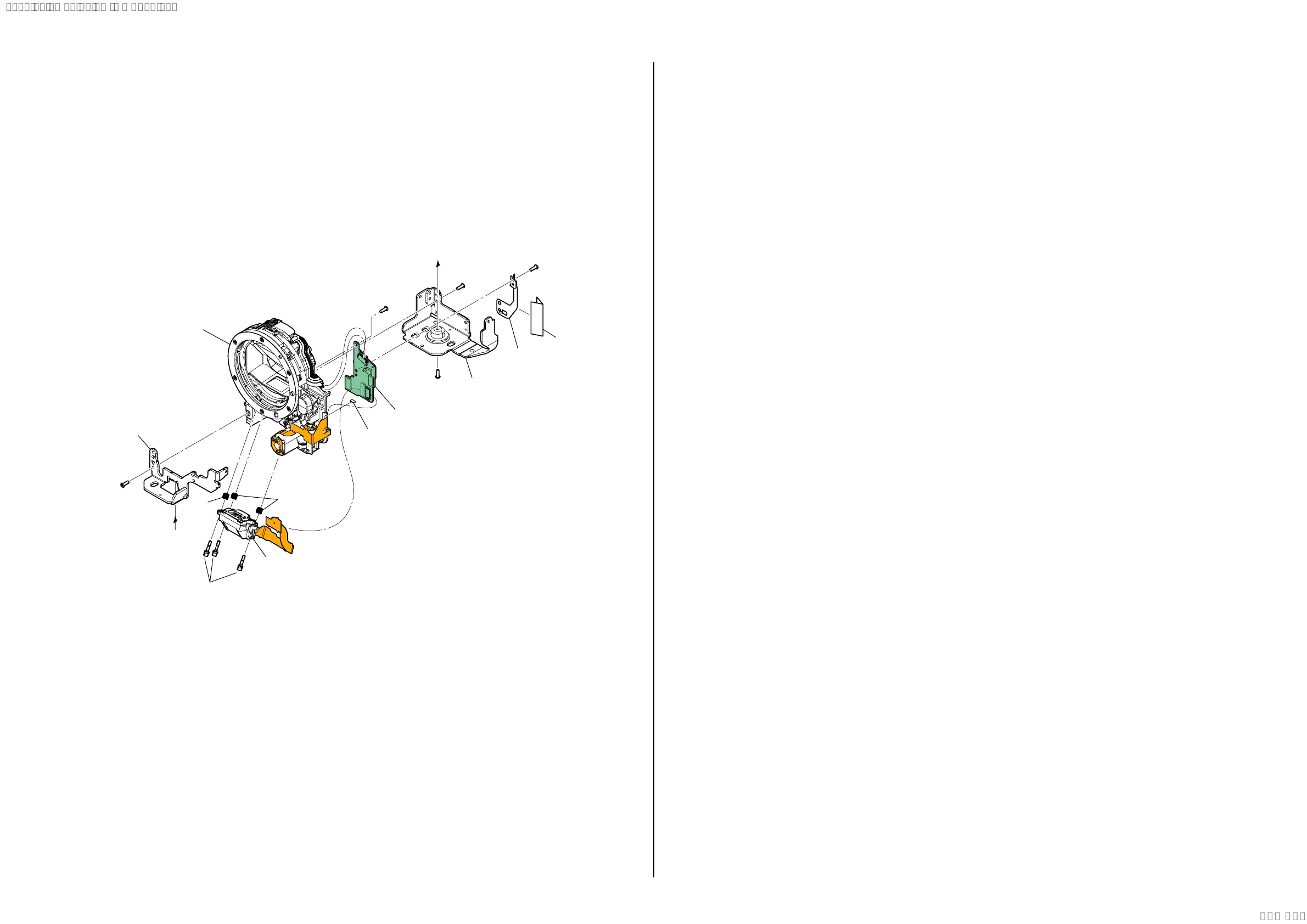

2-1-2. MAIN SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
51 4-296-525-01 BD TRIPOD REINFORCEMENT PLATE
52 2-693-420-01 SP, S ADJUSTMENT
53 A-1869-165-A ALX-8631 (Note 1, 3)
54 4-489-301-01 JS SPACER SHEET (Note 2)
55 A-1983-542-A GMA-1003 COMPL (SERVICE) (Note 3)
56 X-2588-224-1 BD TRIPOD BASE PLATE ASSY
57 4-479-254-01 EM E MOUNT GND PLATE
58 4-479-531-01 AFM FPC PROTECTION SHEET
#113 2-635-562-41 SCREW (M1.7)
#155 3-080-204-31 SCREW, TAPPING, P2
#207 4-191-605-01 S ADJUSTMENT SCREW (Note 1)
A
A
#155
#155
#155
#155
#113
51
54 (Note 2)
55 (Note 3)
56
57
58
3
4
2
1
Mirror Box Section
(See page 2-5)
#207 (Note 1)
53 (Note 1, 3)
52
52
5
Screw
#113: M1.7 X 5.0
(Black)
2-635-562-41
5.0
1.7
1.7
6.0
#155: M1.7 X 6.0 (Tapping)
(Black)
3-080-204-31
#207: M1.6 X 8.0
(Silver)
4-191-605-01
8.0
1.6
1. Remove the numerical order (1 to 5) in the left figure.
DISASSEMBLY
1 #155 X 1 2 #155 X 1 → #113 X 1
Back View
#155
Back View
#155
#113
Bottom View
3 #155 X 1
Front View
#155
4 #155 X 1 5 #207 X 3
Back View
#155
#207
Bottom View
Note 1: Refer to “Assembly-4: Notes on assembling the ALX-8631
(AF Module)” when assembling.
Note 2: Refer to “Assembly-5: Note on attaching the JS Spacer
Sheet” when assembling.
Note 1:
 組立時は“Assembly-4: Notes on assembling the ALX-8631
(AF Module)”を参照してください。
Note 2:
 組立時は“Assembly-5: Note on attaching the JS Spacer
Sheet”を参照してください。
Note
Note 3: When replacing this part, carry out adjustment. Refer to
“1-5. NOTE ON PART REPLACEMENT” for details.
Note 3:
 この部品を交換した場合は調整が必要です。詳しくは“1-5.
部品交換時の注意”を参照してください。
