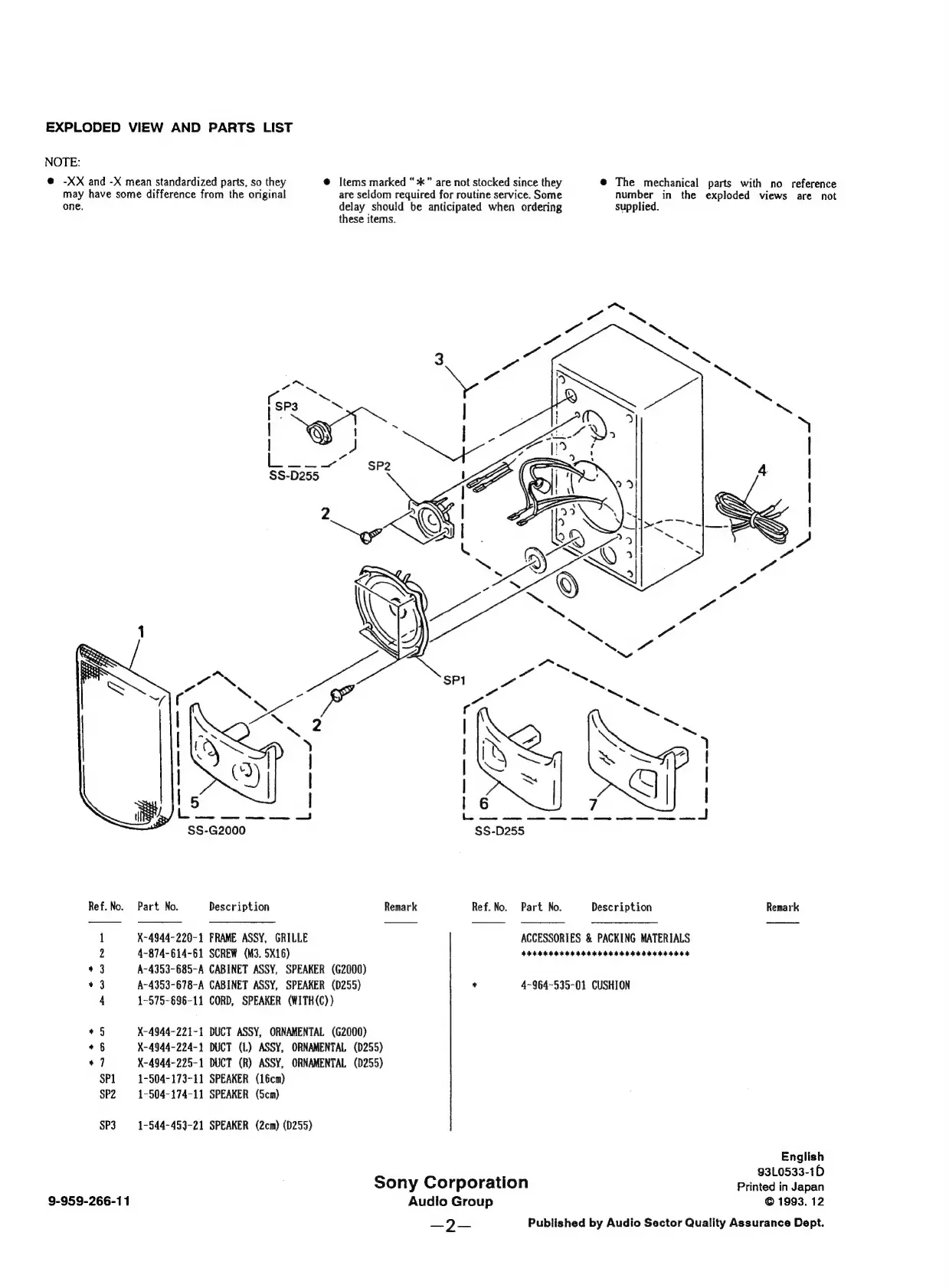

EXPLODED VIEW AND PARTS LIST
NOTE:
@ -XX and -X mean standardized parts, so they @ Items marked “**” are not stocked since they @ The mechanical parts with no reference
may have some difference from the original are seldom required for routine service. Some number in the exploded views are not
one. delay should be anticipated when ordering supplied.
these items.
1
A
wee aN es
C pd S
| \
[| SQ SY?
§)) >)
| |
Is |
A Enea eee re
SS-G2000 SS-D255
Ref.No. Part No. Description Remark Ref. No. Part No. Description Remark
1 X~4944-220-1 FRAME ASSY, GRILLE ACCESSORIES & PACKING MATERIALS
2 4~874-614-61 SCREW (M3. 5X16) PeETtrirtrr tt ttt ttt ttt tte tty
+3 A-4353-685-A CABINET ASSY, SPEAKER (62000)
+3 A-4353-678-A CABINET ASSY, SPEAKER (D255) + 4-964-535-01 CUSHION
4 1-575-696-11 CORD, SPEAKER (WITH(C))
+5 X-4944-221-1 DUCT ASSY, ORNAMENTAL (62000)
* 6 X-4944-224-1 DUCT (L) ASSY, ORNAMENTAL (D255)
+7 X-4944-225-1 DUCT (R) ASSY, ORNAMENTAL (D255)
SP1 1-504-173-11 SPEAKER (16cm)
SP2 —_1-504-174-11 SPEAKER (Scm)
SP3-1-544-453-21 SPEAKER (2cm) (D255)
English
93L0533-1D
Sony Corporation Printed in Japan
9-959-266-11 Audio Group © 1993. 12
—2— Published by Audio Sector Quality Assurance Dept.
