Sony LDI-D100BE - Page 24

4-72
4-73
4-74 E
– MA-324 (F) Board –
1 IC131 wa (R-OUT)
2 IC131 ql (G-OUT) 7 IC301 4 (H SYNC)
8 IC301 5 (V SYNC)
9 IC301 qg (SCLK)
qs IC1104, 1105, 1106 8 (RCK)
qd IC1201 ra (BO)
qf IC1201 el (GO)

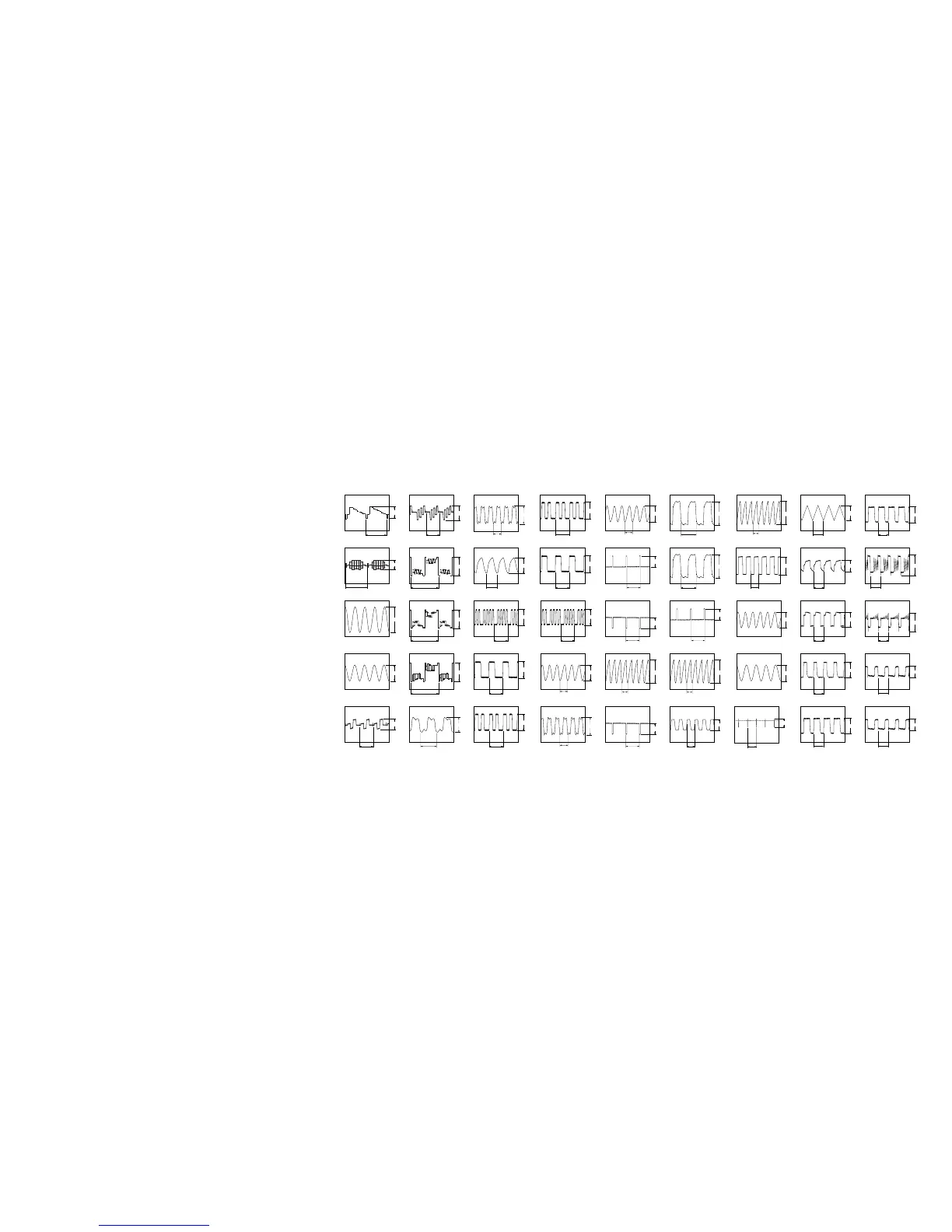

• Waveforms (Video Mode)
– YC-148 (F) Board –
1 IC1001 eh (Y)
2 IC1001 ef (C)
3 IC1001 wl (PAL FSC)
4 IC1001 1 (32 FHVCO IN 1)
5 IC1001 qd (R-Y)
6 IC1001 qf (B-Y)
7 Q1027 (Base)
8 Q1030 (Base)
9 Q1033 (Base)
q; IC1101, 1102, 1103 qs (CLK)
qa IC1105, IC1106 qj (WCK)
– DD-107 (F) Board –
1 IC701 qj
3 IC131 qg (B-OUT)
q; IC301 wj (XCLP1)
6 IC301 3 (CK12), IC302 wd (CLK) qa IC302 es (CLKH)
qg IC1201 ej (RO)
4 IC301 yl (RCK)
5 IC301 ua (WCK)
qs IC302 ea (CLKL) qj IC501 ea (H SYNC2)
qk IC501 r; (20MHZ OUT)
ql IC501 ts (32KHZ IN)
qd IC302 9 (SYNC)
w; IC501 ys (XV SYNC)
qh IC401 wf (SCLK)
qf IC302 qa (SCLK)
qg IC401 8 (DOCKI)
2 IC701 1 (CA 1)
3 IC701 rk (CA 2)
4 IC701 rj
5 IC701 ra
7 Q701 (Collector)
8 Q701 (Base)
9 Q703 2 (Base)
0 Q704 2 (Base)
6 IC701 ek
1 Vp-p
H
712 mVp-p
H
1.1 Vp-p
H
508 mVp-p
500 kHz
416 mVp-p
4.433619 MHz
H
432 mVp-p
952 mVp-p
H
944 mVp-p
H
944 mVp-p
H
6.4 Vp-p
65.6 ns
6.6 Vp-p
65.6 ns
1.3 Vp-p
H
1.3 Vp-p
H
1.3 Vp-p
H
6.2 Vp-p
32.6 ns
492 mVp-p
H
497 mVp-p
H
495 mVp-p
H
6.1 Vp-p
32.6 ns
5.8 Vp-p
26.5 ns
5 Vp-p
30.6 µ s
4.1 Vp-p
800 ns
5 Vp-p
20 ms
3.2 Vp-p
62.4 µ s
3.9 Vp-p
32.6 ns
1.1 Vp-p
33 ns
1.5 Vp-p
33 ns
5.8 Vp-p
64 µ s
4.1 Vp-p
800 ns
4.1 Vp-p
31.8 ns
2.1 Vp-p
32.768 kHz
4.9 Vp-p
128 µ s
4.2 Vp-p
800 ns
730 mVp-p
2.26
µ s
3.9 Vp-p
2.14
µ s
2.4 Vp-p
2.21
µ s
2.5 Vp-p
2.21
µ s
2.5 Vp-p
2.21
µ s
1.1 Vp-p
2.2 µ s
1.2 mVp-p
2.2
µ s
1 Vp-p
2.22
µ s
2.4 Vp-p
2.21
µ s
4.9 Vp-p
20 ms
注：波形図は，対アース間をカラーバー信号
入力状態で測定。
Note: Waveforms are dc with respect to
ground in color-bar signal input.
6 Vp-p
20 MHz
18 Vp-p
2.22
µ s
