Sony LDI-D100BE - Printed Wiring Board - DD-107 (F) Board -; Schematic Diagram - DD-107 (F) Board

LDI-D100BE
(500 mA)
(500 mA)
4-65
4-66
4-67
4-68
4-69

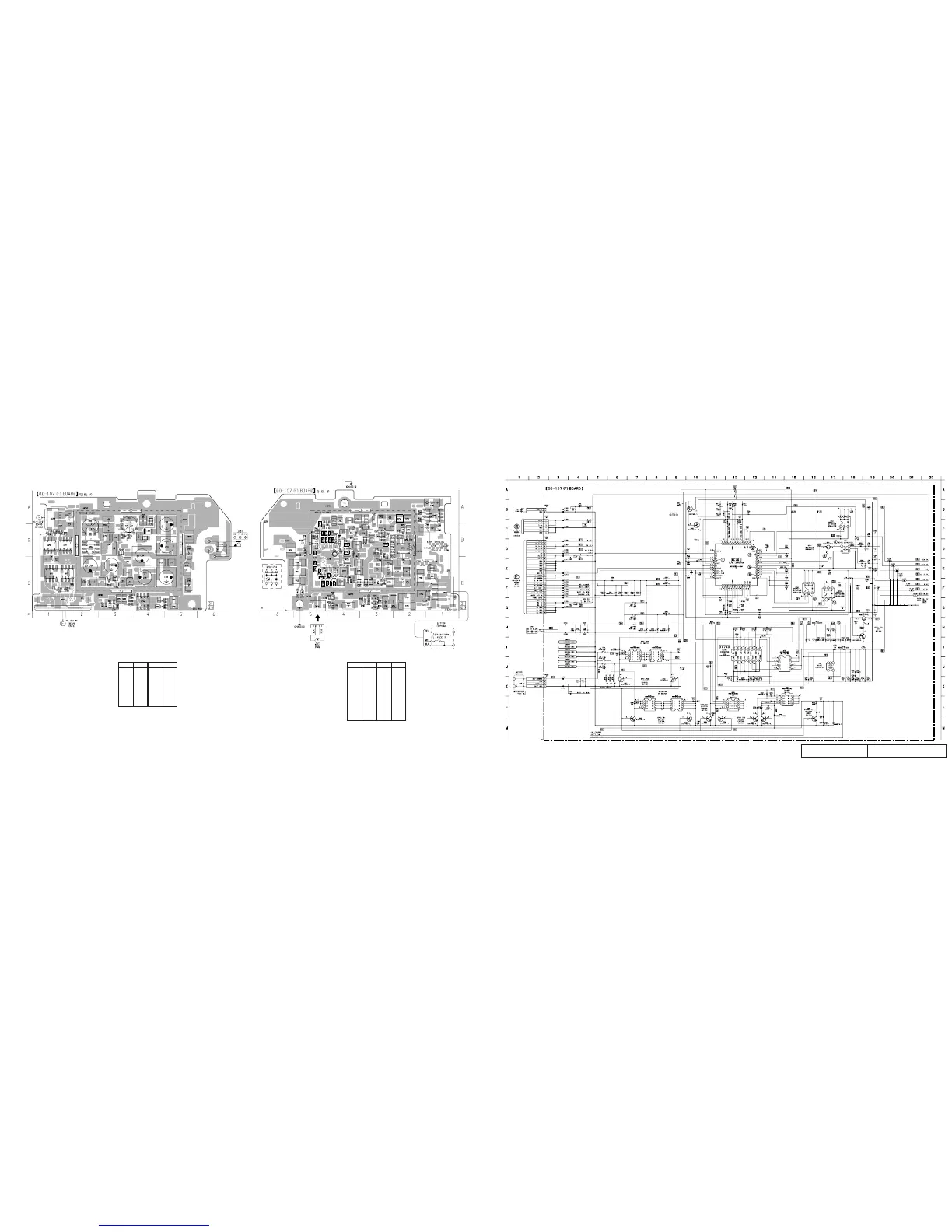

4-25. PRINTED WIRING BOARD – DD-107 (F) Board – • See page 4-13 for Circuit Boards Location.
4-26. SCHEMATIC DIAGRAM – DD-107 (F) Board – • See page 4-74 for Waveforms.
Ref. No. Location
Ref. No. Location
• Semiconductor Location (Side A)
Ref. No. Location
Ref. No. Location
• Semiconductor Location (Side B)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
0 印の部品，または 0 印付きの点線で囲まれた部品
は，安全性を維持するために重要な部品です。
従って交換時は，必ず指定の部品を使用して下さい。
D781 C-3
D783 C-5
D784 B-5
D785 C-5
Q705 B-2
Q706 B-3
Q707 B-3
Q753 C-3
Q781 C-2
Q782 C-1
Q783 B-1
Q784 B-1
Q787 C-5
Q788 C-5
Q789 C-3
Q791 C-2
Q792 C-1
Q793 B-1
Q794 B-1
Q796 C-4
D701 B-3
D702 A-3
D751 C-2
D752 A-3
D755 B-2
D782 C-3
D786 C-2
D787 C-4
D788 C-4
D789 C-3
D790 C-5
D791 B-5
D792 C-5
D793 C-3
D794 C-3
D795 C-3
D796 C-4
IC701 C-4
IC703 B-2
Q701 B-4
Q702 B-5
Q703 B-4
Q704 C-4
Q751 C-3
Q785 A-2
Q786 A-2
Q795 A-1
(Page
4-28)
(Page 4-31)
(Page 4-18)
(Page
4-41)
