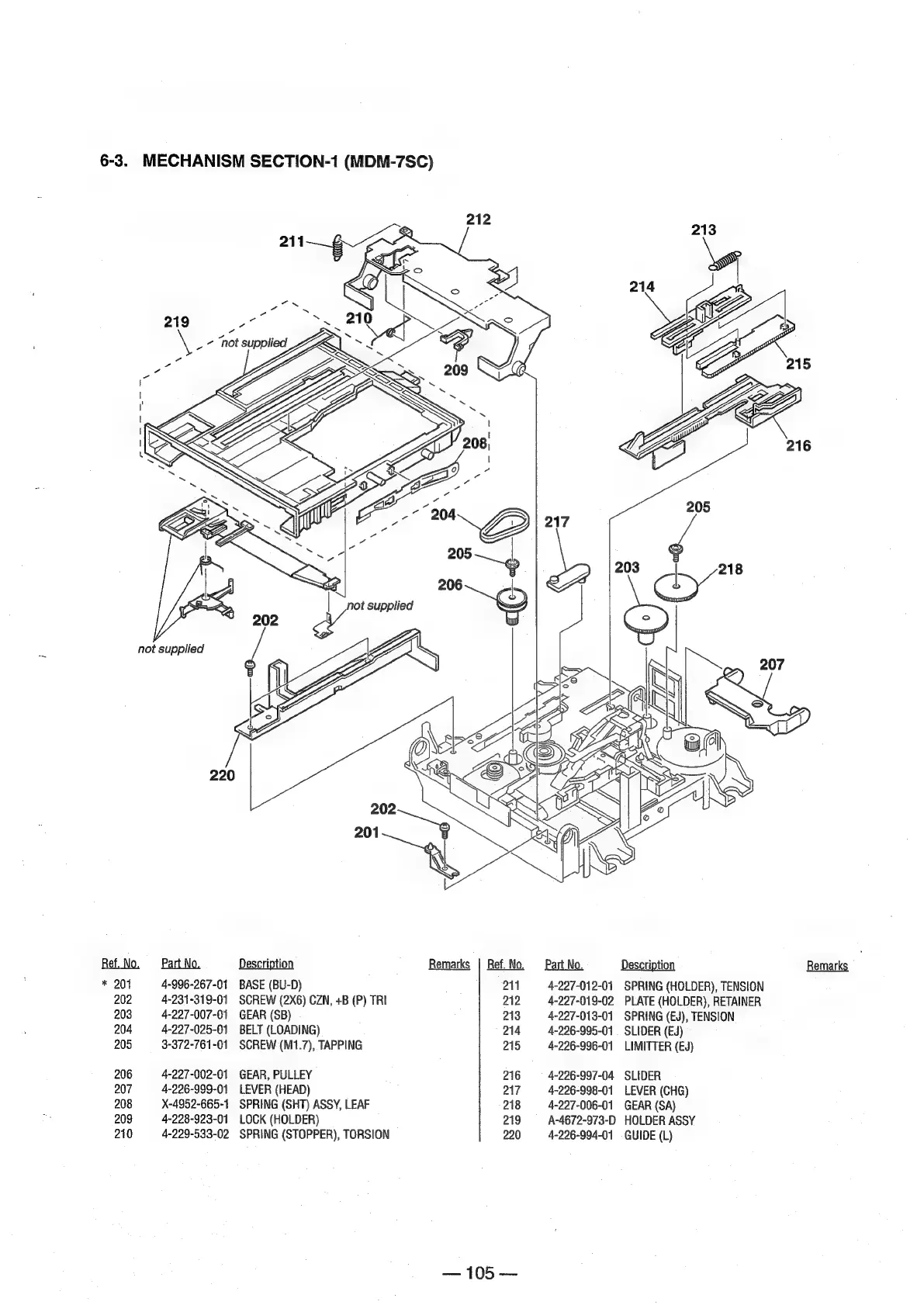

6-3. MECHANISM SECTION-1 (MDM-7SC)
Ref. No.
*
204
202
203
204
205
206
207
208
209
210
Part No.
4-996-267-01
4-231-319-01
4-227-007-01
4-227-025-01
3-372-761-01
4-227-002-01
4-226-999-01
X-4952-665-1
4-228-923-01
4-229-533-02
212
Description Remarks
BASE (BU-D)
SCREW (2X6) CZN, +B (P) TRI
GEAR (SB)
BELT (LOADING)
SCREW (M1.7), TAPPING
GEAR, PULLEY
LEVER (HEAD)
SPRING (SHT) ASSY, LEAF
LOCK (HOLDER)
SPRING (STOPPER), TORSION
Ref, No.
211
212
213
214
215
216
217
218
219
220
— 105 —
Part No.
4-227-012-01
4-227-019-02
4-227-013-01
4-226-995-04
4-226-996-01
Description
SPRING (HOLDER), TENSION
PLATE (HOLDER), RETAINER
SPRING (EJ), TENSION
SLIDER (EJ)
LIMITTER (EJ)
4-226-997-04
4-226-998-01 LEVER (CHG)
4-227-006-01 GEAR (SA)
A-4672-973-D HOLDER ASSY
4-226-994-01 GUIDE (L)
SLIDER
Remarks
