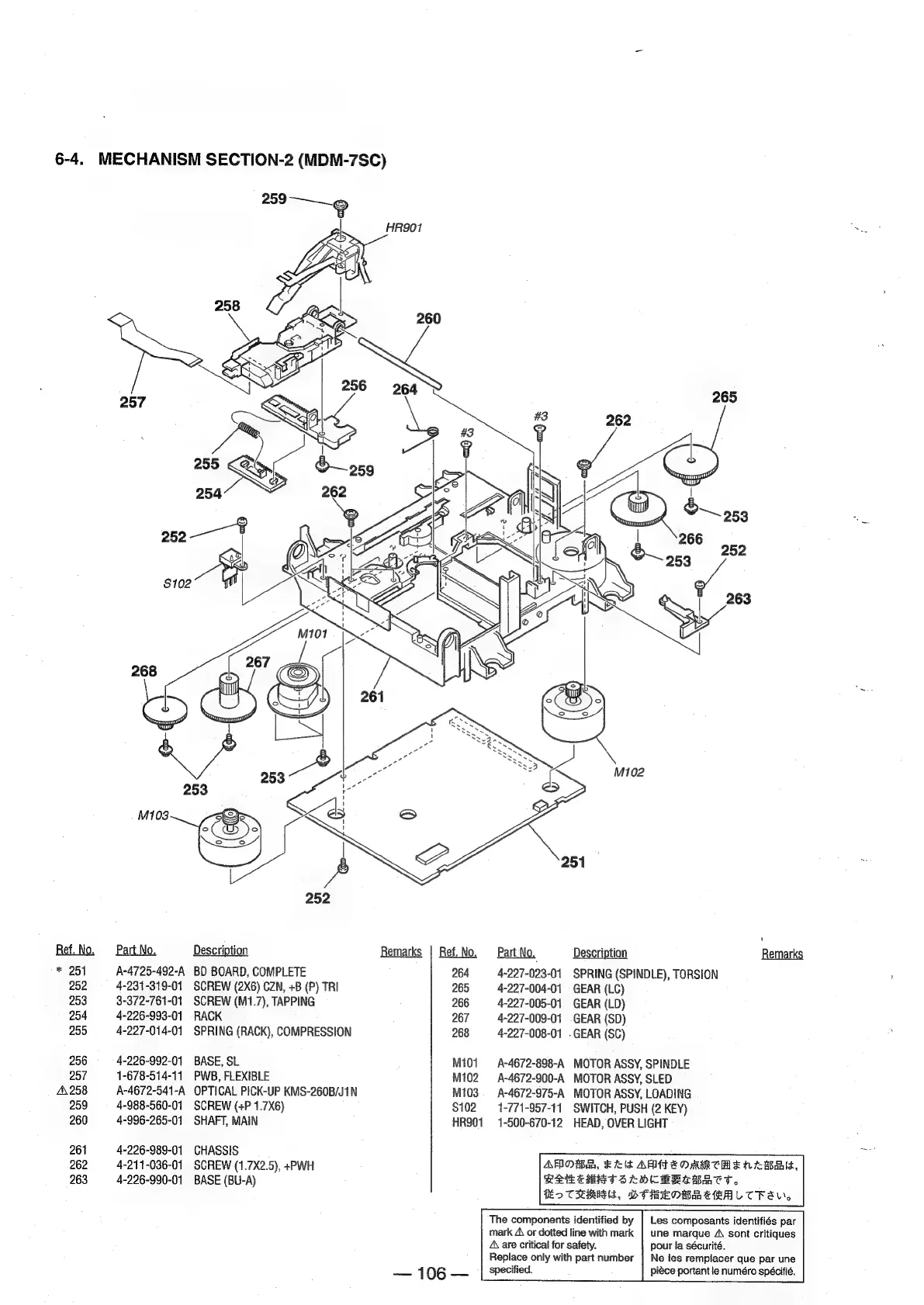

6-4. MECHANISM SECTION-2 (MDM-7SC)
Ref, No,
* 251
252
253
254
259
256
257
AX 258
259
260
261
262
263
Part No.
A-4725-492-A
4-231-319-01
3-372-761-01
4-226-993-01
4-227-014-01
4-226-992-01
1-678-514-11
A-4672-541-A
4-988-560-01
4-996-265-01
4-226-989-01
4-211-036-01
4-226-990-01
| HR901
Description Remarks
BD BOARD, COMPLETE
SCREW (2X6) CZN, +B (P) TRI
SCREW (M1.7), TAPPING
RACK
SPRING (RACK), COMPRESSION
BASE, SL
PWB, FLEXIBLE
OPTICAL PICK-UP KMS-260B/J1N
SCREW (+P 1.7X6)
SHAFT, MAIN
CHASSIS
SCREW (1.7X2.5), +PWH
BASE (BU-A)
Ref. No.
264
265
266
267
268
M101
M102
M103
$102
HR90
— 106 —
Part No.
4-227-023-01
4-227-004-01
4-227-005-01
4-227-009-01
4-227-008-01
Description
SPRING (SPINDLE), TORSION
GEAR (LC)
GEAR (LD)
GEAR (SD)
GEAR (SC)
Remarks
A-4672-898-A
A-4672-900-A
A-4672-975-A
1-771-957-11
1 4-500-670-12
MOTOR ASSY, SPINDLE
MOTOR ASSY, SLED
MOTOR ASSY, LOADING
SWITCH, PUSH (2 KEY)
HEAD, OVER LIGHT
AFIOBBan, KE iotd ARATE OMAR CHE NEB,
RECHT SLOLEEERATT
fio TRF, DPREOBAEEAL TRE
The components identified by
mark A\ or dotted line with mark
A\ are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque A\ sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
