Sony MEX-D30 - Internal Component Removal; Sub Panel and Main Board Removal

MEX-D30/V30
9

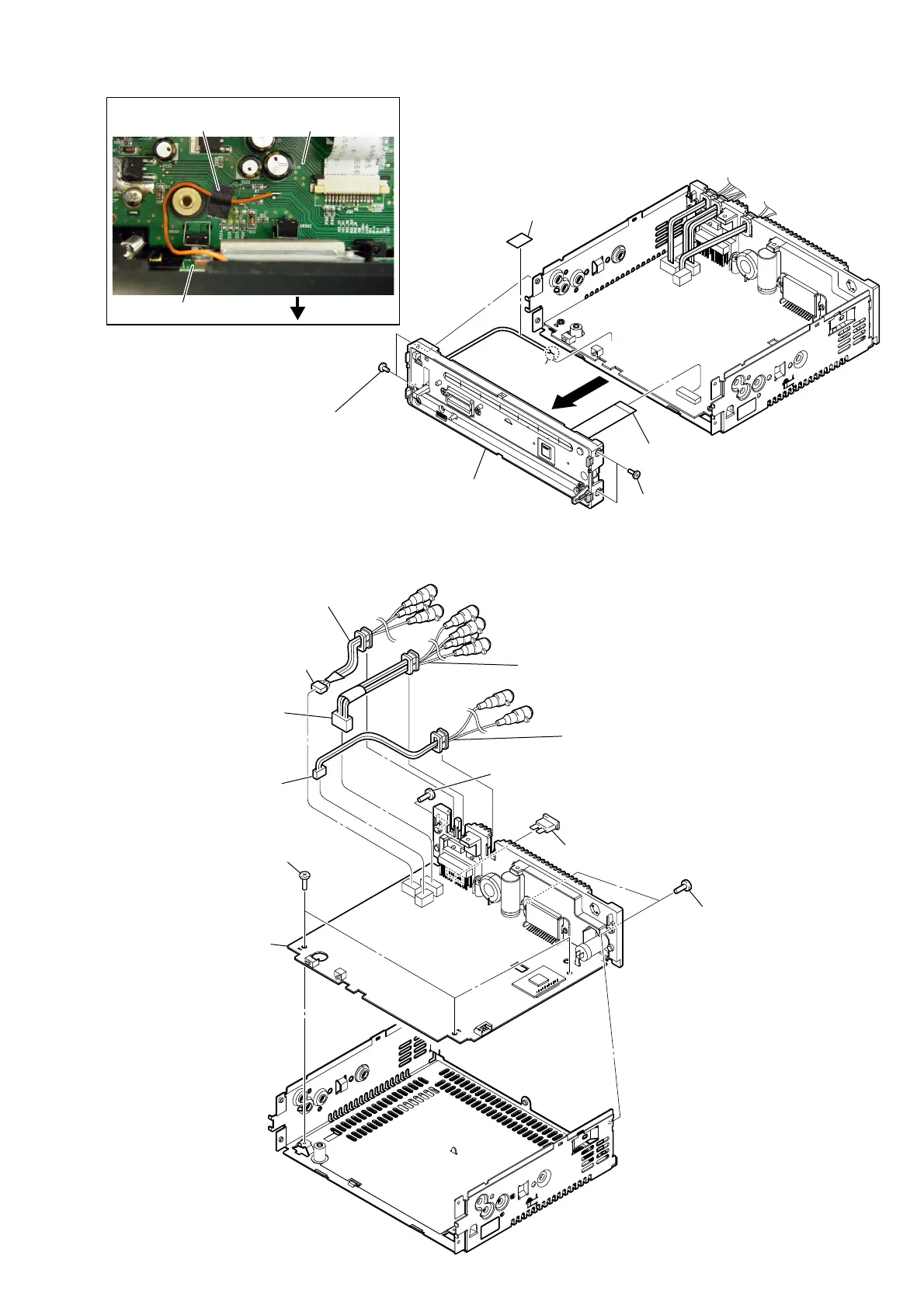

3-5. MAIN BOARD
3-4. SUB PANEL COMPLETE ASSY
3 two screws
(BTT2.6 u 3) (MEX-D30)
(M2.6 u 3) (MEX-V30)
5 FFC (S. panel to M. MT, SJ-V049-0)
(CON1)
6 sub panel complete assy
3 two screws
(BTT2.6 u 3) (MEX-D30)
(M2.6 u 3) (MEX-V30)
2 Remove
the solder.
1 fixing cloth
sub panel complete assy
4
:LUHVHWWLQJ
front side
fixing cloth MAIN board
8 screw
(BTT M3) (MEX-D30)
(M3 u 8) (MEX-V30)
8 two screws
(BTT M3) (MEX-D30)
(M3 u 8) (MEX-V30)
9 three screws
(BTT2.6 u 5.2) (MEX-D30)
(M2.6 u 5) (MEX-V30)
1 fuse (blade type) (auto fuse)
(10A/32V) (FU1)
2 connector
(CON402)
4 connector
(CN7)
6 connector
(CON5)
3 cord (V/A out) with bracket
(video out, audio line output)
(CNJ1)
5 cord (audio) with bracket
(audio line input, audio line output)
(CNJ2)
7 cord (video in) with bracket
(video in, camera in)
(CNJ3)
0 MAIN board
Ver. 1.2
