Sony MHC-DP700 - Getting Started; Hooking up the System

7
Getting Started
+
–
+
R
L
6
5
3 3 2
2 2
1
1 1
4
3
Getting Started

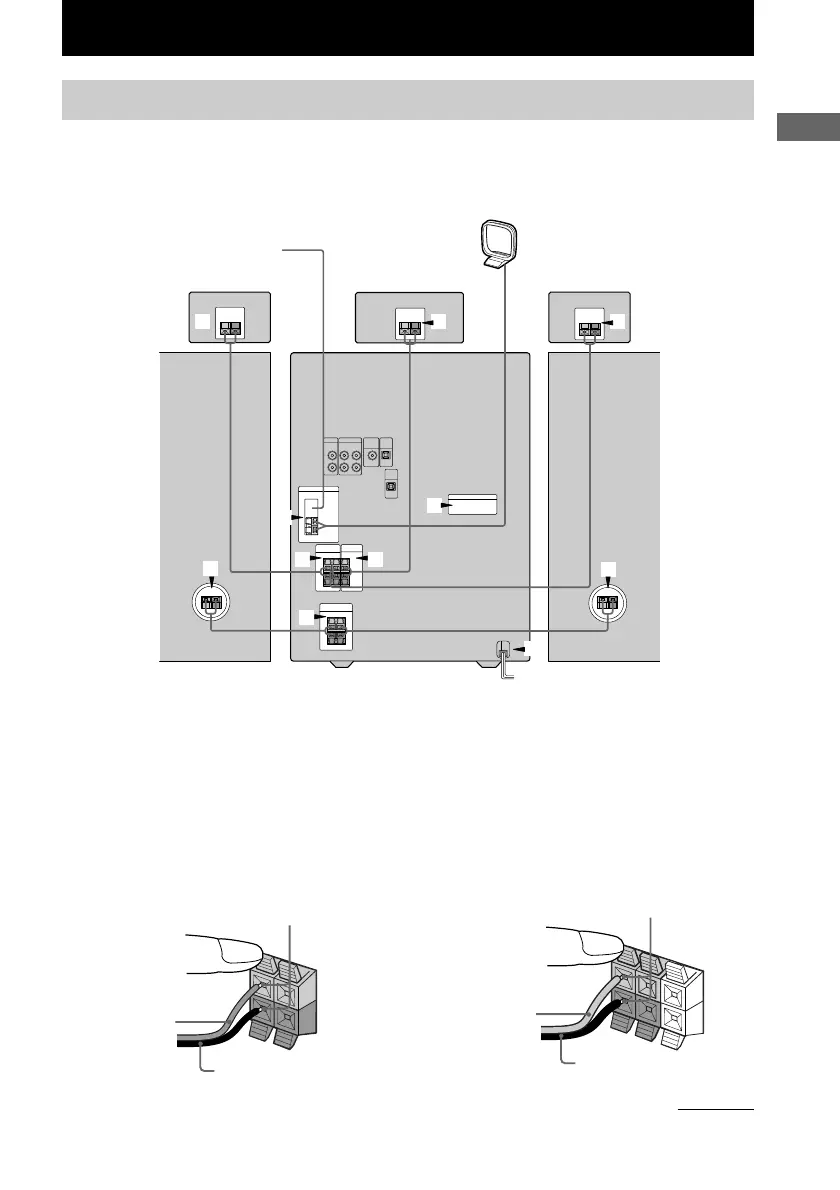

Hooking up the system
Do the following procedure 1 to 6 to hook up your system using the supplied cords and
accessories.
AM loop antenna
Front speaker
(Left)
Front speaker
(Right)
FM antenna
Rear speaker*
(Right)
Rear speaker*
(Left)
* MHC-DP800AV only.
Center speaker*
Insert only the stripped portion.
Black/Stripe (#)
Red/Solid (3)
–
R
L
+
1 Connect the front speakers.
Connect the speaker cords to the SPEAKER
jacks (MHC-DP700) or FRONT SPEAKER
jacks (MHC-DP800AV).
2 Connect the rear speakers.
(MHC-DP800AV only)
Connect the speaker cords to the REAR
SPEAKER jacks.
Insert only the stripped portion.
Black/Stripe (#)
Gray/Solid (3)
continued
