Getting Started
Hooking up the system

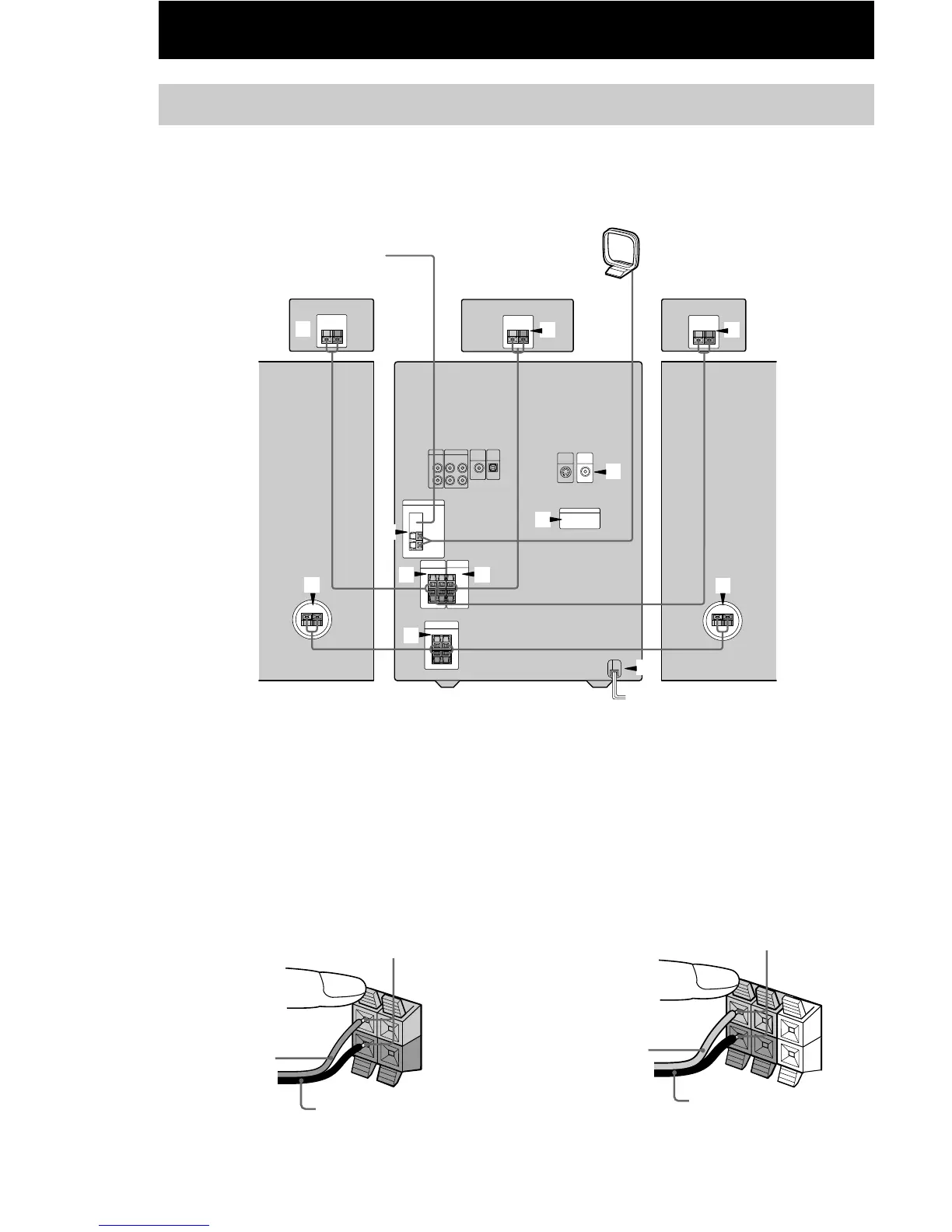

Do the following procedure 1 to 8 to hook up your system using the supplied cords and
accessories.
AM loop antenna
Front speaker
(Left)
Front speaker
(Right)
FM antenna
Rear speaker*
(Right)
Rear speaker*
(Left)
Center speaker*
Insert only the stripped portion.
Black/Stripe (#)
Red/Solid (3)
–
R
L
+
1 Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks (MHC-DP1000D) or
SPEAKER jacks (MHC-DP900D).
2 Connect the rear speakers.
(MHC-DP1000D only)
Connect the speaker cords to the REAR
SPEAKER jacks.
Insert only the stripped portion.
Black/Stripe (#)
Gray/Solid (3)
* MHC-DP1000D only.
