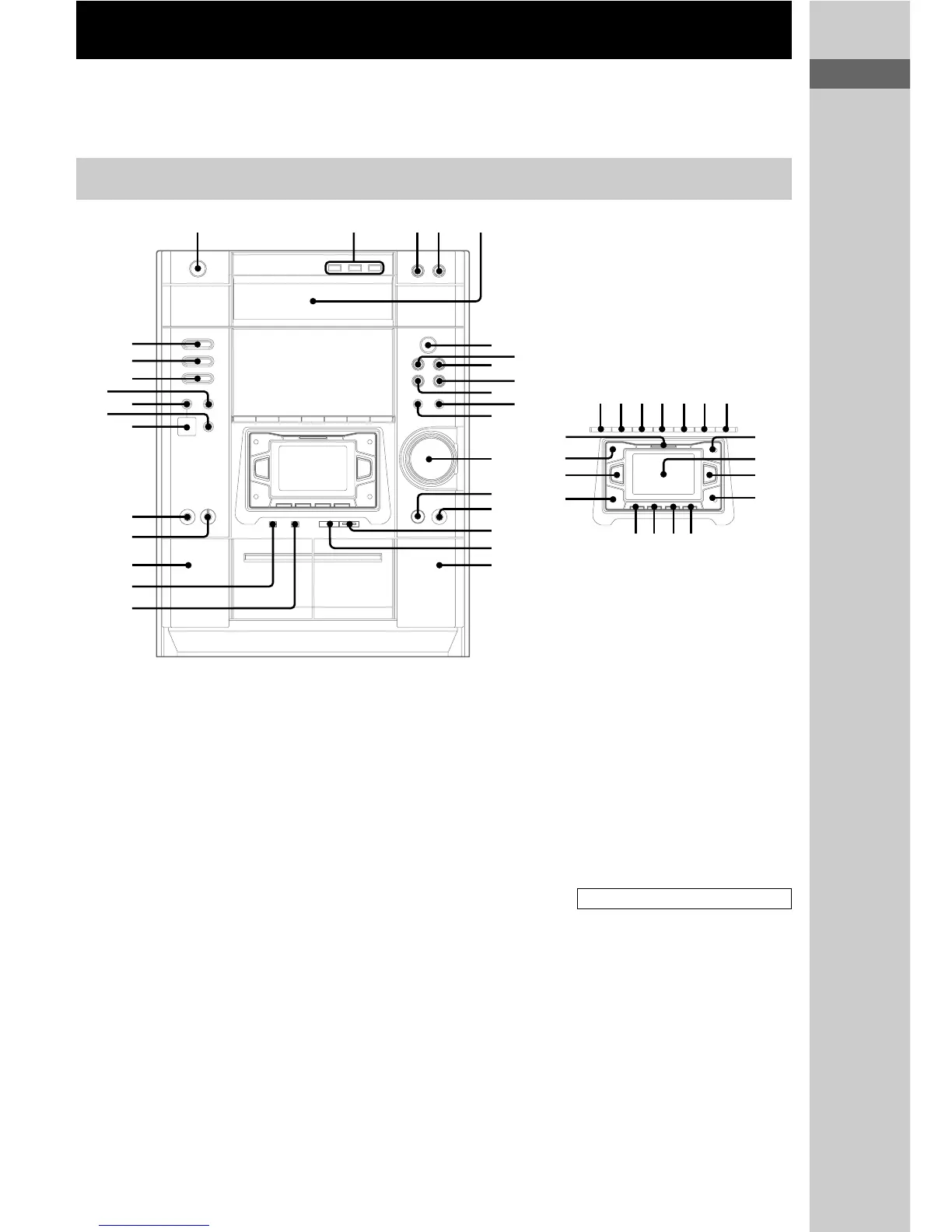

Parts Identification
7
12345
6
8
q;
qs
qd
qf
qg
qh
qj
w;
ql
wa
ws
wd
wf
wh
wj
wk
wl
wg
7
9
qa
qk
e;
eaesedefegeh
rk
rl
rj
rh
rg
rfrdrs
ra
ej
el
ek
r;
2CH/MULTI rs (24, 46)
CD SYNC HI-DUB qj (43, 44)
CLOCK/TIMER SET ed (15, 45,
51)
DECK A Z wa (42)
DECK B Z qk (42)
digipad el (9, 24, 40, 47)
DIGITAL wh (52)
DIGITAL IN (OPTICAL) jack
wf (52)
DIRECTION eg (42–44, 50)
DISC 1–3 2 (23, 24)
DISC SKIP EX-CHANGE 3
(23, 24)
Disc tray 5 (23)
DISPLAY ea (16, 29, 30)
DOLBY NR eh (42–44)
DSP EDIT rj (47)
DVD e; (12, 25, 26, 34, 43, 44)
DVD DISPLAY eg (17, 28, 30)
DVD MENU ql (25)
EFFECT rd (47)
ENTER r; (14, 15, 25–27, 31,
32, 34–41, 44, 45, 47, 51)
FM MODE eh (41)
GAME wg (52)
GAME MODE rh (47)
GROOVE rf (46)
IR receptor qf
KARAOKE PON (Except for
North American and European
models) es (49)
MD (VIDEO) wj (52)
MIC jack (Except for North
American and European
models) wd (49)
MIC LEVEL control (Except for
North American and European
models) ws (49)
MOVIE MODE ek (47)
MULTI CHANNEL DECODING
indicator rl (46)
MUSIC MODE rk (47)
P FILE rg (48)
PHONES jack qg
PLAY MODE ej (23, 26, 27, 44)
PTY (European model only) eg
(41)
REC PAUSE/START qh (43, 44,
50)
REPEAT eh (28, 29)
SPECTRUM (North American
and European models only) es
(49)
TAPE A/B wk (42, 43)
TIMER SELECT ef (45, 51)
TITLE w; (25)
TOOL MODE ra (47)
TUNER/BAND wl (40)
TUNER MEMORY ej (40)
VOLUME control qd
BUTTON DESCRIPTIONS
@/1 (power) 1
Z OPEN/CLOSE (disc tray) 4
nN (play) 6
X (pause) 7
x (stop) 8
. (go back) q;
> (go forward) 9
m/– (rewind) qs
M/+ (fast forward) qa
Parts Identification
Main unit
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
