Getting Started

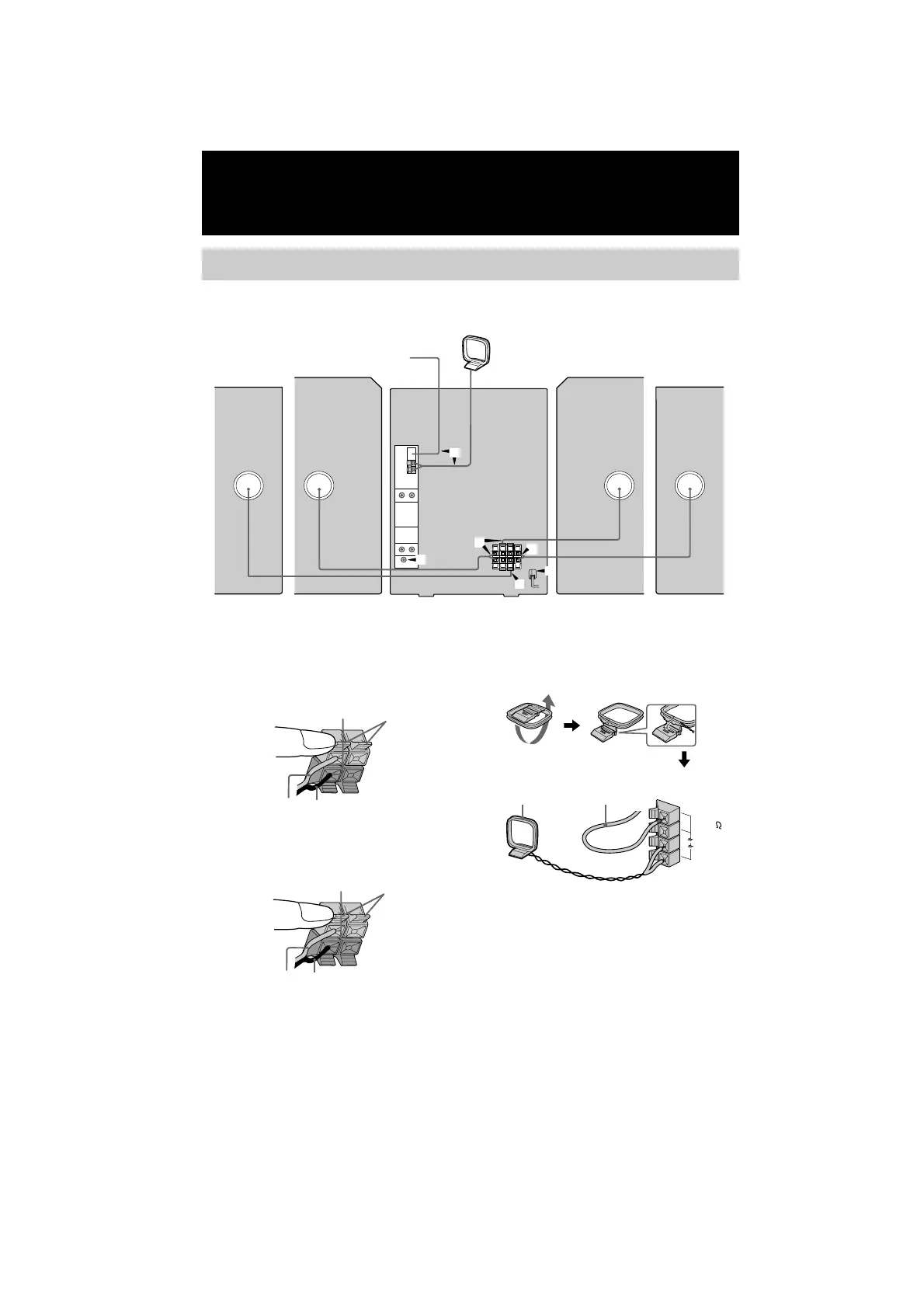

Hooking up the system
Do the following procedure 1 to 6 to hook up your system using the supplied cords and
accessories.
AM loop antenna
Front speaker
(Left)
Front speaker
(Right)
FM antenna
5
3
1
2
2
4
Surround
speaker (Left)
1 Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks.
2 Connect the surround speaker.
Connect the speaker cords to SURROUND
SPEAKER jacks.
Note
Keep the speaker cords away from the antennas to
prevent noise.
LR
_
+
3 Connect the FM and AM antennas.
Set up the AM loop antenna, then connect
it.
Insert only the stripped portion.
Black/Stripe (#)Red/Solid (3)
AM loop antenna
Extend the FM lead
antenna horizontally.
FM75
AM
Surround
speaker (Right)
Black/Stripe (#)Blue/Solid (3)
Insert only the stripped portion.
Red
LR
_
+
Blue
Main Unit
