Sony MHC-V02 - Speaker Cabinet Exploded View

34
MHC-V02

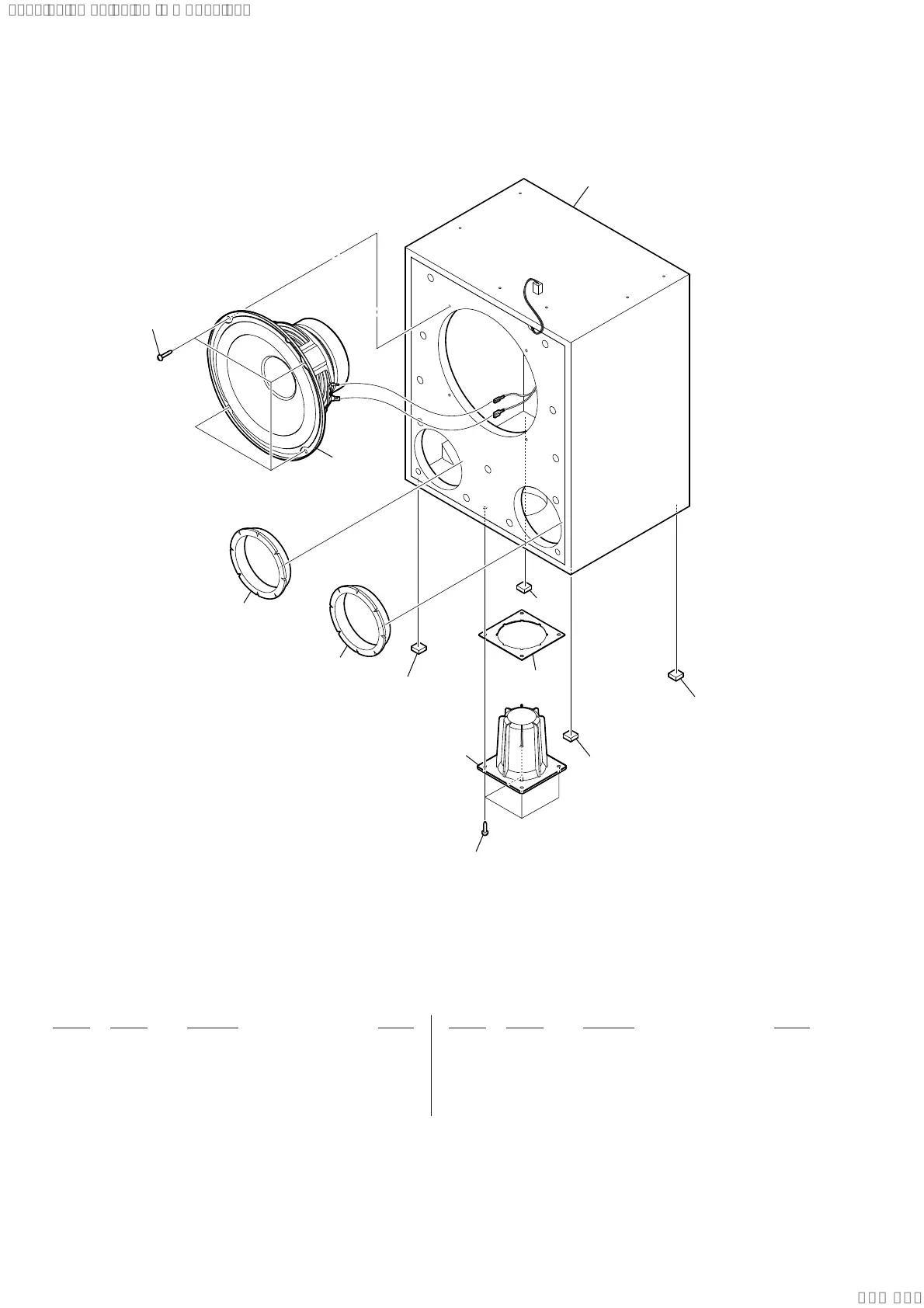

7-5. SPEAKER CABINET SECTION
201 4-229-966-02 SCREW (4X16), +BV TAPPING
202 4-745-014-01 PACKING, DUCT
203 4-874-614-12 SCREW (1) (3.5X14), TAPPING
204 4-744-698-01 BRACKET, TRIPOD
205 4-747-179-01 FOOT, RUBBER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SP3
ns
ns
201
205
203
202
202
205
204
205
205
SP3 1-859-350-11 LOUDSPEAKER 18CM (Woofer)
ns not supplied
