Sony MHC-V02 - Disassembly Procedures; Disassembly Flowchart

MHC-V02
8
2-2. LEFT, RIGHT PANEL
(Page 9)
2-4. MOTHERBOARD BOARD
(Page 11)
2-6. FRONT PANEL (VITO) SECTION
(Page 13)
SET
2-5. SMPS BOARD,
BOTTOM CHASSIS SECTION
(Page 12)
2-3. TOP PANEL (VITO) SECTION,
REAR PANEL
(Page 10)
2-7. LOUDSPEAKER 18CM (WOOFER)
(SP3)
(Page 14)

JIG
When disassembling the unit, use the following
jig for speaker removal.
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL
Note: Disassemble the unit in the order as shown below
.

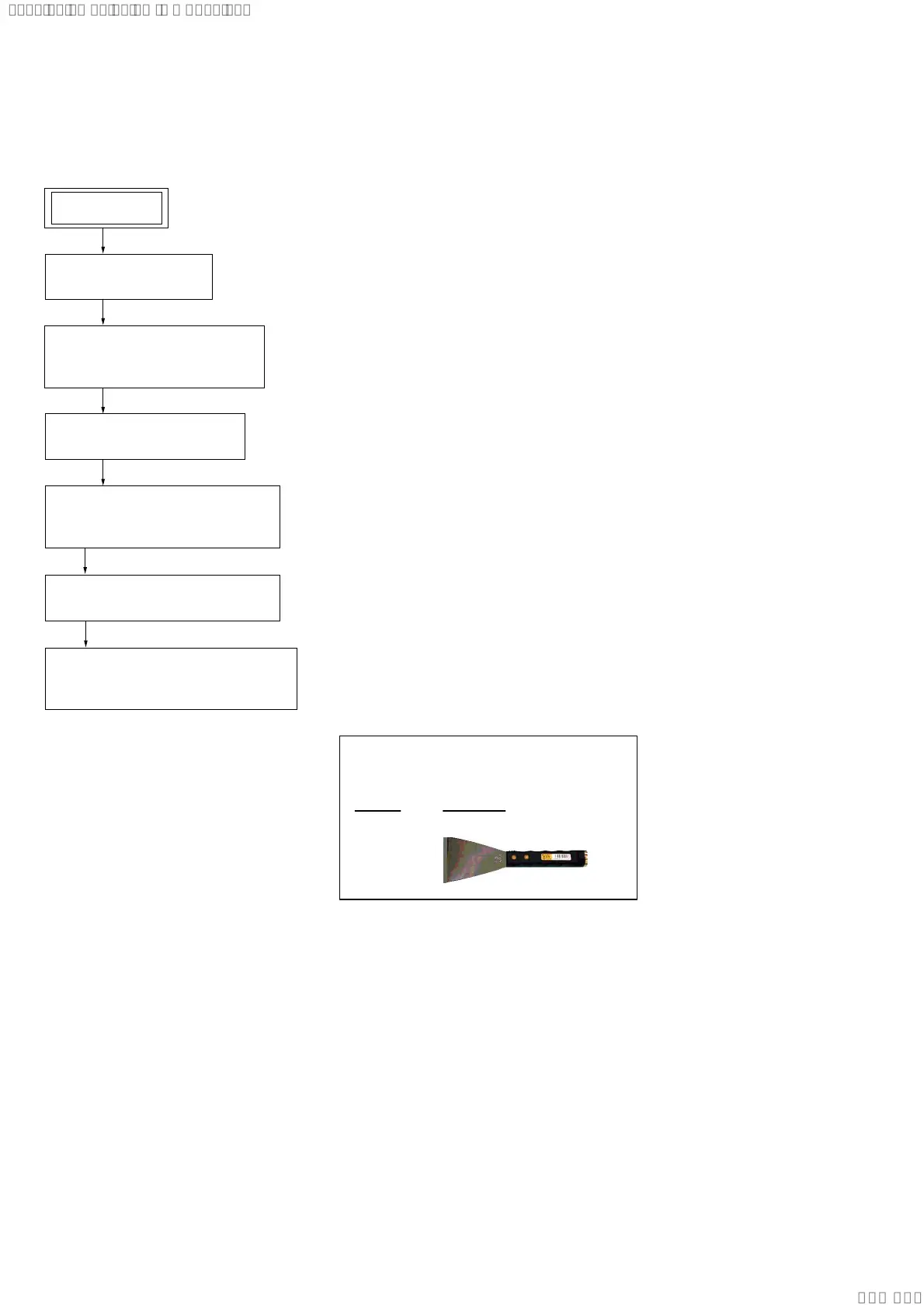

2-1. DISASSEMBLY FLOW
SECTION 2
DISASSEMBLY
SYSSET
