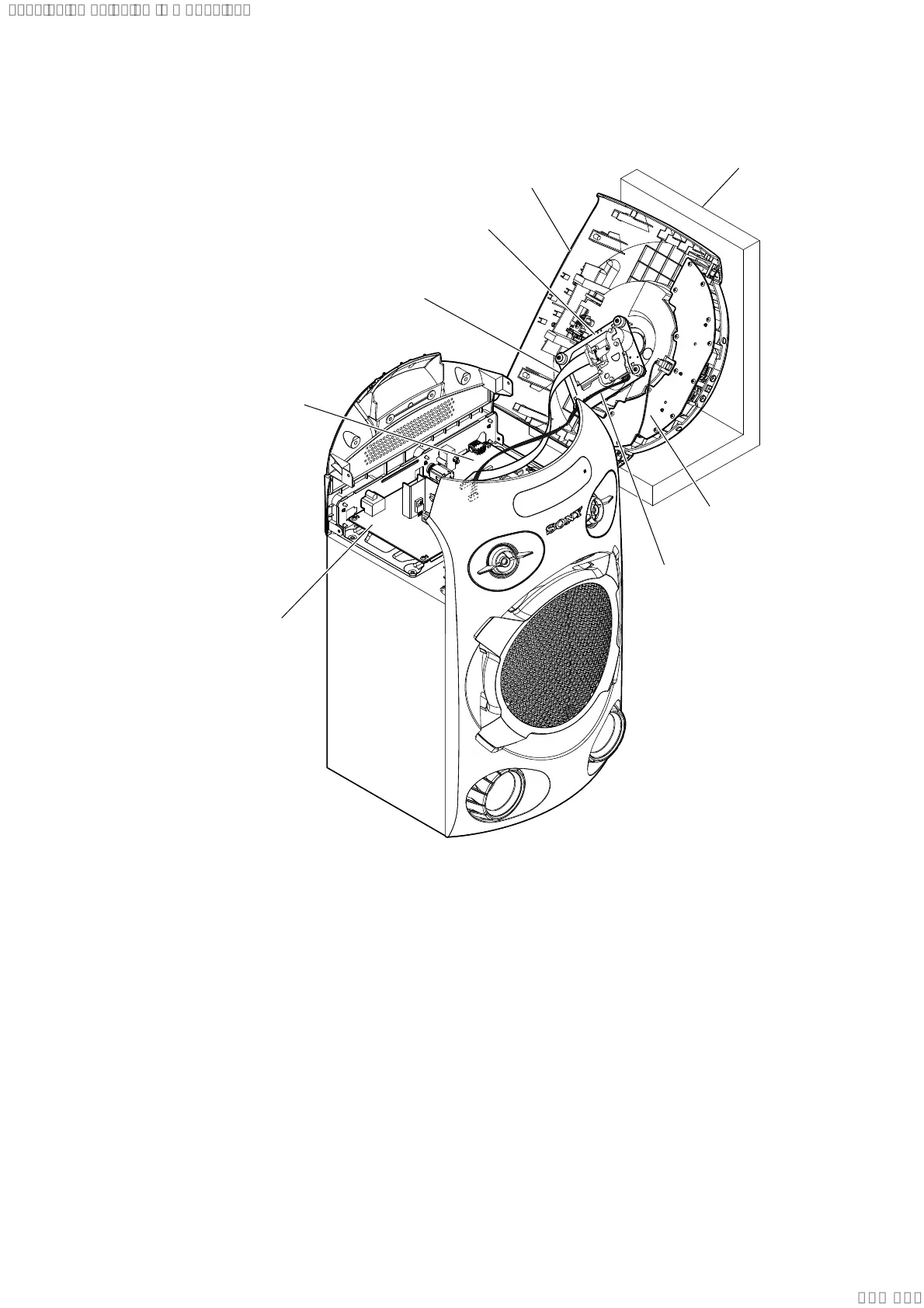

SERVICE POSITION
optical pickup
Connect FFC extension
(1-002-940-11) from
MOTHERBOARD to CDM.
Connect wire extension
(1-002-941-11) from
MOTHERBOARD to CDM.
top panel (VITO) section
PANEL board
SMPS board
MOTHERBOARD board
stand
SYSSET
