130
Resizer
The resizer is a function that applies effects, such as image
reduction/enlargement, movement, rotation, and changes
in aspect ratio, to the generated key.
The following operations are available.
• Two-dimensional transforms of keys (see page 130)
• Key rotation on the X- or Y-axis (see page 132)
• Resizer interpolation settings (see page 133)
• Resizer crop/border settings (see page 133)
• Resizer CG border settings (see page 135)
• Resizer effect settings (see page 136)
(wide key border, drop shadow, edge enhance, mosaic,
defocus, mask)
• Key freeze setting (see page 138)
This section describes setting the resizer of key 1 on the
M/E-1 bank as an example.
• The image of the key manipulated by resizer has a one-
frame delay.
• Some effects of resizer are different from what you
would expect of DME effects.
• There are restrictions on the combined use of resizer
effects themselves and use with DME wipes (see
page 136)
.
• You cannot use DME effects on a key for which the
resizer function is enabled. When one of the three
functions – resizer, DME wipe and DME effects – is
enabled, the other two are disabled.
Two-Dimensional Transforms and
Rotation of Keys
When the screen aspect ratio is 4:3 in HD format, reducing
an image using the resizer reduces the 16:9 image as-is
with the added image portions on the left and right sides.
Use the crop function as required to extract the 4:3 image.
Reducing, enlarging, rotating, and moving
keys (menu)
1
In the M/E-1 >Key1 >Resizer menu (1115), press
[Resizer], turning it on.
2
Set the following parameters.
a) When [X] is selected in the <Rotation> group in the Resizer
>Rotation menu (1115.5).
b) When [Y] is selected in the <Rotation> group in the Resizer
>Rotation menu (1115.5).
Reducing, enlarging, rotating, and moving
keys (key control block)
For details about buttons and parameters on the key
control block, see “Key Operations (Key Control Block)”
(page 124).

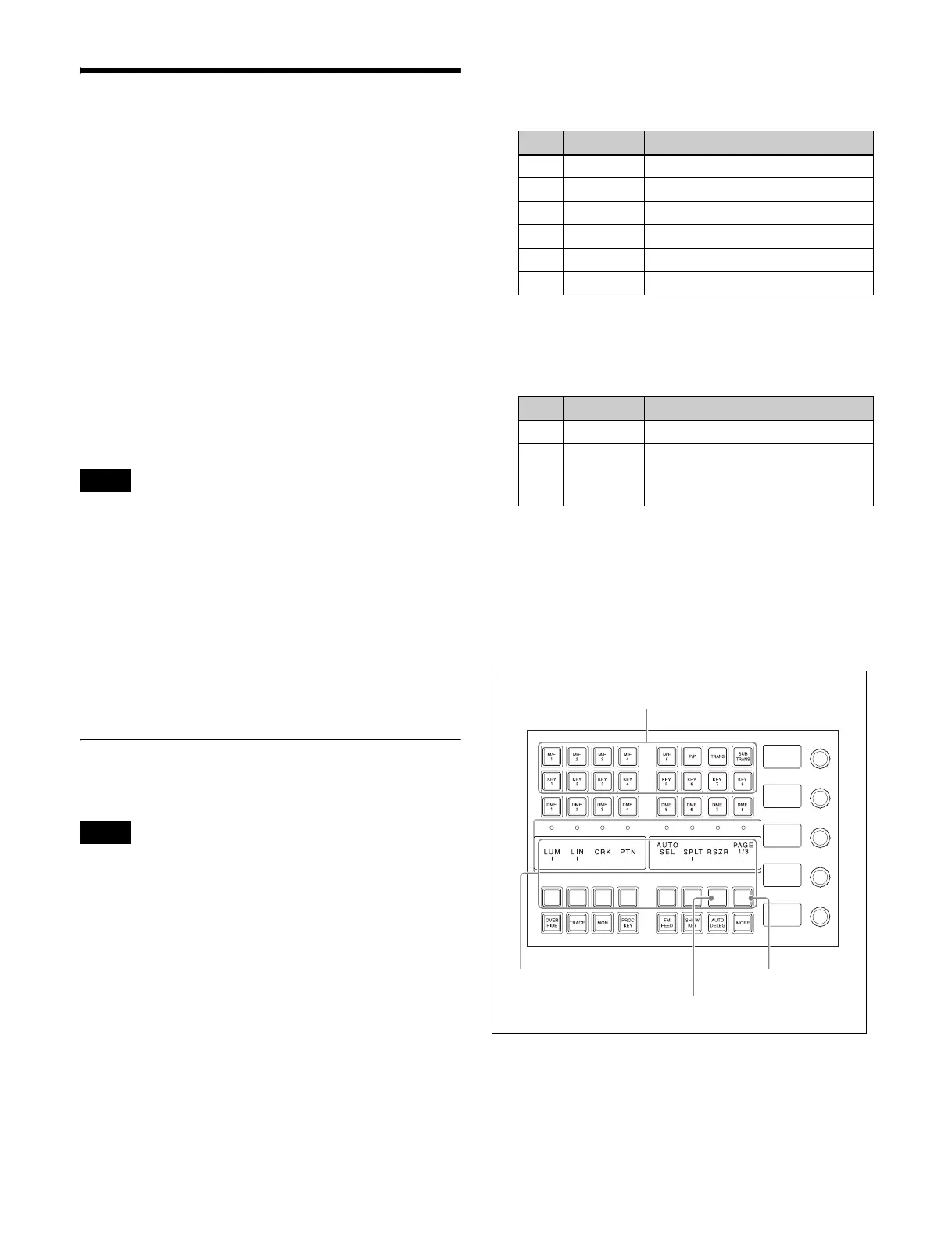

Key control block
1
Press a delegation button to select the target keyer.
Press the [M/E1] button, turning it on, and press the
[KEY1] button, turning it on.
Notes
Note
Parameter group [1/2]
No. Parameter Adjustment
1 Location X Horizontal key movement
2 Location Y Vertical key movement
3 Size Key reduction/enlargement
4
a)
Rotation X Horizontal key rotation
4
b)
Rotation Y Vertical key rotation
5 Perspective Perspective
Parameter group [2/2]
No. Parameter Adjustment
1 Aspect X Change aspect ratio horizontally
2 Aspect Y Change aspect ratio vertically
3 Aspect
Ratio
Change aspect ratio horizontally
and vertically simultaneously
Delegation buttons
PAGE button
RSZR button
Setting buttons
To Next Page
