417
• Only table 1 in the cross-point assign tables can be
copied.
• After copying, the remote panel settings data is
overwritten.
• After copying, the function button settings on the remote
panel change as follows.
- Top left button: Status function
- Top right button: Source/Destination/Level function
- Bottom left button: Assign function
- Bottom right button: Lock Chop function
1
Open the Engineering Setup >Panel >Xpt Assign
menu (7322).
2
Select the destination remote panel to which to copy
using the following parameter.
3
In the
<Aux Remote>
group, press [
Table1 Copy].
4
Check the message, then press [Yes].
Exporting Source Names and
Destination Names
You can send the source names and destination names to
the S-Bus.
Source names and destination names cannot be exported
manually for an NS-Bus.
1
In the Engineering Setup >Panel >Xpt Assign menu
(7322), press [Name Export].
The Name Export menu (7322.9) appears.
2
Set the destination station ID.
a) If set to “255”, the names are sent to all stations (“All” is displayed
in the status area).
3
Press [Src Name Export].
The source names are exported to the station set in step
2.
4
Press [Dest Name Export].
The destination names are exported to the station set in
step 2.
Destination names cannot be specified arbitrarily, so
fixed names are used.

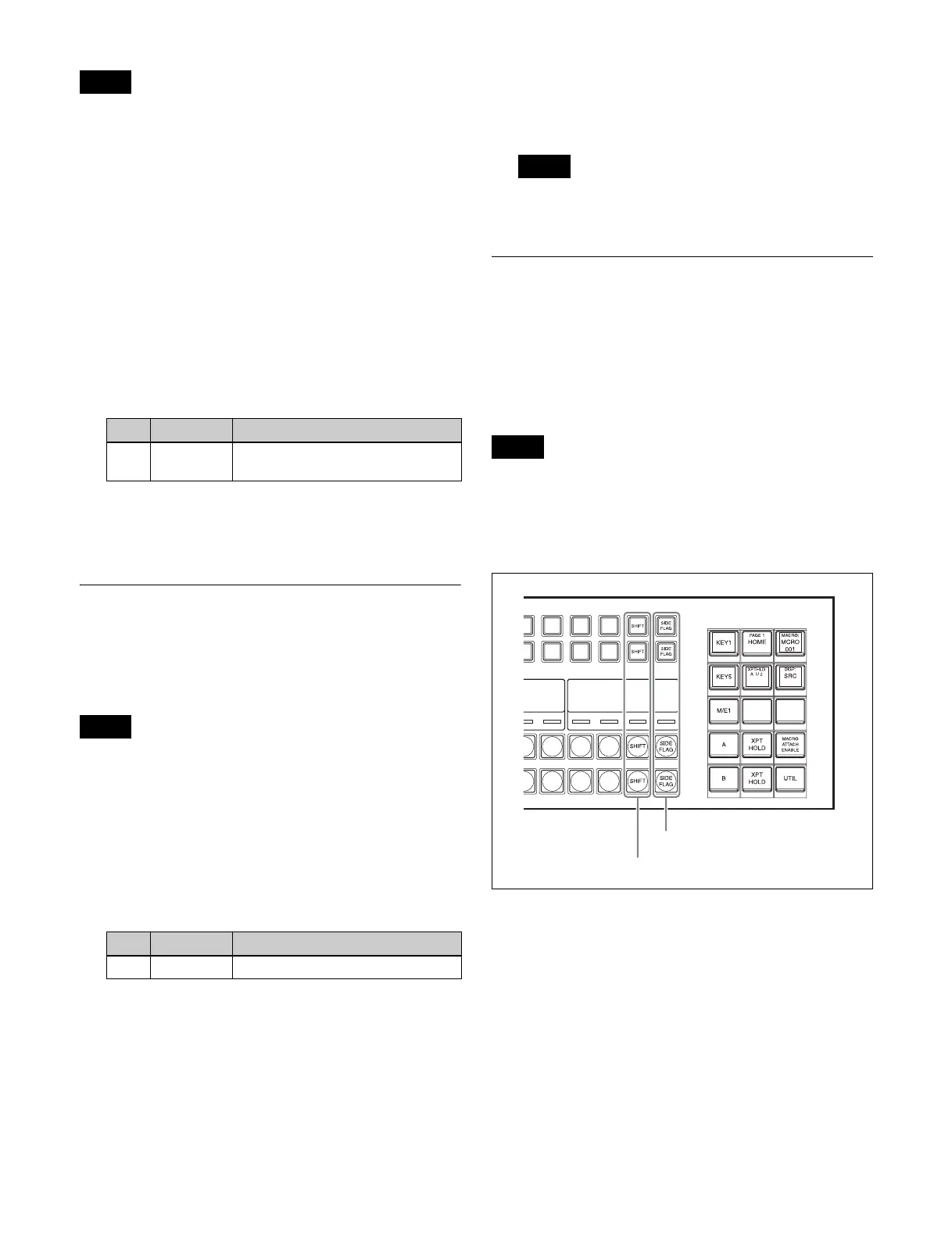

Assigning the [SIDE FLAG] Button
You can assign the [SIDE FLAG] button to the right hand
edge of the cross-point button row for enabling and
disabling side flags. The settings are common to the M/E
and PGM/PST banks.
Assigning the [SIDE FLAG] button moves the [SHIFT]
button one space to the left.
If a macro attachment is set for the button, assigning the
side flag button shifts the number of the button, so pressing
the button will no longer execute the macro. The settings,
however, are maintained, so that when you cancel the side
flag assignment, the macro can be executed once more.
Cross-point control block
For details about side flags, see “Side Flags” (page 197).
1
In the Engineering Setup >Panel >Xpt Assign menu
(7322), press [Side Flags Button Assign].
The Side Flags Button Assign menu (7322.10)
appears.
2
Press [Side Flags Btn Assign], turning it on.
Notes
No. Parameter Adjustment
5Aux
Remote
Remote panel number
Note
No. Parameter Adjustment
1 Station ID Station ID setting
a)
Note
Note
SHIFT button moves one space to the left
SIDE FLAG button
To Next Page
