MX-P 21

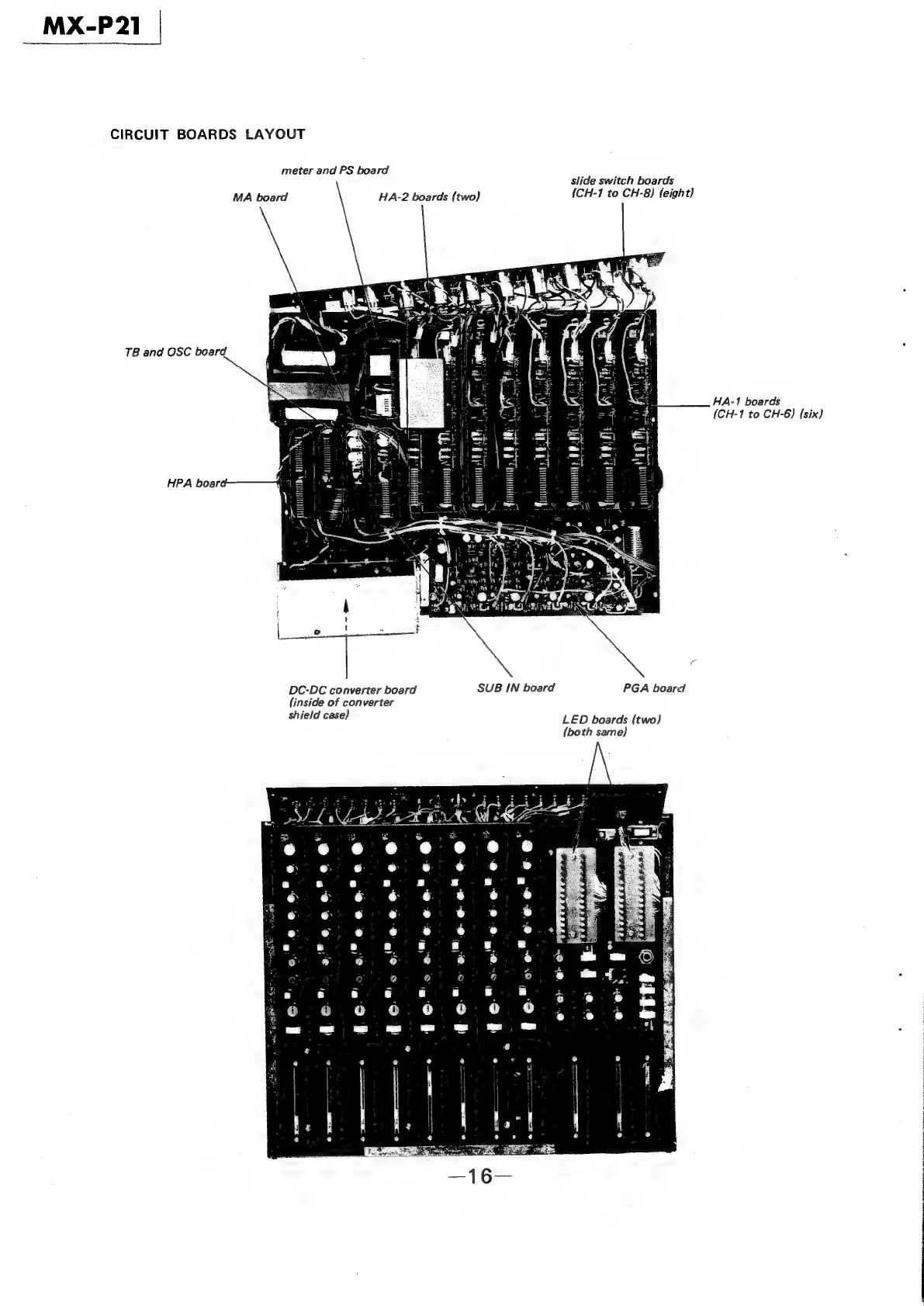

CIRCUIT BOARDS LAYOUT
meter and PS board
slide switch boards
MA board HA-2 boards (two) (CH-1 to CH-8) (eight)
TB and OSC board
HA-1 boards
(CH-1 to CH-6) (six)
Pani
HPA board
PUAN
DC-DC converter board SUB IN board PGA board
{inside of converter
shield case) LED boards {two}
(both same}
