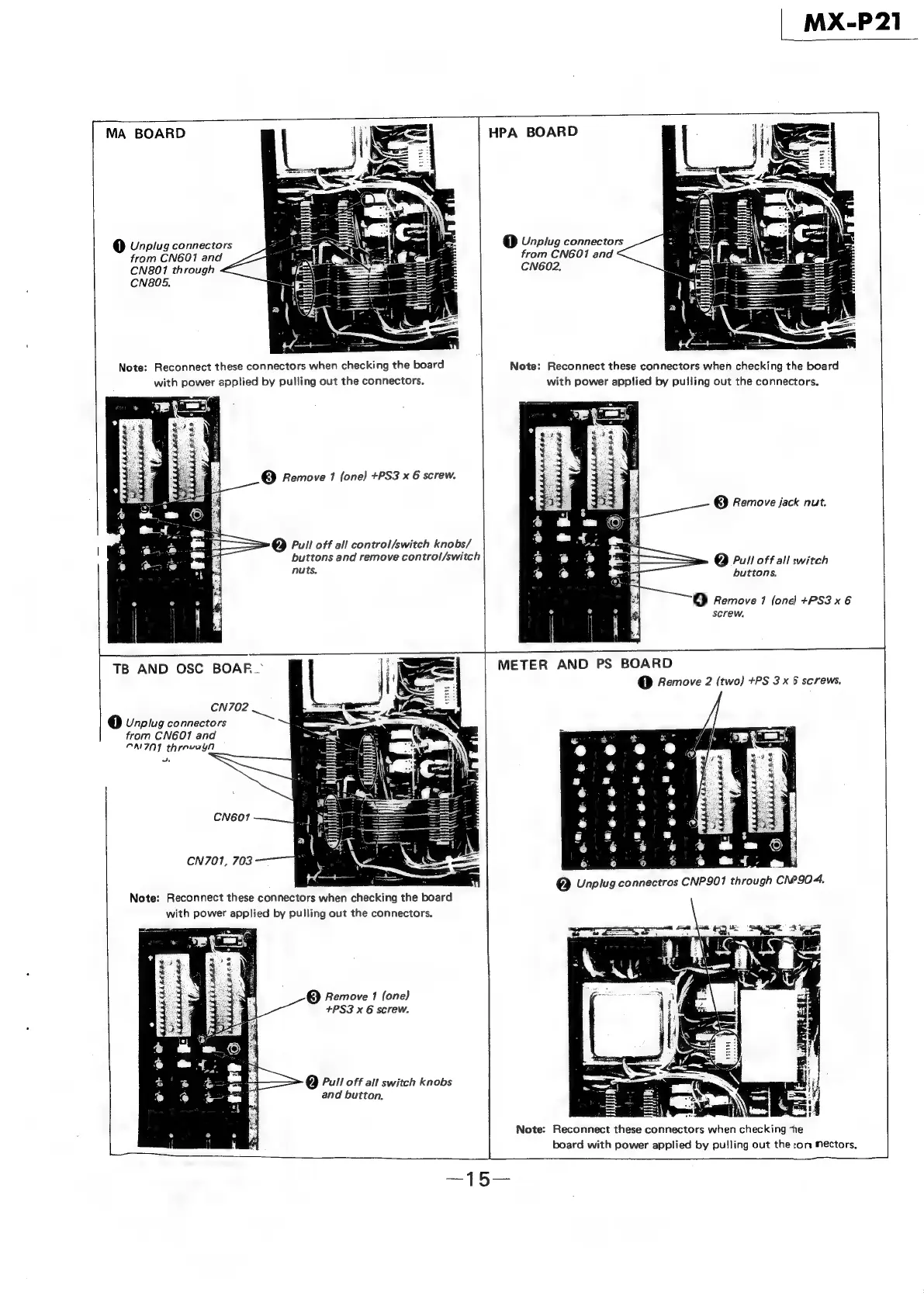

Sony MX-P21 - Page 11

MA BOARD
0 Unplug connectors
from CN601 and
CN801 through
CN805.
Note: Reconnect these connectors when checking the board
with power applied by pulling out the connectors.
@ Pull off all control/switch knobs/
buttons and remove control/switch
nuts,
TB AND OSC BOAR.”
CN702
C1] Unplug connectors
from CN601 and
ONIN threvayn
rey
CN601
CN701, 703
=
Note: Reconnect these connectors when checking the board
with power applied by pulling out the connectors.
@ Remove 1 fone)
+PS3 x 6 screw.
Q Pull off all switch knobs
and button,
HPA BOARD
0 Unplug connectors 3
from CN601 and
CN602, wd
Note: Reconnect these connectors when checking the board
with power applied by pulling out the connectors.
3} Remove jack nut.
2] Pull off all switch
buttons.
© Remove 1 fone +PS3 x 6
screw.
METER AND PS BOARD
@ Remove 2 (two) +PS 3x 5 screws,
board with power applied by pulling out the :on nectors,
