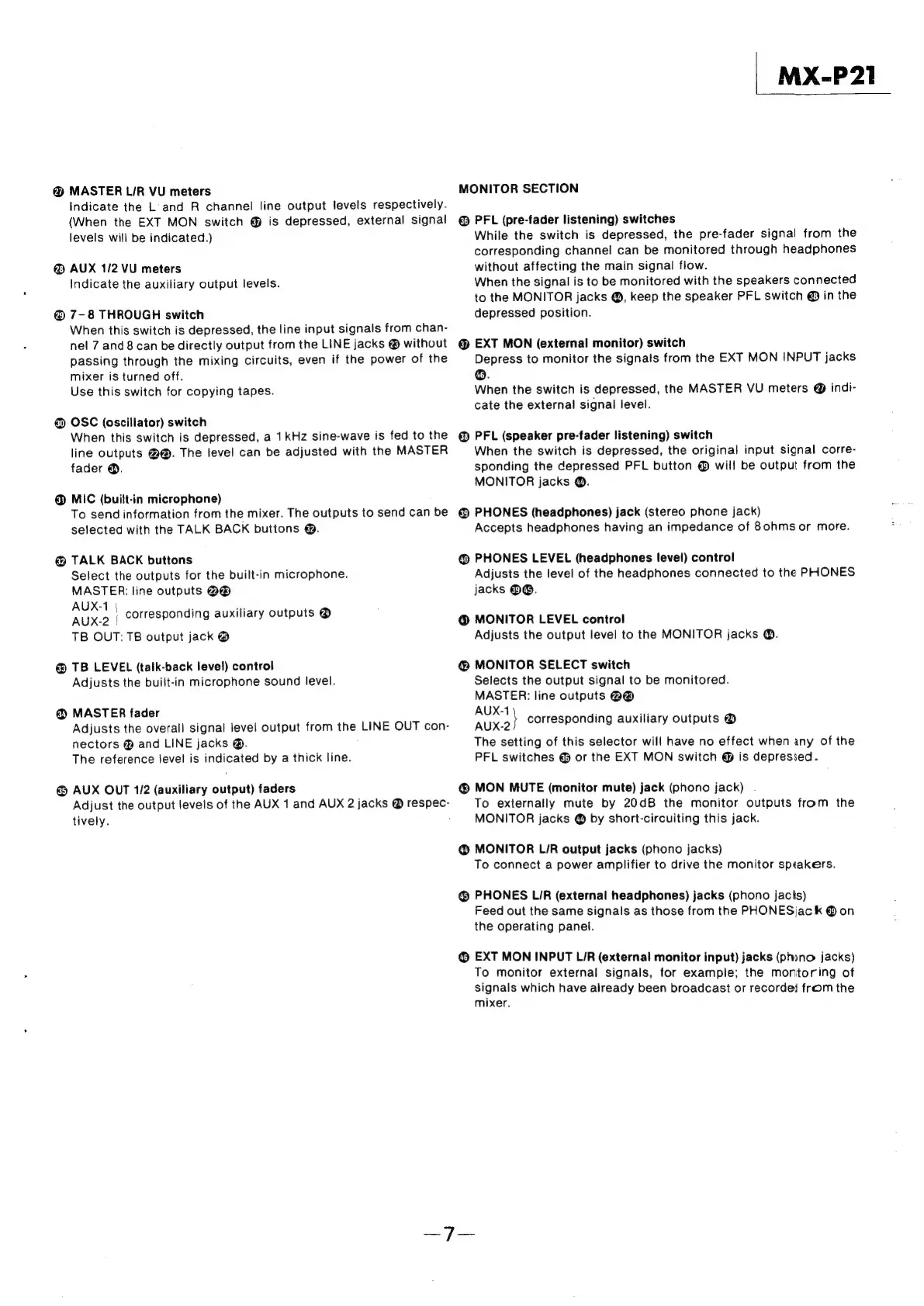

@ MASTER L/R VU meters
Indicate the L'and R channel line output levels respectively.
(When
the
EXT
MON
switch
@
is
depressed,
external
signal
levels will be indicated.)
@ AUX 1/2 VU meters
Indicate the auxiliary output levels.
@ 7-8 THROUGH switch
When
this
switch
is
depressed,
the
line
input
signals
from
chan-
nel 7 and 8 can be directly output from the LINE jacks @ without
passing
through
the
mixing
circuits,
even
if
the
power
of
the
mixer is turned off.
Use this switch for copying tapes.
@ OSC (oscillator) switch
When this switch is depressed, a 1kHz sine-wave is fed to the
line
outputs
@@.
The
level
can
be
adjusted
with
the
MASTER
fader @.
® MIC (built-in microphone)
To send information from the mixer. The outputs to send can be
selected with the TALK BACK buttons @.
@ TALK BACK buttons
Select the outputs for the built-in microphone.
MASTER: line outputs @®
AUX-1 |
AUX-2 |
TB OUT: TB output jack ®
corresponding auxiliary outputs @
@ TB LEVEL (talk-back level) control
Adjusts the built-in microphone sound level.
@ MASTER fader
Adjusts
the
overall
signal
level
output
from
the
LINE
OUT
con-
nectors @ and LINE jacks ®.
The reference level is indicated by a thick line.
@ AUX OUT 1/2 (auxiliary output) faders
Adjust
the
output
levels
of
the
AUX
1
and
AUX
2
jacks
@
respec-
tively. ;
_MX-P2T
MONITOR SECTION
© PFL (pre-fader listening) switches
While the switch is depressed, the pre-fader signal from the
corresponding channel can be monitored through headphones
without affecting the main signal flow.
When the signal is to be monitored with the speakers connected
to the MONITOR jacks @, keep the speaker PFL switch @ in the
depressed position.
@ EXT MON (external monitor) switch
Depress to monitor the signals from the EXT MON INPUT jacks
®.
When the switch is depressed, the MASTER VU meters @ indi-
cate the external signal level.
@® PFL (speaker pre-fader listening) switch
When the switch is depressed, the original input signal corre-
sponding the depressed PFL button @ will be output from the
MONITOR jacks @.
@ PHONES (headphones) jack (stereo phone jack)
Accepts headphones having an impedance of 8ohmsor more.
@ PHONES LEVEL (headphones level) control
Adjusts the level of the headphones connected to the PHONES
jacks @®@.
@ MONITOR LEVEL control
Adjusts the output level to the MONITOR jacks @.
@ MONITOR SELECT switch
Selects the output signal to be monitored.
MASTER: line outputs @@®
AUX-1
AUX-2
The setting of this selector will have no effect when any of the
PFL switches @ or the EXT MON switch @ is depressed.
} corresponding auxiliary outputs @
@ MON MUTE (monitor mute) jack (phono jack)
To externally mute by 20dB the monitor outputs from the
MONITOR jacks @ by short-circuiting this jack.
@ MONITOR LIR output jacks (phono jacks)
To connect a power amplifier to drive the monitor speakers.
@ PHONES LI/R (external headphones) jacks (phono jacts)
Feed out the same signals as those from the PHONES jac k @ on
the operating panel.
@® EXT MON INPUT L/R (external monitor input) jacks (phono jacks)
To monitor external signals, for example; the montoring of
signals which have already been broadcast or recordei from the
mixer.
