MX-P21

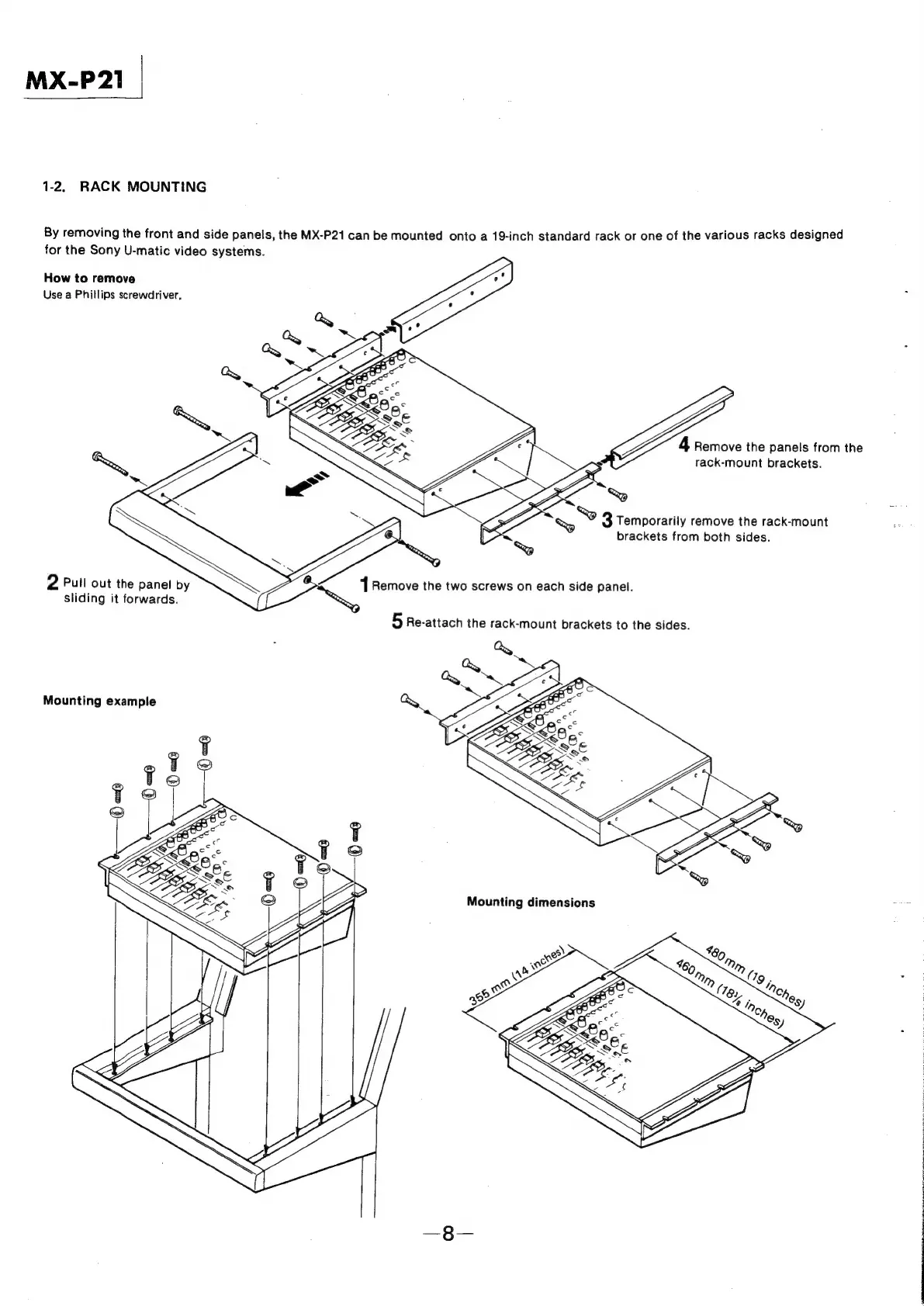

1-2, RACK MOUNTING
By removing the front and side panels, the MX-P21 can be mounted onto a 19-inch standard rack or one of the various racks designed
for the Sony U-matic video systems.
How to remove
Use a Phillips screwdriver.
~ Coa)
4 Remove the panels from the
rack-mount brackets.
fe
on Bp
oe 3 Temporarily remove the rack-mount
brackets from both sides.
2
Pull
out
the
panel
by
1 Remove the two screws on each side panel.
sliding it forwards.
5
Re-attach
the
rack-mount
brackets
to
the
sides.
Mounting example
Mounting dimensions
