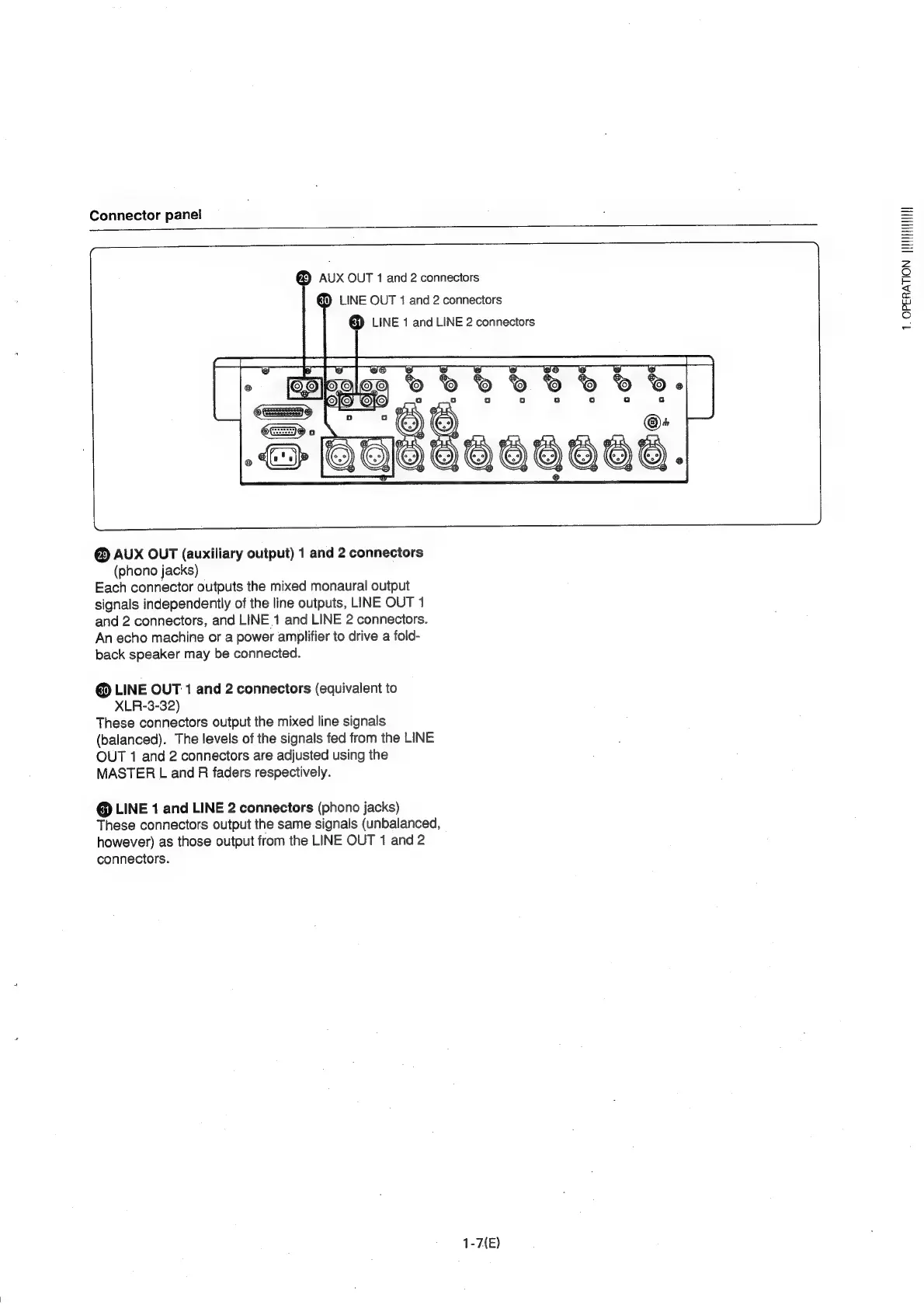

Connector panel
@ AUX OUT 1 and 2 connectors
LINE OUT 1 and 2 connectors
@ LINE 1 and LINE 2 connectors
@® AUX OUT (auxiliary output) 1 and 2 connectors
(phono jacks)
Each connector outputs the mixed monaural output
signals independently of the line outputs, LINE OUT 1
and 2 connectors, and LINE 1 and LINE 2 connectors.
An echo machine or a power amplifier to drive a fold-
back speaker may be connected.
@ LINE OUT-1 and 2 connectors (equivalent to
XLR-3-32)
These connectors output the mixed line signals
(balanced). The levels of the signals fed from the LINE
OUT 1 and 2 connectors are adjusted using the
MASTER L and R faders respectively.
@ LINE 1 and LINE 2 connectors (phono jacks)
These connectors output the same signals (unbalanced,
however) as those output from the LINE OUT 1 and 2
connectors.
