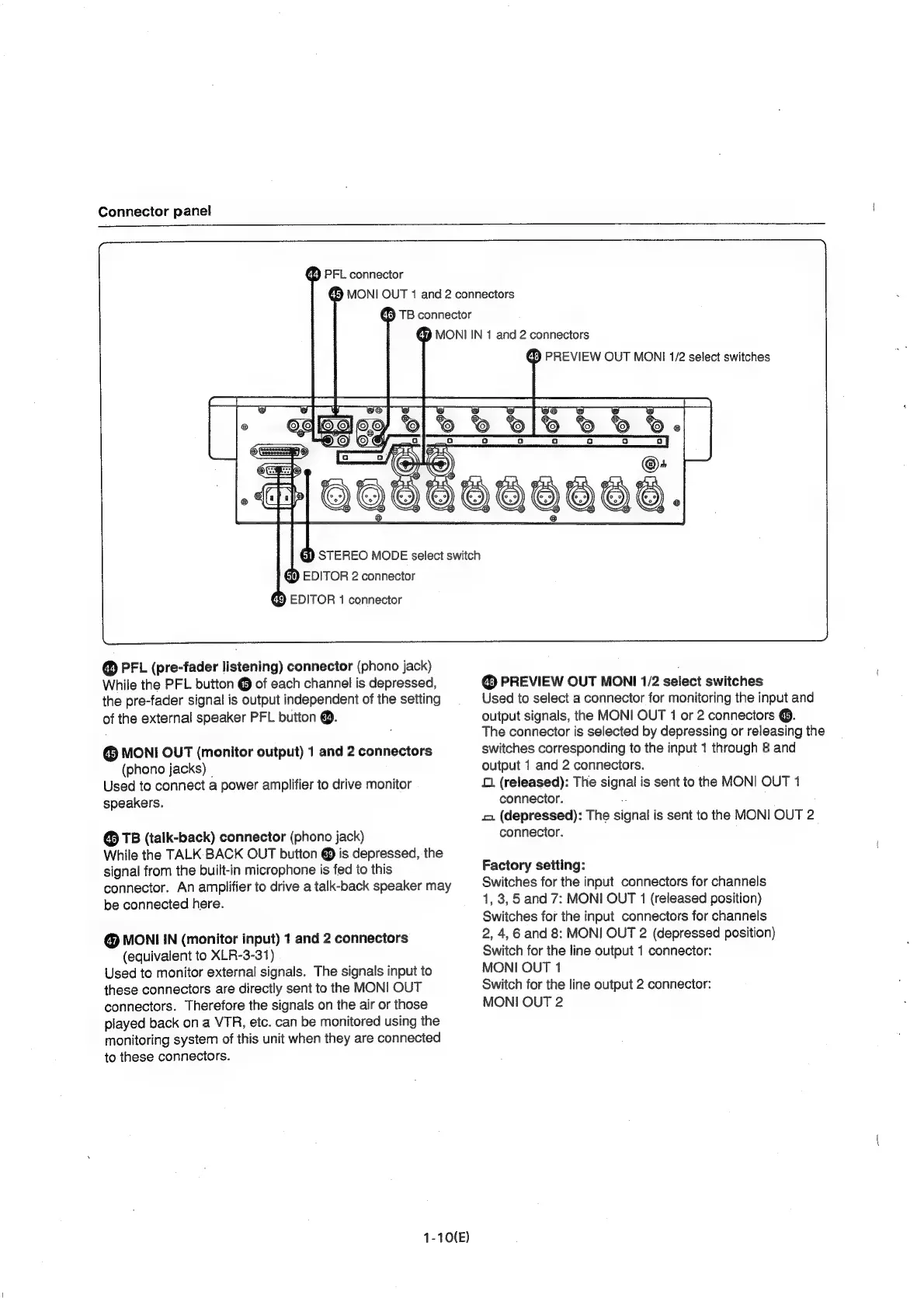

Connector panel
(2) PFL connector
&) EDITOR 2 connector
&) EDITOR 1 connector
@ PFL (pre-fader listening) connector (phono jack)
While the PFL button @ of each channel is depressed,
the pre-fader signal is output independent of the setting
of the external speaker PFL button @.
@ MONI OUT (monitor output) 1 and 2 connectors
(phono jacks) -
Used to connect a power amplifier to drive monitor
speakers.
@ TB (talk-back) connector (phono jack)
While the TALK BACK OUT button @ is depressed, the
signal from the built-in microphone is fed to this
connector.
An
amplifier
to
drive
a
talk-back
speaker
may
be connected here.
@ MONI IN (monitor input) 1 and 2 connectors
(equivalent to XLR-3-31)
Used to monitor external signals. The signals input to
these
connectors
are
directly
sent
to
the
MON!
OUT
connectors.
Therefore
the
signals
on
the
air
or
those
played back on a VTR, etc. can be monitored using the
monitoring system of this unit when they are connected
to these connectors.
1-10(E)
MONI OUT 1 and 2 connectors
(9 TB connector
CY) MONI IN 1 and 2 connectors
) STEREO MODE select switch
ti) PREVIEW OUT MONI 1/2 select switches
@® PREVIEW OUT MONI 1/2 select switches
Used to select a connector for monitoring the input and
output signals, the MONI OUT 1 or 2 conneciors @.
The connector is selected by depressing or releasing the
switches corresponding to the input 1 through 8 and
output 1 and 2 connectors.
1 (released): The signal is sent to the MONI OUT 1
connector. “3
=. (depressed): The signal is sent to the MONI OUT 2
connector.
Factory setting:
Switches for the input connectors for channels
1, 3, 5 and 7: MONI OUT 1 (released position)
Switches for the input connectors for channels
2, 4, 6 and 8: MONI OUT 2 (depressed position)
Switch for the line output 1 connector:
MONI OUT 1
Switch for the line output 2 connector:
MONI OUT 2
