Sony NW-E103 - 5 Exploded Views; Overall-1

15
NW-E103/E105/E107
2 2-589-659-01 CABINET (REAR)(WHITE)(US, CND)
2 2-589-659-11 CABINET (REAR)(BLACK)(US, CND)
2 2-589-659-21 CABINET (REAR)(BLUE)(US, CND)
2 2-589-659-31 CABINET (REAR)(WHITE)(AEP, HK, KR, JE)
2 2-589-659-41 CABINET (REAR)(BLUE)(AEP, HK, KR, JE, AUS)
2 2-589-659-51 CABINET (REAR)(ORANGE)(AEP, HK, KR, JE)
2 2-589-659-61 CABINET (REAR)(RED)(CND, AEP, HK, KR, JE)
2 2-589-659-71 CABINET (REAR)(SILVER)
(US, CND, AEP, HK, KR, JE, AUS)
2 2-589-659-81 CABINET (REAR)(PINK)(AEP)
2 2-589-659-91 CABINET (REAR)(PINK)(US)
3 2-589-661-01 BUTTON (REAR)(WHITE)(US, CND)
3 2-589-661-11 BUTTON (REAR)(BLACK)(US, CND)
- Continued on page 16 -
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 2-589-660-01 LID, BATTERY CASE (WHITE)(US, CND)
1 2-589-660-11 LID, BATTERY CASE (BLACK)(US, CND)
1 2-589-660-21 LID, BATTERY CASE (BLUE)(US, CND)
1 2-589-660-31 LID, BATTERY CASE (WHITE)(AEP, HK, KR, JE)
1 2-589-660-41 LID, BATTERY CASE (BLUE)
(AEP, HK, KR, JE, AUS)
1 2-589-660-51 LID, BATTERY CASE (ORANGE)
(AEP, HK, KR, JE)
1 2-589-660-61 LID, BATTERY CASE (RED)
(CND, AEP, HK, KR, JE)
1 2-589-660-71 LID, BATTERY CASE (SILVER)
(US, CND, AEP, HK, KR, JE, AUS)
1 2-589-660-81 LID, BATTERY CASE (PINK)(AEP)
1 2-589-660-91 LID, BATTERY CASE (PINK)(US)

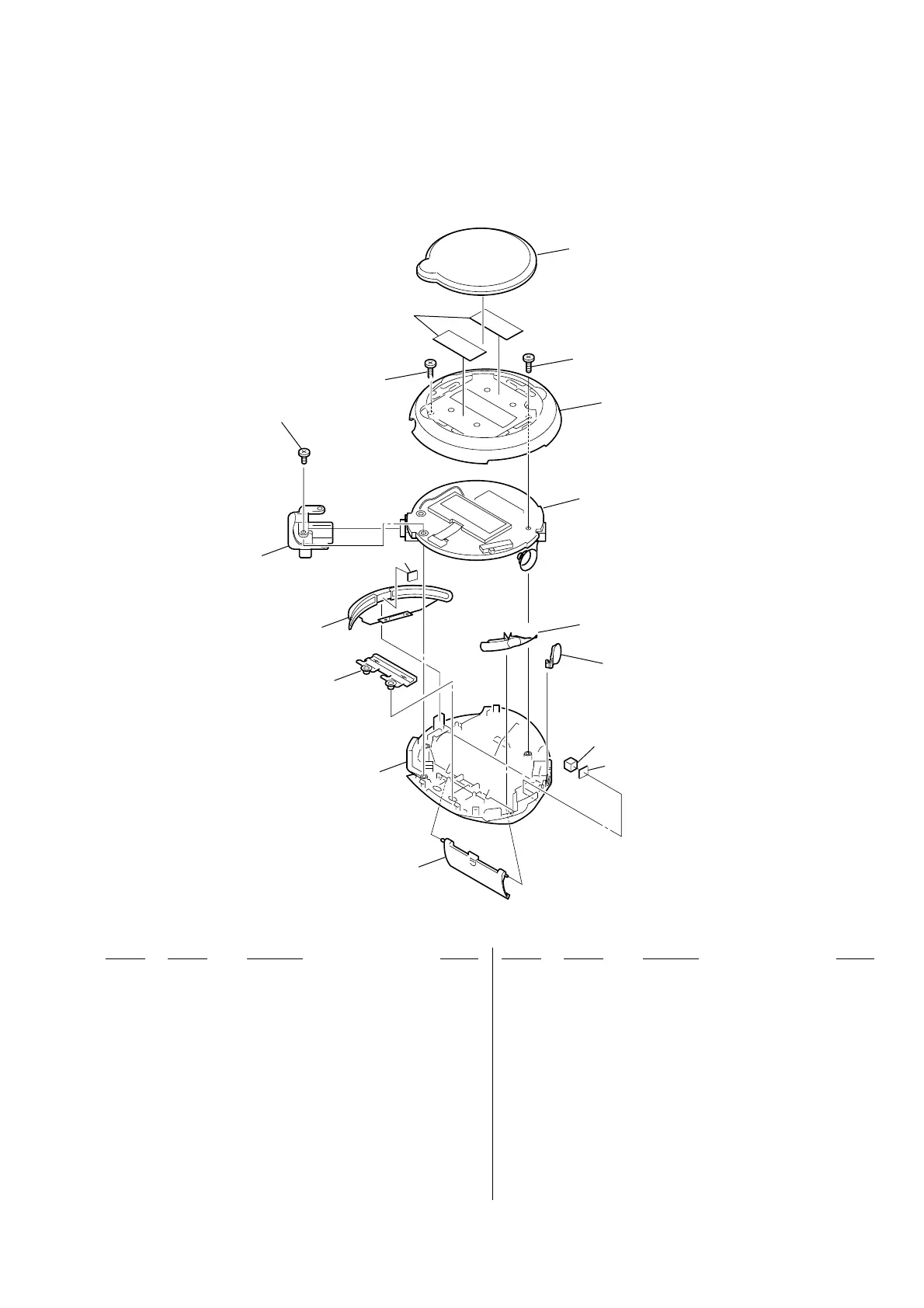

5-1. OVERALL-1
Ref. No. Part No. Description Remark
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts of Color Cabinet’s Color
•Abbreviation
AUS: Australian model
CND: Canadian model
HK : HongKong model
JE : Tourist model
KR : Korean model
Ver. 1.3
1
2
3
4
5
11
14
13
12
9
9
8
6
7
15
16
10
