5
NW-E103/E105/E107

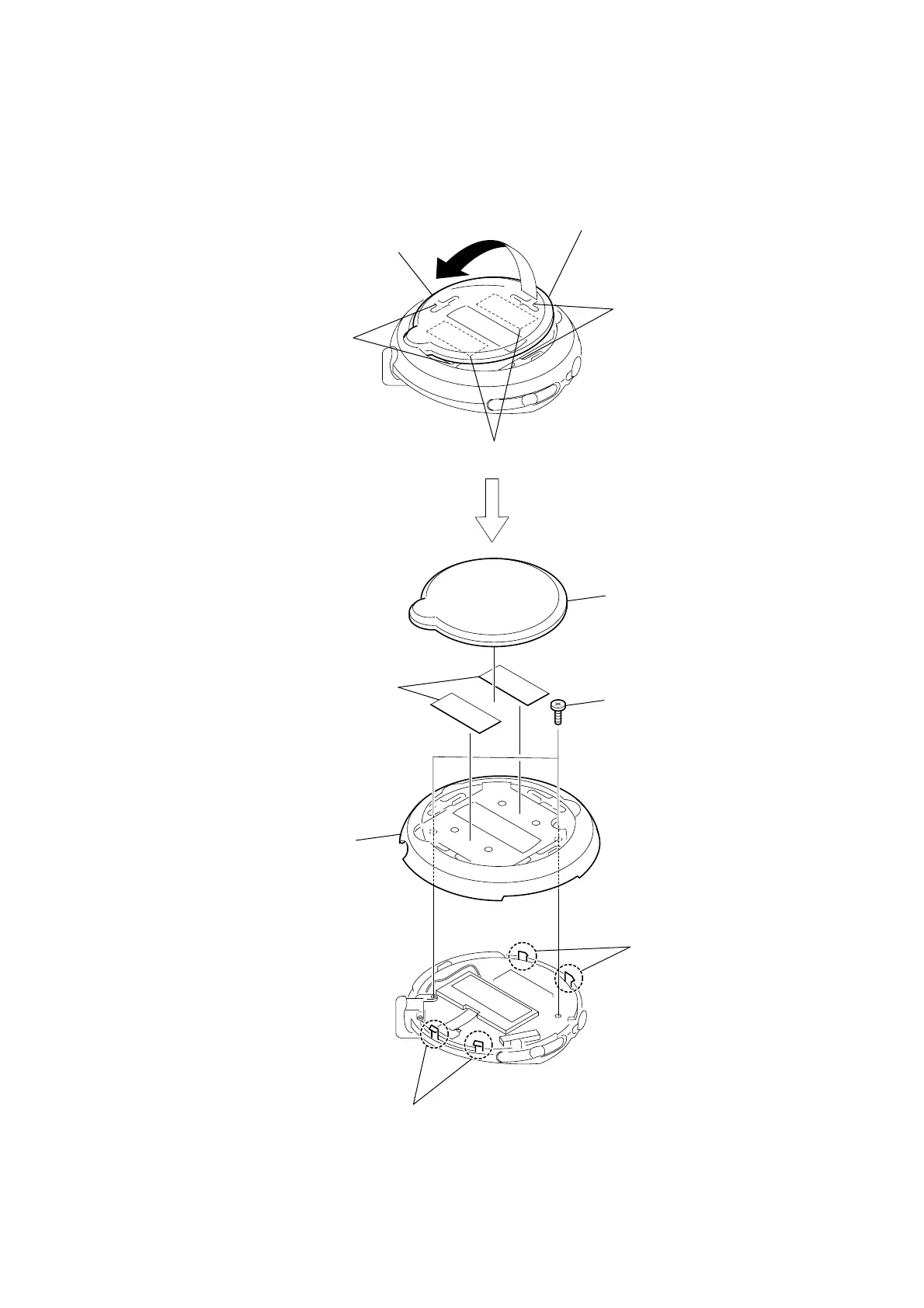

SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
5
two claws
2
cosmetics plate
1
The
cosmetics plate
is removed in the direction of the arrow.
(Damage attention of four claws of
cosmetics plate)
4
two screws (1.4)
6
front cabinet
3
two adhesive sheets (plate, cosme)
two claws
cosmetics plate
two adhesive sheets (plate, cosme)
two claws
5
two claws
