22
NW-E103/E105/E107

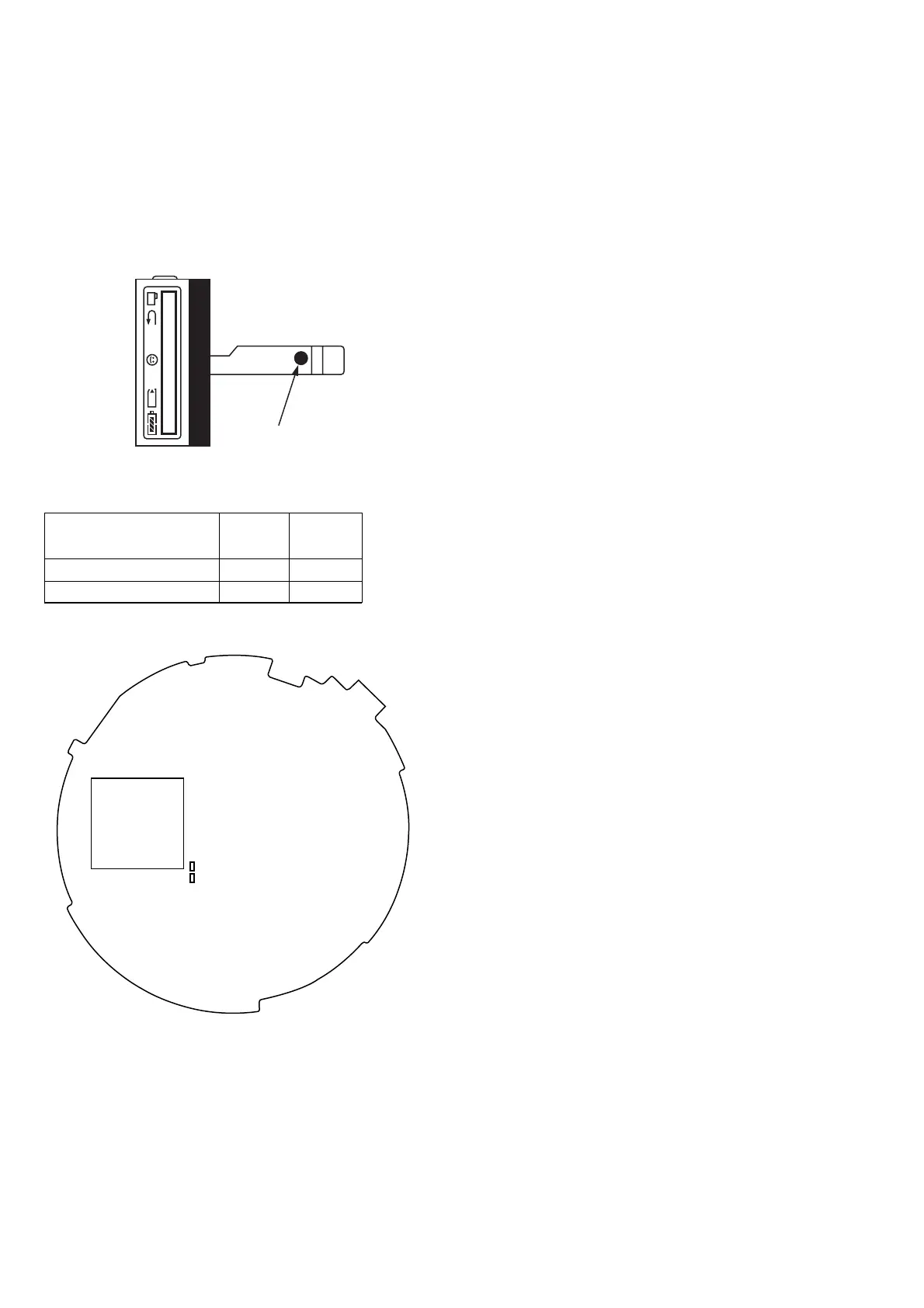

NOTES WHEN REPLACING THE LCD
When replacing the LCD (liquid crystal display), check the part
number suffix of the LCD (liquid crystal display).
[How to check the suffix]
The part with a dot mark (blue) as shown below is the part suffixed
with -21.
The part suffixed with -11 has no dot mark.
When replacing the LCD (liquid crystal display), install or remove a
resistor according to the following table.
1SHUF S12
dot marked
IC400
MAIN BOARD (parts face side)
R423
R425
Ver. 1.4
LCD (liquid crystal display)
R423 R425
part number
1-805-848-11 no mount 0 ohm
1-805-848-21 0 ohm no mount
