Sony Playstation 2 Service Manual

- 22 -

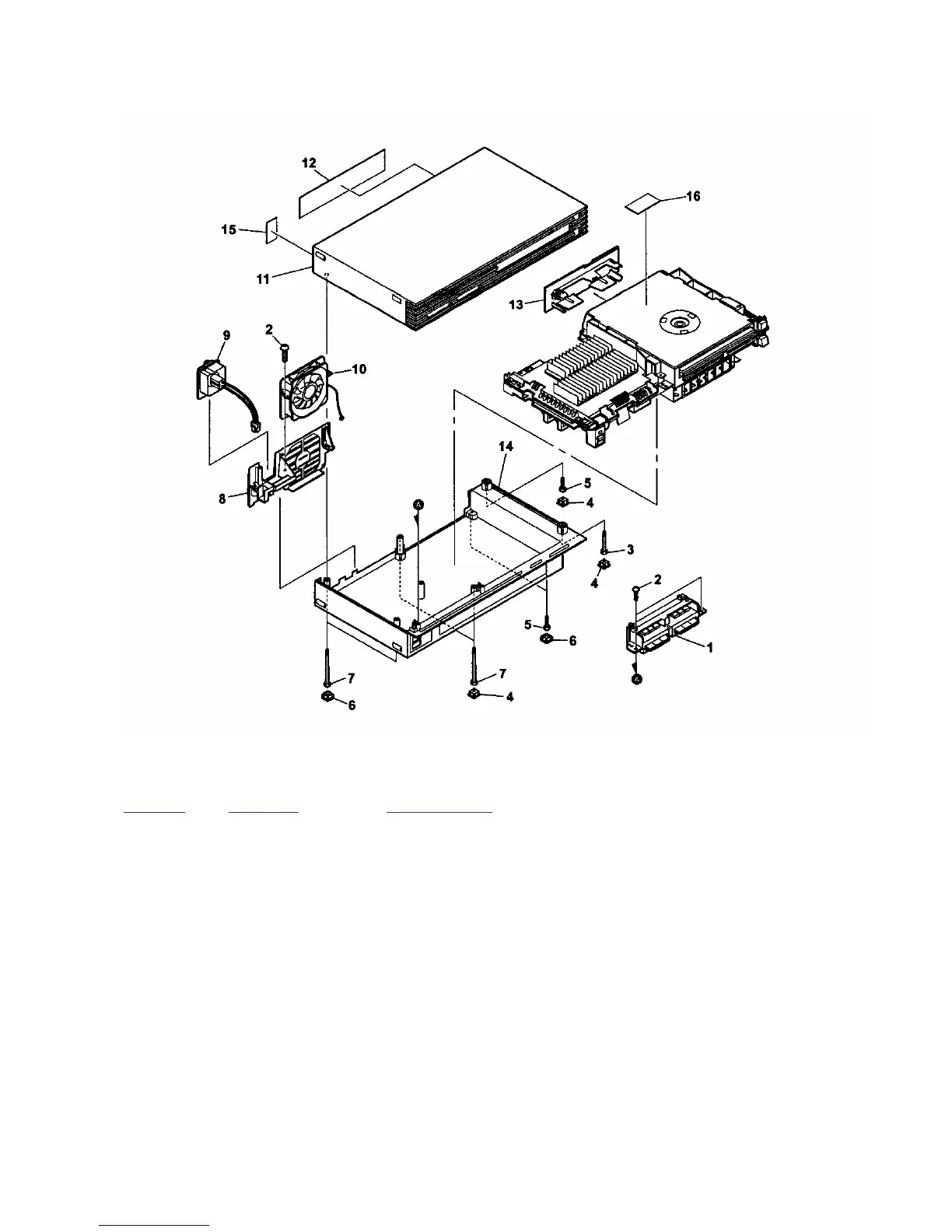

Overall and Main Block for SCPH-50002 / 50003 / 50004 / 50008 ( H & H SS )
Ref-No. Part No. Description
1 169487513 TERMINAL BOARD (FRONT)
2 307455511 SCREW, +BV TAPPING
3 308452101 SCREW (M3X27), TAPPING
4 307454801 COVER, SCREW
5 307455501 SCREW, +BV TAPPING
6 307454901 CAP
7 307455601 SCREW, BRAZIER HEAD P TIGHT
8 308450601 PANEL (H), REAR
9 178634551 SWITCH, POWER (WITH AC INLET)
10 178700911 FAN, D.C.
13 307455001 LID
14 X39535861 COVER (H) ASSY, LOWER (H)
14 X39537401 COVER (H) ASSY, LOWER Silver (H SS)
14 X39542641 COVER (H) ASSY, LOWER Aqua (H AQ)
15 306625301 TAPE, VOID

Sony Playstation 2 Specifications

General

Product color	Black
Optical drive type	CD
Card reader integrated	Yes
Built-in display	No
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
AC input voltage	120 V
AC input frequency	60 Hz

Weight and Dimensions

Depth	152 mm
Width	230 mm
Height	28 mm
Weight	720 g
