PS-LX33/33B/33C/33(a) |

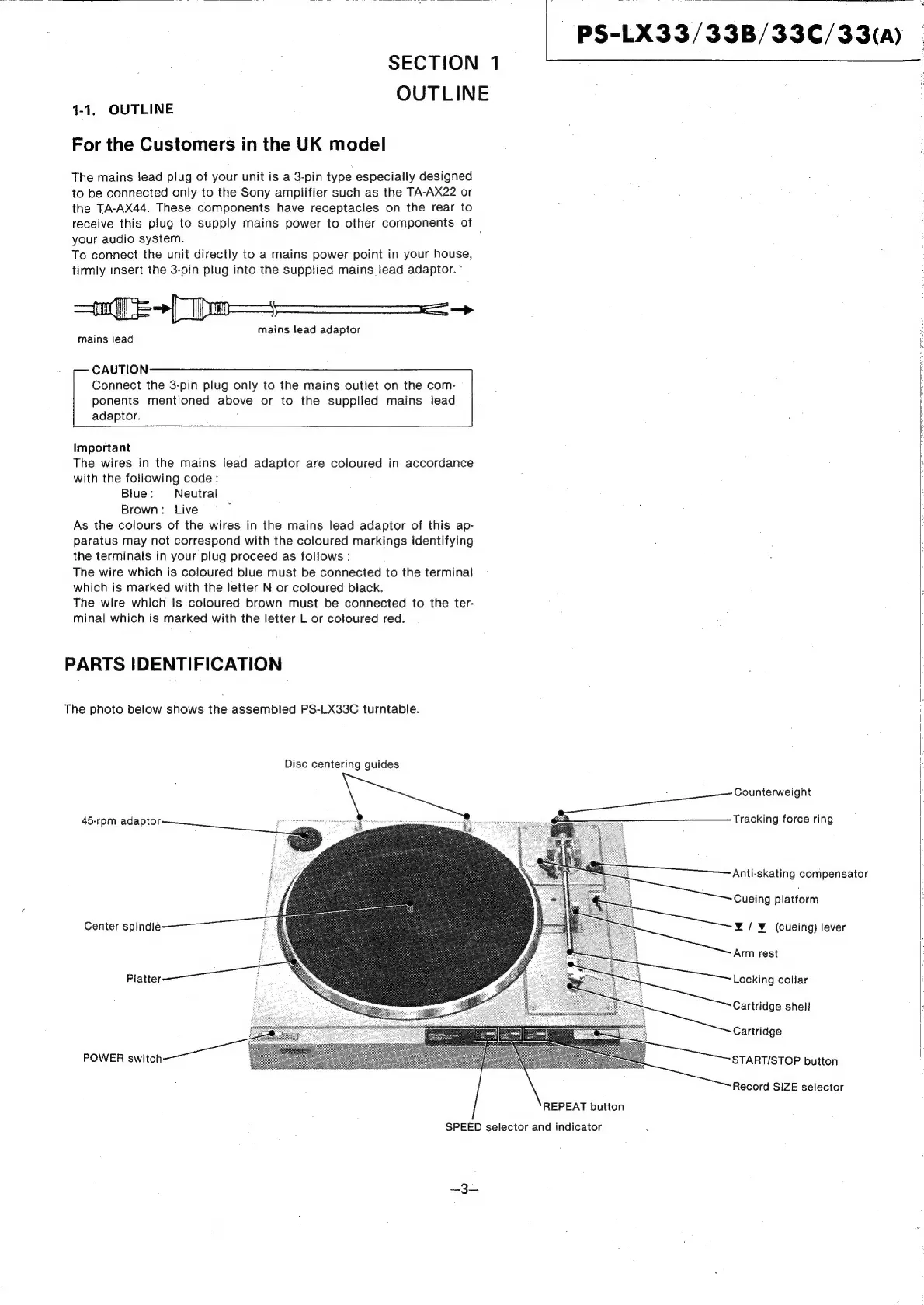

SECTION 1
OUTLINE
1-1, OUTLINE
For the Customers in the UK model
The mains lead plug of your unit is a 3-pin type especially designed
to be connected only to the Sony amplifier such as the TA-AX22 or
the TA-AX44. These components have receptacles on the rear to
receive this plug to supply mains power to other components of
your audio system. ,
To connect the unit directly to a mains power point in your house,
firmly insert the 3-pin plug into the supplied mains lead adaptor. *
it ee
. mains lead adaptor
mains iead
CAUTION
Connect the 3-pin plug only to the mains outlet on the com-
ponents mentioned above or to the supplied mains lead
adaptor. 7
Important
The wires in the mains lead adaptor are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead adaptor of this ap-
paratus may not correspond with the coloured markings identifying
the terminals in your plug proceed as follows :
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red.
PARTS IDENTIFICATION
The photo below shows the assembled PS-LX33C turntable.
Disc centering guides
.
Counterweight
45-rom
adaptor
;
:
i
BR
roe
pe
adi
force
ring
Center spindle
Platter
REPEAT button
SPEED selector and indicator
Anti-skating compensator
Cueing platform
¥/¥Y (cueing) lever
Arm rest
Locking collar
Cartridge shell
Cartridge
START/STOP button
Record SIZE selector
