PS-LX33/33B/33C/33(a)

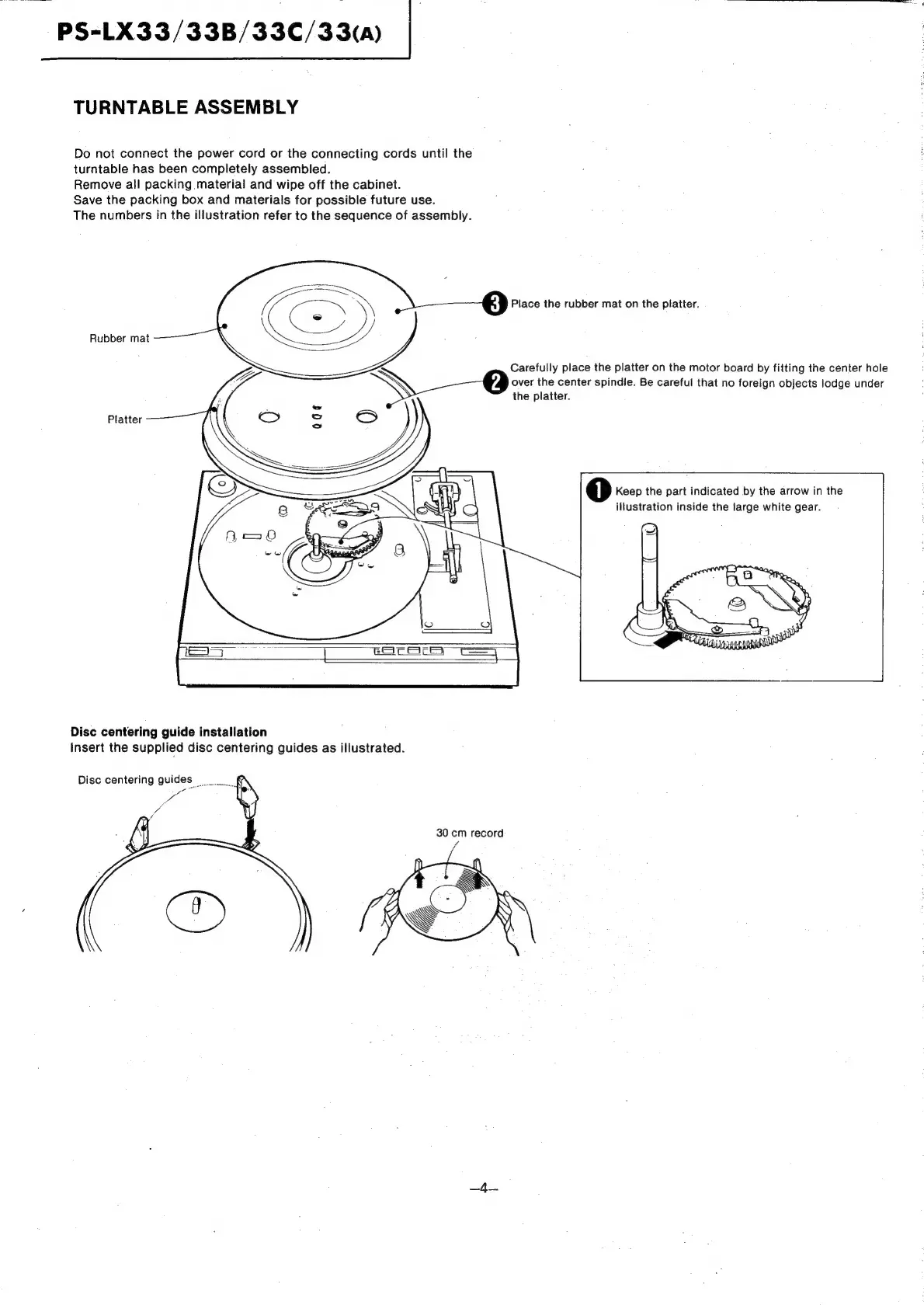

TURNTABLE ASSEMBLY
Do not connect the power cord or the connecting cords until the
turntable has been completely assembled.
Remove all packing material and wipe off the cabinet.
Save the packing box and materials for possible future use.
The numbers in the illustration refer to the sequence of assembly.
Place the rubber mat on the platter.
Rubber mat
Carefully place the platter on the motor board by fitting the center hole
over the center spindle. Be careful that no foreign objects lodge under
the platter.
Platter
Keep the part indicated by the arrow in the
illustration inside the large white gear.
Disc centering guide installation
Insert the supplied disc centering guides as illustrated.
30 cm record
