Sony PS-LX330 - Turntable Assembly; Replacing the Stylus; Operating Voltage

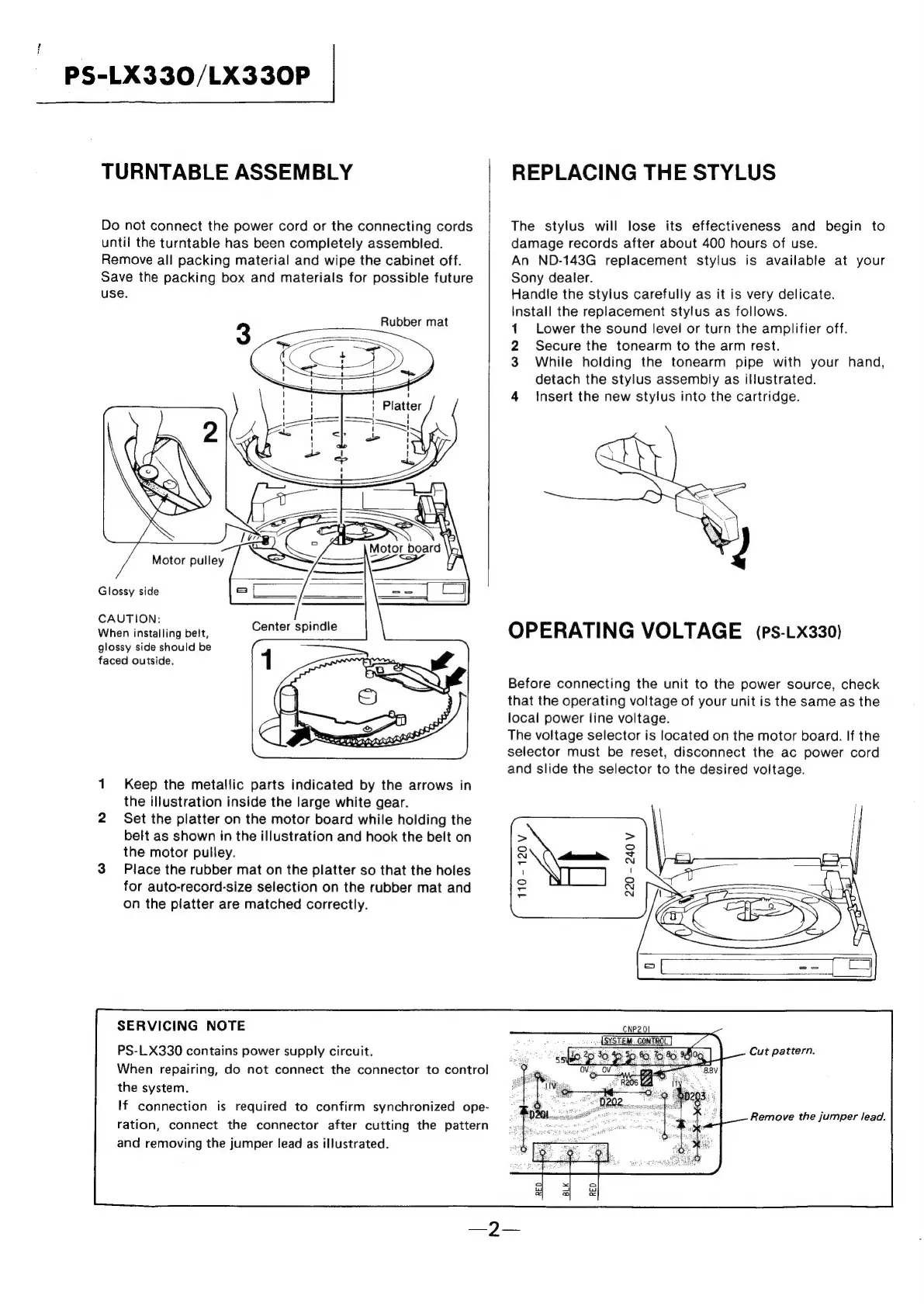

PS-LX330/LX330P
TURNTABLE ASSEMBLY
Do not connect the power cord or the connecting cords
until the turntable has been completely assembled.
Remove all packing material and wipe the cabinet off.
Save the packing box and materials for possible future
use.
3 Rubber mat
Glossy side
CAUTION:
When installing belt,
glossy side should be
faced outside.
Center spindle
1 Keep the metallic parts indicated by the arrows in
the illustration inside the large white gear.
2 Set the platter on the motor board while holding the
belt as shown in the illustration and hook the belt on
the motor pulley.
3 Place the rubber mat on the platter so that the holes
for auto-record-size selection on the rubber mat and
on the platter are matched correctly.
SERVICING NOTE
PS-LX330 contains power supply circuit.
When repairing, do not connect the connector to control
the system.
If connection is required to confirm synchronized ope-
ration, connect the connector after cutting the pattern
and removing the jumper lead as illustrated.
REPLACING THE STYLUS
The stylus will lose its effectiveness and begin to
damage records after about 400 hours of use.
An ND-143G replacement stylus is available at your
Sony dealer.
Handle the stylus carefully as it is very delicate.
Install the replacement stylus as follows.
1 Lower the sound level or turn the amplifier off.
2 Secure the tonearm to the arm rest.
3 While holding the tonearm pipe with your hand,
detach the stylus assembly as illustrated.
4 Insert the new stylus into the cartridge.
OPERATING VOLTAGE (Ps-Lx330)
Before connecting the unit to the power source, check
that the operating voltage of your unit is the same as the
local power line voltage.
The voltage selector is located on the motor board. If the
selector must be reset, disconnect the ac power cord
and slide the selector to the desired voitage.
220 - 240 V
Cut pattern.
Remove the jumper lead.
