PS-LX430/430C/431/431N/433__

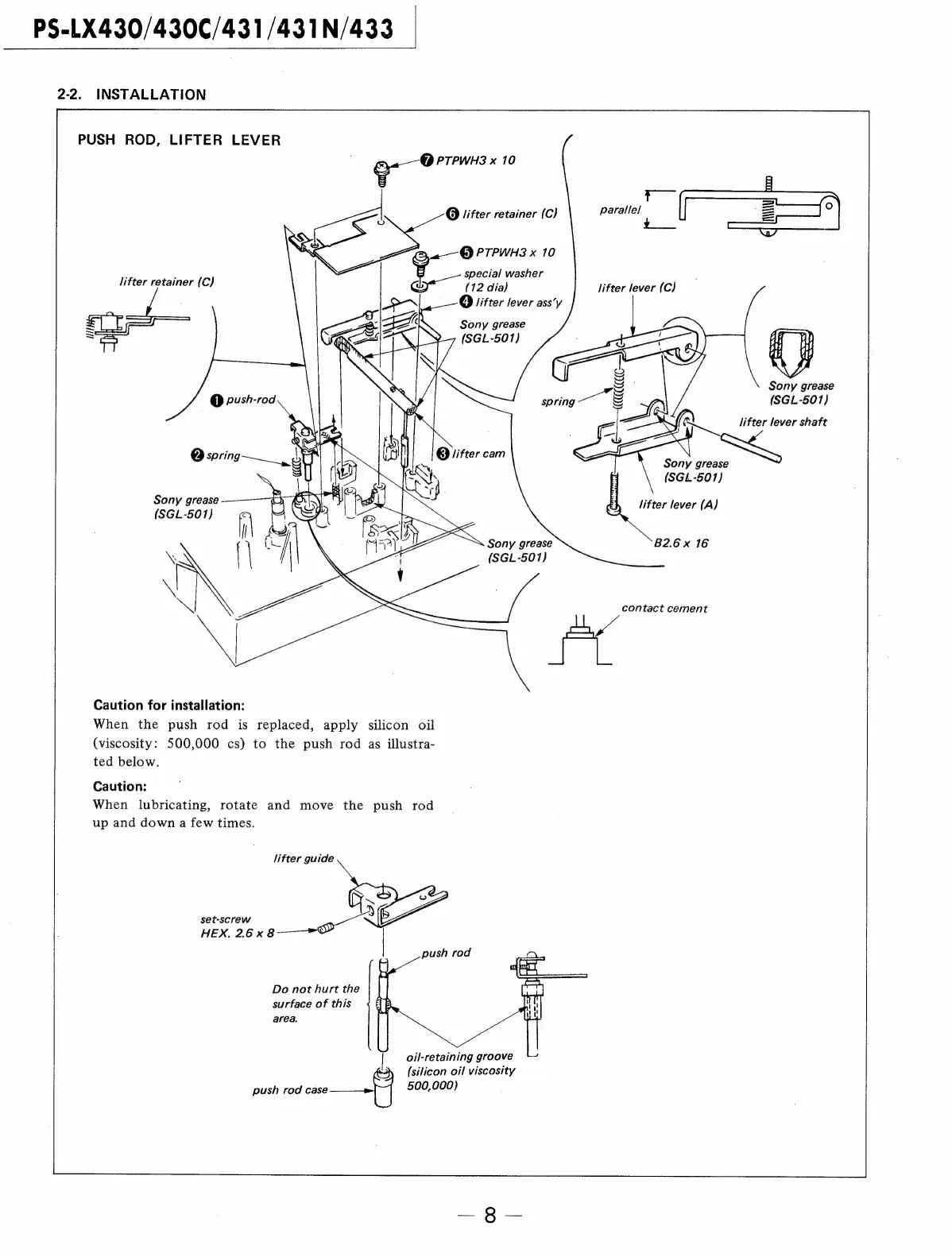

2-2. INSTALLATION
PUSH ROD, LIFTER LEVER
e-° PTPWH3 x 10
@ lifter retainer (C)
ae — @ PTPWH3 x 10
special washer
(12 dia)
4) lifter lever ass’y
lifter retainer (C)
Sony grease
(SGL-501)
Hf}
i Q lifter cam
Sony grease
(SGL-501)
Sony grease
(SGL-501)
Caution for installation:
When the push rod is replaced, apply silicon oil
(viscosity: 500,000 cs) to the push rod as illustra-
ted below.
Caution:
When lubricating, rotate and move the push rod
up and down a few times.
lifter guide
set-screw
HEX. 2.6 x 8
Do not hurt the
surface of this
area.
oil-retaining groove
|, (silicon oil viscosity
push
rod
case
a
500,000)
Parallel
lifter lever (C)
Sony grease
(SGL-501)
—_o shaft
Sony grease
(SGL-501)
lifter lever (A)
B2.6 x 16
contact cement
