SECTION 2
EXPLODED VIEW
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories and packing materials are given in
the last of this parts list.
NOTE:
• SC Classification :
S : Stocked parts U : Unsupplied parts
O : Ordered parts

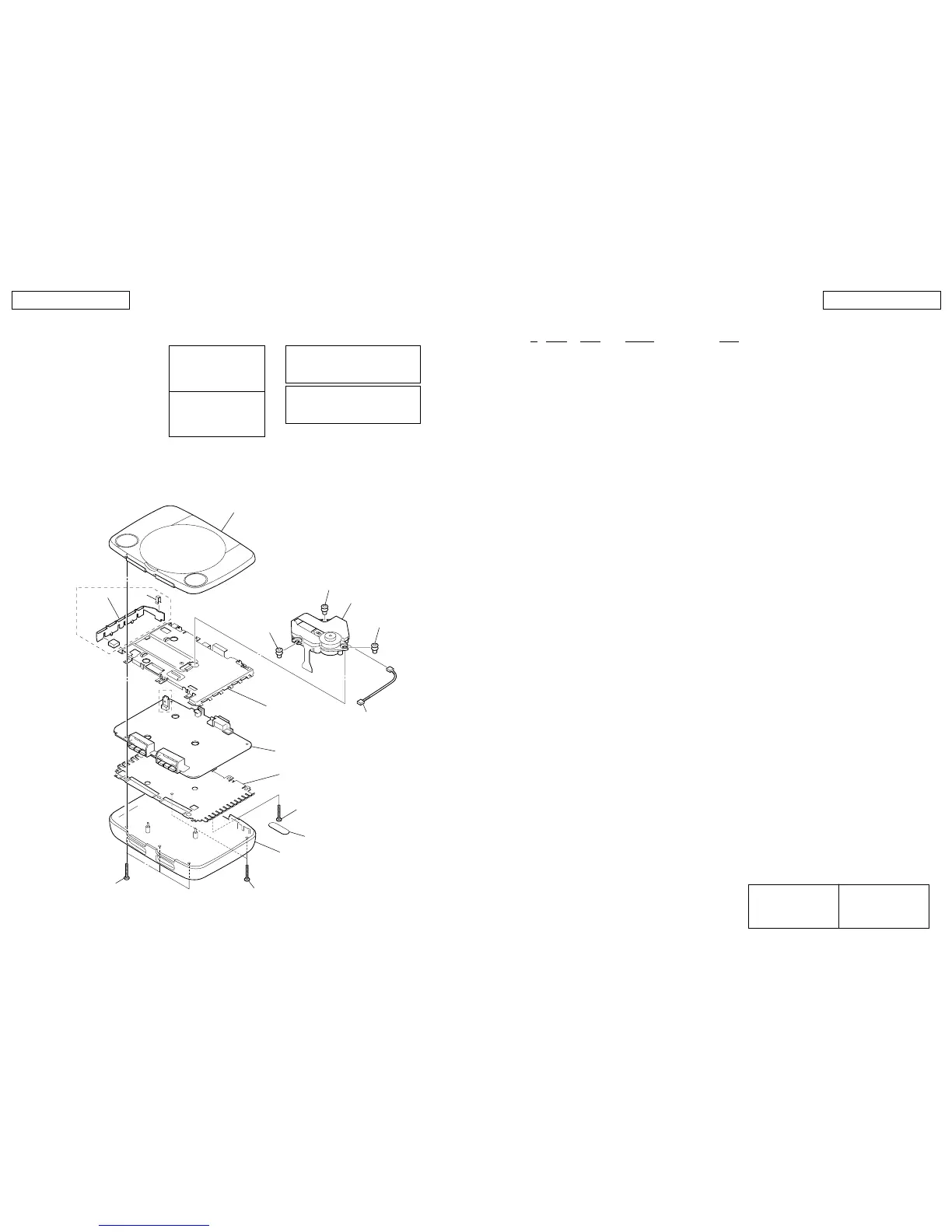

2-1. MAIN BLOCK
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous rediation exposure.
The components identified by
mark 0 or dotted line with mark.
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
SC Ref. No. Part No. Description Remark
2.6X16
2.6X16
Lower
B-shield
PM-41
PM
A-shield
BAM
INSU
INSU
(-11)
(-11)
INSU
Clip
Heat Sink
Upper
2.6X16
Void
O A-shield X-3950-906-1 SHIELD (A) ASSY
O B-shield 3-063-429-01 SHIELD (B)
S0 BAM 8-820-135-01 DEVICE, OPTICAL KSM-440BAM/C1NP
O Clip 3-063-704-01 CLIP (-11)
O Heat Sink 3-063-703-01 HEAT SINK (-11)
S INSU 3-063-428-01 INSULATOR (A) (-11)
S INSU 3-965-376-11 INSULATOR (-21/-31/-41/-51/-61)
O Lower X-3950-801-1 CABINET (LOWER) ASSY (101)
O Lower X-3950-806-1 CABINET (LOWER) ASSY
(100:-21/-31/-41/-51/-61,102/103)
O Lower X-3950-905-1 CABINET (LOWER) ASSY (-11)
O PM 1-954-377-31 HARNESS (PM-86)
O0 PM-41 A-6713-742-A PM-41 BOARD, COMPLETE (100:-11/-21/-31)
O0 PM-41 A-6713-768-A PM-41 BOARD, COMPLETE (101:-21/-31)
O0 PM-41 A-6713-776-A PM-41 BOARD, COMPLETE (102:-21/-31)
O0 PM-41 A-6713-853-A PM-41 BOARD, COMPLETE (100:-41/-51)
O0 PM-41 A-6713-854-A PM-41 BOARD, COMPLETE (101:-41/-51)
O0 PM-41 A-6713-855-A PM-41 BOARD, COMPLETE (102:-41/-51)
O0 PM-41 A-6713-864-A PM-41 BOARD, COMPLETE (103:-41/-51)
O0 PM-41 A-6713-902-A PM-41 BOARD, COMPLETE (101:-61)
O0 PM-41 A-6713-903-A PM-41 BOARD, COMPLETE (100:-61)
O0 PM-41 A-6713-904-A PM-41 BOARD, COMPLETE (102:-61)
O0 PM-41 A-6713-906-A PM-41 BOARD, COMPLETE (103:-61)
O Upper X-3950-800-1 CABINET (UPPER) ASSY (101)
O Upper X-3950-904-1 CABINET (UPPER) ASSY (-11)
O Upper X-3950-904-2 CABINET (UPPER) ASSY
(100:-21/-31/-41/-51/-61,102/103)
O Void 3-064-752-01 TAPE, VOID (100)
O Void 3-065-630-01 TAPE (B), VOID (101)
O Void 3-065-656-01 TAPE (C), VOID (102)
O Void 3-066-884-01 TAPE (D), VOID (103)
O 2.6X16 3-063-705-01 SCREW (2.6X16), TAPPING
