Sony PS one Series User Manual

Reproduction prohibited Reproduction prohibited
3-1 3-23-1 3-2
3-2. ADJUSTMENT & CHECK TOOL
SCD-2700 TEST DISC
(J-2504-010-A)
QA DISC
PTPX-97001 for Japan & Asia area.
(J-2504-013-A)
PUPX-93001 for USA & Canada area.
(J-2504-009-A)
PEPX-94001 for Europe, Australia, Galf area.
(J-2504-007-A)
AGING DISC
PTPX-97002 for Japan & Asia area.
(J-2504-019-A)
PUPX-93002 for USA & Canada area.
(J-2504-020-A)
PEPX-94002 for Europe, Australia, Galf area.
(J-2504-017-A)
ANALOG CONTROLLER SERVICE DISC
PTPX-97012 for Japan & Asia area.
(J-2504-021-A)
PUPX-93010 for USA & Canada area.
(J-2504-022-A)
PEPX-94009 for Europe, Australia, Galf area.
(J-2504-023-A)
ANALOG CONTROLLER CHECKER (PRE-H3000)
(J-2504-008-A)
SWITCH ON JIG (PRJ-001)
(J-2504-003-A)
3-3. ATTENTION
Dielectric voltage withstand of Optical Device.
After repair complete. Dielectric voltage withstand test and Insulation resistance test to be conducted
according to the regulation of IEC-65 EN60065 or UL1492 or .
About replacement of Optical Device.
Check the specification of RF level, Jitter, Eye pattern, Focus gain and Tracking error using Check jig before
replaceing the Optical Device.
When Optical Device satisfied those specification, Playback QA DISC or AGING DISC for checking double
speed ability and sleding mechanism.

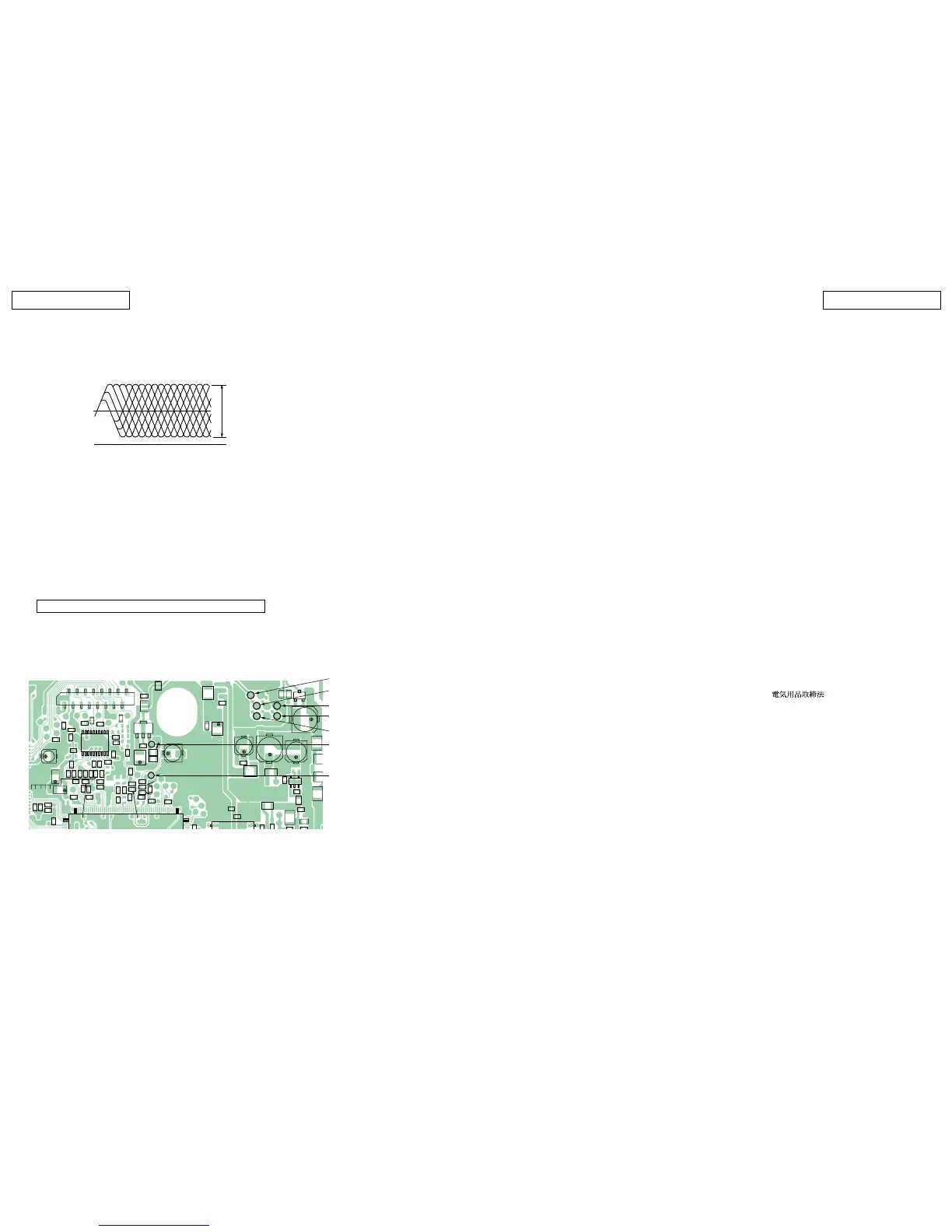

SECTION 3
ADJUSTMENTS
3-1. CHECK SPECIFICATION
• RF signal waveform (eye pattern)
VOLT/DIV : 0.2 V
TIME/DIV : 500 nS
0.90 to 1.35 Vp-p
0V
Use SCD-2700 DISC when measured RF level.
Use the oscilloscope with input impedance more than 10 MΩ.
Check Point for PU-41 Board.
3-1 3-2
RF level 0.90 to 1.35 Vp-p (Check point : Between CL704 (HOT) and CL710 (VC).)
RF Jitter Below 9.0 nS (Measuring by KJM-6135S JITTER METER.)
Below 27.0 nS (Measuring by KJM-6235S JITTER METER.)
PP level 1.1 ± 0.6 Vp-p (Check point : Between CL776 (HOT) and CL710 (VC).)
Use LPF (fc = 10 kHz)
Tracking level 1.25 ± 0.65 Vp-p (Check point : Between CL709 (HOT) and CL710 (VC).)
Caution. Vc Line (CL710) do not make common use with GND line.
Q003
C605
L601
PS004
PS601
PS603
C618
L604
C316
C658
C768
C701
C740
C741
C762
R745
C737
R739
C738
R712
C729
C715
C728
C725
C726
R793
R770
R710
R714
R733
C714
R740
R738 R775 C720 R727 R732
C743
R717
L701
R642
C704
R703
FB602
R014
R015
C639
C600
C637
C657
R701
CN702
R746
C763
R748
C742
Q701
R750
C739
R749
R747
C705
C611
R705
R704
C703
C706
R774
R783
C761
C709
R706
C774
C744
R702
R723
R734
C736
IC723
C731
R795
R741
R769
FB710
C656
C617
IC602
C641
C635
C609
C659
C608
L607
L606
L608
L106
C648
C647
FB003
21
1
1
2
15
16
10
2011
20
1
3
5
4
52
1
208
53
CL727 (Iop)
CL728 (Iop)
CL776 (HOT) (PP level)
CL709 (HOT) (Tracking level)
CL710 (VC)
CL706 (GND)
CL704 (HOT) (RF level)
