| PS-X50

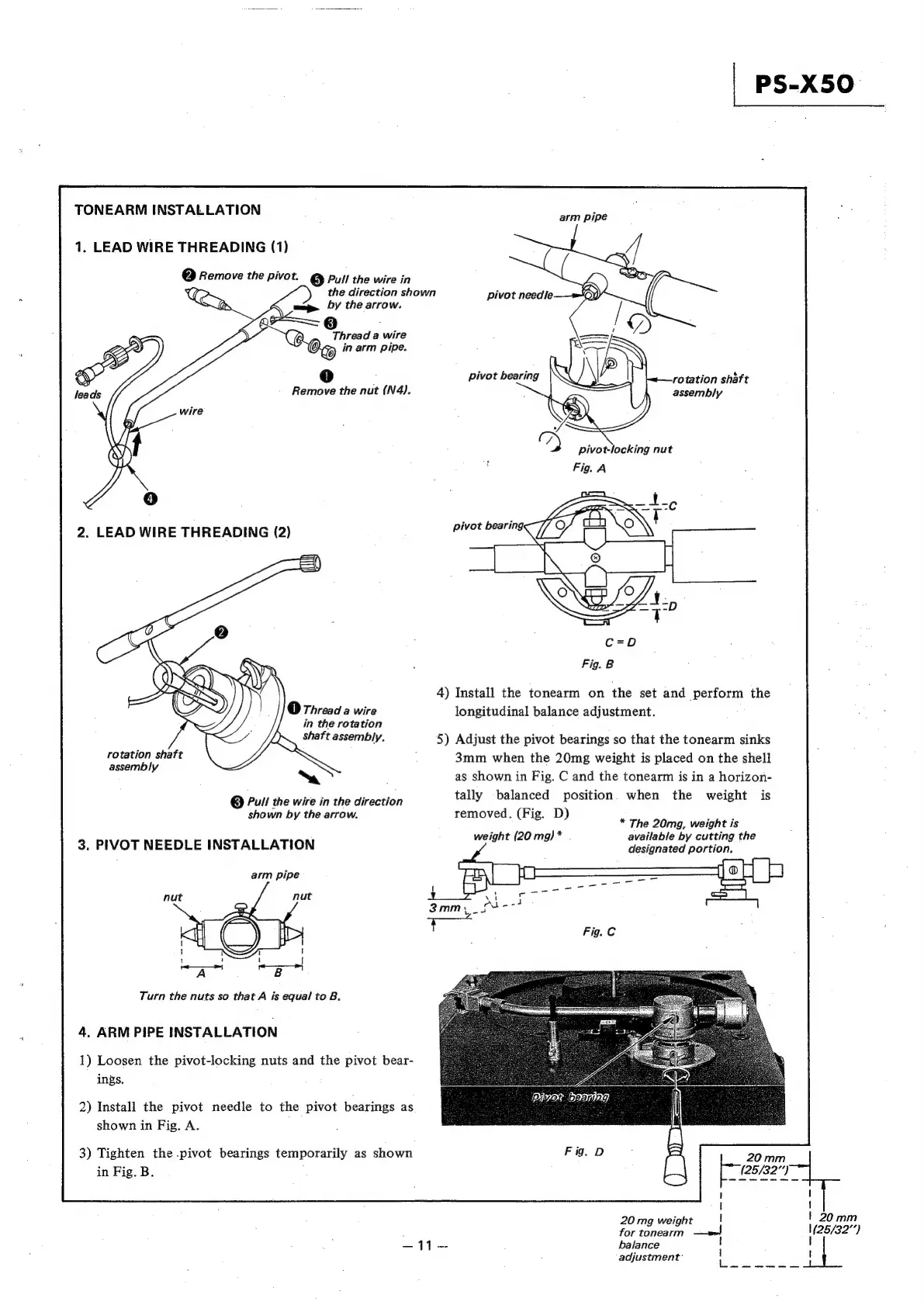

TONEARM INSTALLATION
arm pipe
1, LEAD WIRE THREADING (1)
@ Remove the pivot. @ Pull the wire in
/ the direction shown
Caan A > by the arrow.
Thread a wire
in arm pipe.
Remove the nut (N4).
2. LEAD WIRE THREADING (2)
4) Install the tonearm on the set and perform the
O Thread a wire longitudinal balance adjustment.
in the rotation
shaft assembly. 5) Adjust the pivot bearings so that the tonearm sinks
rotation shaft 3mm when the 20mg weight is placed on the shell
assembly ‘ ‘ ee ,
as shown in Fig. C and the tonearm is in a horizon-
@ Pull the wire in the direction tally balanced position. when the weight is
shown by the arrow. removed. (Fig. D) aed.
* The 20mg, weight is
ight (20 * jlable b' ji h
3. PIVOT NEEDLE INSTALLATION meee 20 ma uesdeenen
arm pipe
Turn the nuts so that A is equal to B,
4. ARM PIPE INSTALLATION
1) Loosen the pivot-locking nuts and the pivot bear-
ings.
2) Install the pivot needle to the pivot bearings as
shown in Fig. A.
3) Tighten the .pivot bearings temporarily as shown ? 20mm
in Fig. B. (25/32”)
20 mg weight I 1 20mm
for
tonearm
—#l
1/25/32”)
-—11-—
balance
I
|
:
adjustment:
_
I
