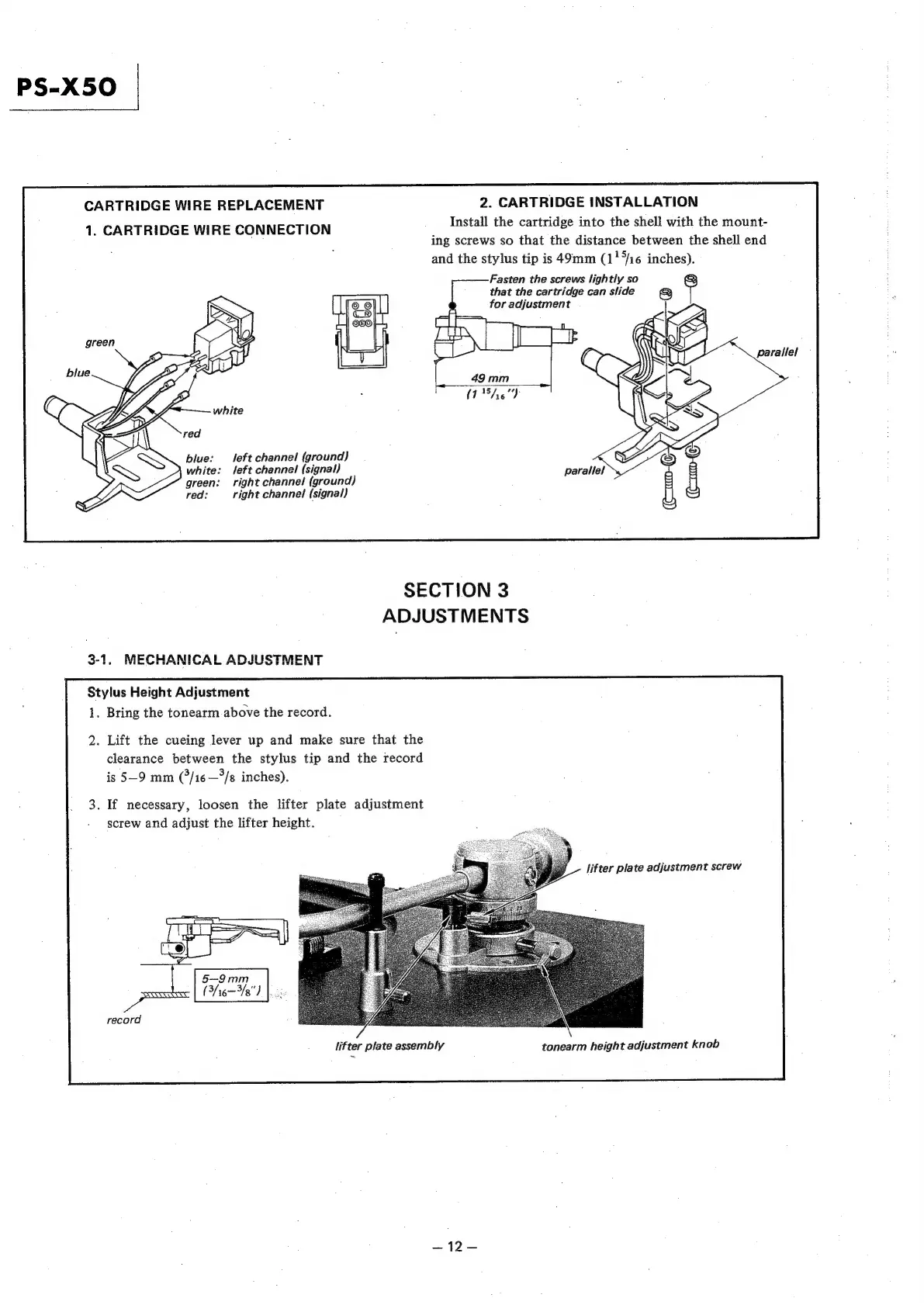

Sony PS-X50 - Section 3 Adjustments; Mechanical Adjustments

PS-X50
CARTRIDGE
WIRE
REPLACEMENT
2.
CARTRIDGE
INSTALLATION
1. CARTRIDGE WIRE CONNECTION Install the cartridge into the shell with the mount-
j ing screws so that the distance between the shell end
and the stylus tip is 49mm (15/6 inches).
Fasten the screws lightly so
i
that the cartridge can slide
for adjustment
(1/69
left channel (ground)
left channel (signal)
right channel (ground)
right channel (signal)
SECTION 3
ADJUSTMENTS
3-1, MECHANICAL ADJUSTMENT
Stylus Height Adjustment
1, Bring the tonearm above the record.
2. Lift the cueing lever up and make sure that the
clearance between the stylus tip and the record
is 5—9 mm (3/16 —°/s inches).
. If necessary, loosen the lifter plate adjustment
screw and adjust the lifter height.
lifter plate adjustment screw
lifter
plate
assembly
tonearm
height
adjustment
knob
—12—
