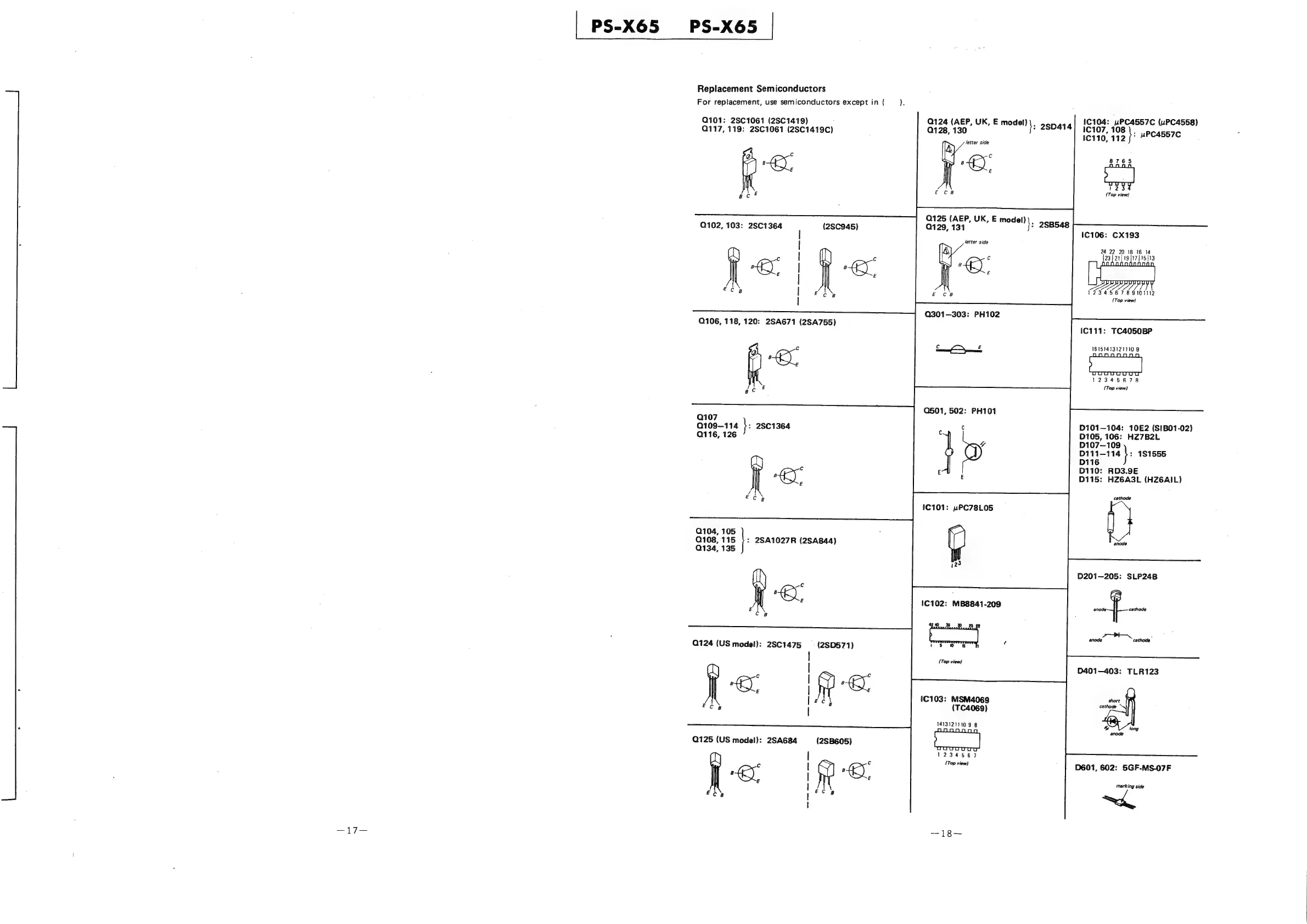

Replacement Semiconductors
For replacement, use semiconductors except in (
Q101: 2SC1061 (2SC1419) .
Q117, 119: 2SC1061 (2SC1419C)
Q102, 103: 2SC1364 (2SC945)
a
a
Q106, 118, 120: 2SA671 (2SA755)
Q107
Q109—114 \, 2SC1364
Q116, 126
Q104, 105
Q108,115 |: 2SA1027R (2SA844)
Q134, 135
Q124
(US
model):
2SC1475
—
(2SD571)
|
|
Lt
i
E
|
=
cs,
Se
Q125
(US
model):
2SA684
(2SB605)
l=
iRe
Q124 (AEP, UK, E model) \: 28D414 1C104: uPC4557C (uPC4558)
0128,
130
eer,
ie
\:
uPC4557C
8765
12
:
(Top
view)
Q125
(AEP,
UK,
E
model).
>sa54e
129,
131
:
a
1C106:
CX193
letter side
yO
c
—E cB
24 22 20 16 16 14
23 | 21)19]17] 15/13
123456789101112
(Top view}
Q301—303: PH102
1C111: TC4050BP
16151413121110 9
c <> 3
12345678
(Top view)
Q501, 502: PH101
c
c
f
. E
1C101: uPC78L05
D101—104: 10E2 (S!1B01-02)
D105, 106: HZ7B2L
D107—109
pini—a14 | 181555
D116
D110: RD3.9E
D115: HZ6A3L (HZ6AIL)
cathode
anode
D201—205: SLP24B
anode: cathode
(Top view)
D401—403: TLR123
1C103:
MSM4069
need
(TC4069)
cathode
1413121110
9
8
es
long
anode
1234567
(Top
view)
D601,
602:
5GF-MS-07F
marking
side
