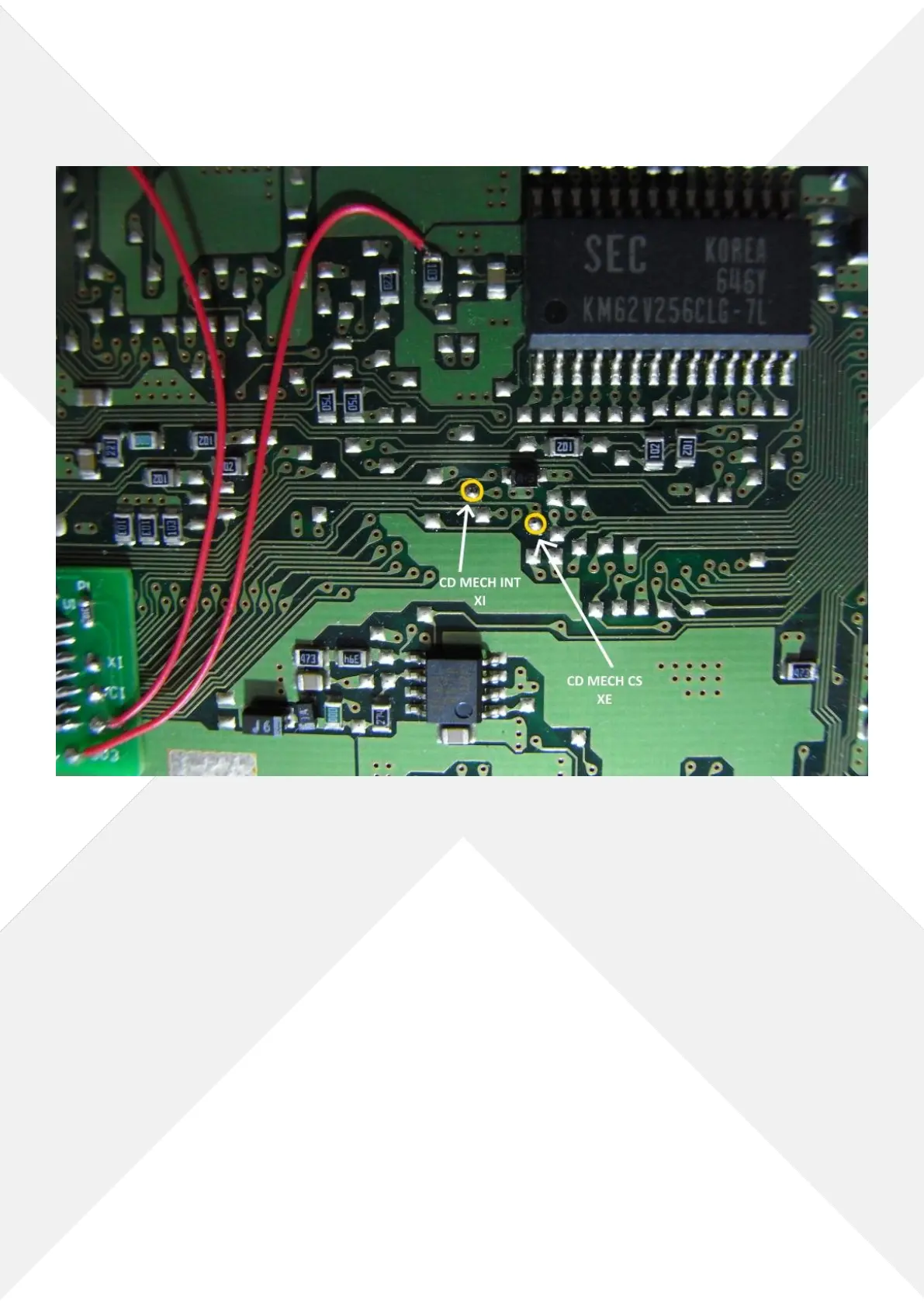

The next step is to solder the “CD MECH INT” and “CD MECH CS” lines.
Note that there are no trace cuts in this photo.
You can see the points marked in yellow for where to solder.
