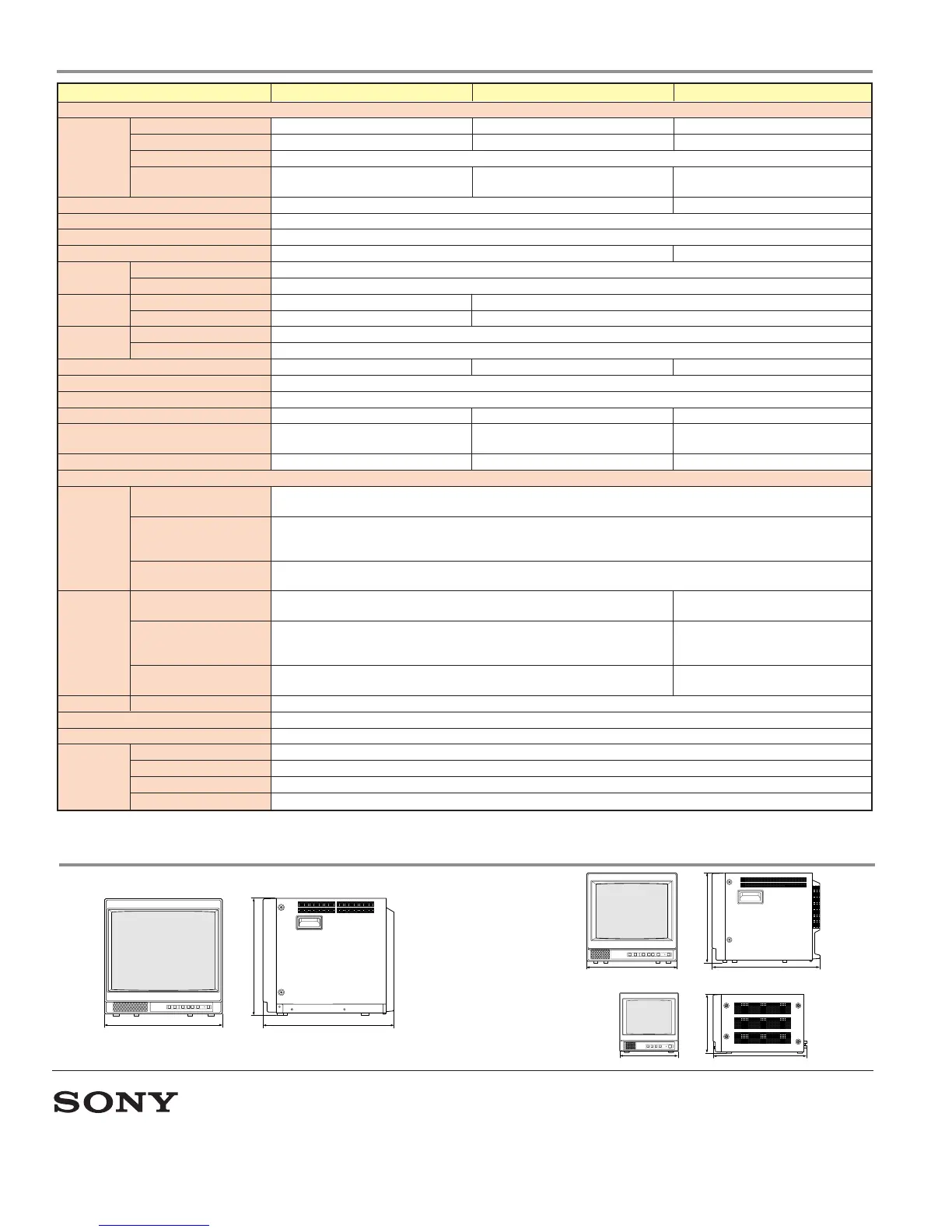

Specifications
DI-0060
©2003 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
All non-metric weights and measures are approximate.
Features and specifications are subject to change without notice.
Sony and Trinitron are trademarks of Sony.
*Viewable area, measured diagonally.
** The Y/C input has priority over the composite input.
PVM-20L1 PVM-14L1 PVM-9L1
General
CRT CRT type * 20-inch Trinitron 14-inch Trinitron 9-inch Trinitron
AG pitch 0.4 mm 0.25 mm 0.5 mm
Phosphor P-22
Effective picture size (4:3) 385.8 (W) x 290.6 (H) mm, 267.5 (W) x 200.6 (H) mm, 159.5 (W) x 117.0 (H) mm
481.3 (Diagonal) mm 340.0 (Diagonal) mm 194.5 (Diagonal) mm
Center Resolution (Y/C input 4:3) 600 TV lines 250 TV lines
Color system PAL, NTSC
Scanning frequency 1 5.734 kHz (NTSC), 15.625 kHz (PAL)
Normal scan 7% overscan 6% overscan
Linearity Horizontal Less than 8% (typical)
Vertical Less than 7% (typical)
Convergence
Center 0.5 mm (Typical) 0.4 mm (Typical)
Peripheral 0.7 mm (Typical) 0.5 mm (Typical)
Raster size Horizontal 1.0% (typical)
stability
Vertical 1.5% (typical)
HV regulation 4.0% (typical) 3.5% (typical) 3.0% (typical)
Color temperature D65/D93/User adjustable
Power requirements AC 100 to 240 V, 50/60 Hz
Power consumption (Typical) 75 W 68 W 40 W
Dimensions (W x H x D) 17
3
/
4
x 17
3
/
8
x 19
7
/
8
inches 13
5
/
8
x 13
1
/
2
x 16
3
/
8
inches 8
5
/
8
x 8
5
/
8
x 13
7
/
8
inches
(Approx. 449 x 441 x 502 mm) (Approx. 346 x 340 x 414 mm) (Approx. 217 x 218 x 350 mm)
Weight 61 lb 12 oz (Approx. 28.0 kg) 33 lb 1 oz (Approx. 15.0 kg) 13 lb 14 oz (Approx. 6.3 kg)
Input/Output
Line A Input/ Composite BNC, Loop-through, automatic 75 Ω termination
Output 1.0 Vp-p +3 dB/-6 dB, sync negative
Y/C** Mini Din 4-pin, Loop-through, automatic 75 Ω termination
Y: 1.0 Vp-p, sync negative
C: 0.286 Vp-p (NTSC) / 0.3 Vp-p (PAL)
Audio Phono jack, Loop-through
-5 dBu 47 kΩ or higher
Line B Input Composite BNC
–
1.0 Vp-p +3dB/-06 dB, sync negative
Y/C** Mini Din 4-pin
Y: 1.0 Vp-p, sync negative –
C: 0.286 Vp-p (NTSC) / 0.3 Vp-p (PAL)
Audio Phono jack
–
-5 dBu 47 kΩ or higher
Remote Parallel remote Modular 8-pin (Fixed)
Built-in Speaker Output 0.8 W (Distortion: Less than 5%)
Regulation Compliance
UL-1950, CSA-950, EN 60950, VCCI class A, FCC class A, IC class A, C-Tick, CE (LVD), CE (EMC), JEITA, DHHS, DNHW, CCC, KTL, BSMI
Operating Operating temperature 0 to +35˚ C (+32 to +95˚ F)
conditions
Storage temperature -10 to +40˚ C (+14 to +104˚ F)
Operating humidity 30 to 85% (No condensation)
Storage humidity 0 to 90%
Dimensions
■ PVM-14L1
■ PVM-9L1
Unit: mm (inches)
■ PVM-20L1
Printed in USA (10/03)
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/displaysystems
