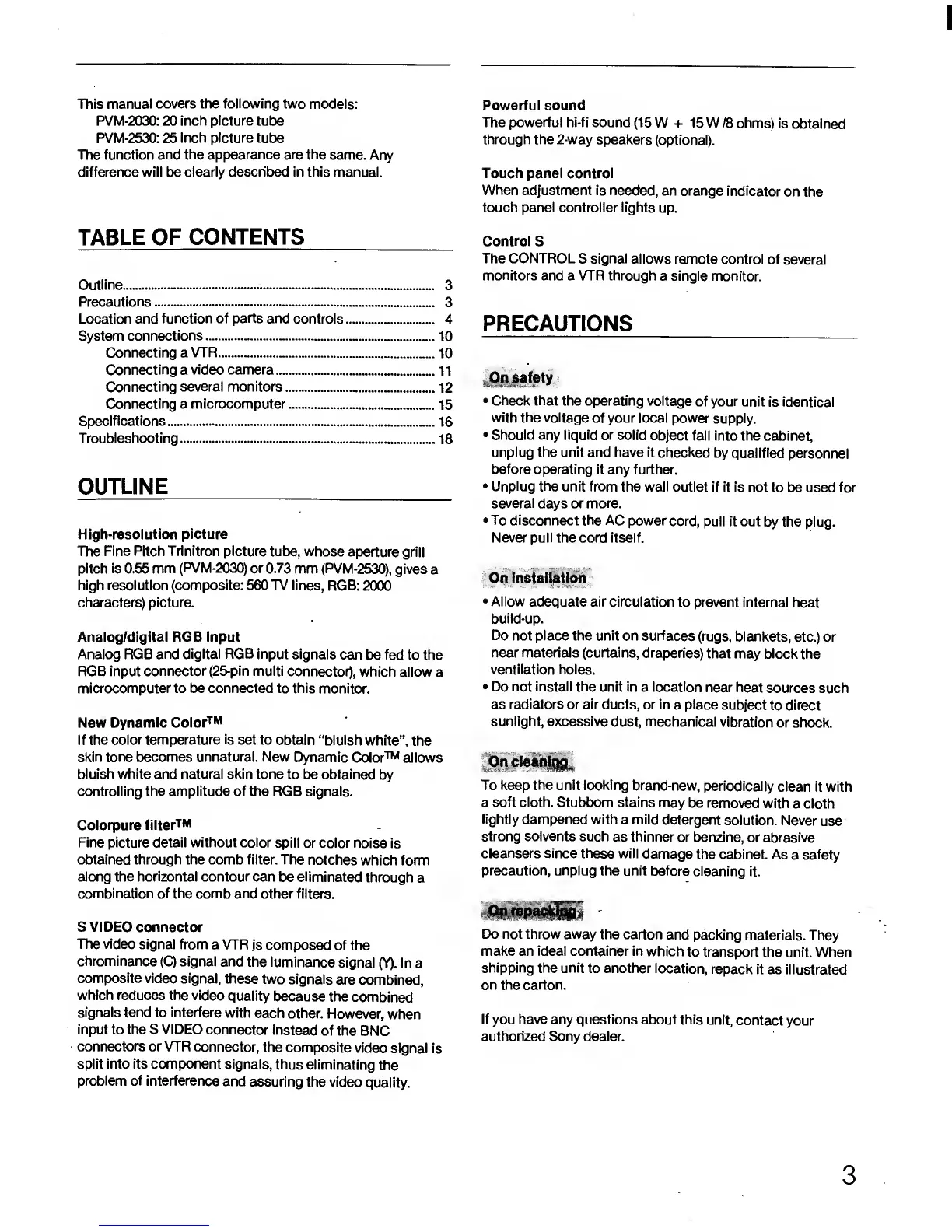

This
manual covers the
following
two
models:
P\/M-2030: 20
inch picture
tube
PVM-2530: 25
inch picture tube
The function
and the appearance are the
same.
Any
difference will be
clearly described in this
manual.
TABLE OF
CONTENTS
Outline 3
Precautions
3
Location and
function of parts and
controls
4
System
connections
10
Connecting a
VTR
10
Connecting a
video camera
11
Connecting
several monitors
12
Connecting a microcomputer
15
Specifications
16
Troubleshooting
18
OUTLINE
High-resolution picture
The Fine
Pitch Trinitron picture
tube, whose
aperture
grill
pitch is 0.55 mm
(PVM-2030) or
0.73 mm (PVM-2530),
gives a
high resolution
(composite: 560 TV
lines,
RGB: 2000
characters)
picture.
Analog/digital RGB
input
Analog RGB
and digital RGB input
signals
can
be
fed
to the
RGB input
connector (25-pin multi
connector),
which
allow a
microcomputer to be connected to this
monitor.
New
Dynamic
Color7M
If the
color temperature is set to
obtain “bluish
white”,
the
skin tone becomes unnatural. New
Dynamic
Color™ allows
bluish white and natural skin tone
to be obtained
by
controlling the amplitude of the RGB
signals.
Colorpure
filterTM
Fine picture detail without color
spill or color
noise is
obtained through the comb filter. The
notches
which form
along the
horizontal
contour can
be eliminated
through
a
combination of the comb and
other filters.
S VIDEO connector
The video
signal from
a
VTR
js composed
of
the
chrominance
(Q
signal and
the
luminance
signal
(Y). In
a
composite video signal,
these
two
signals
are
combined,
which reduces the video
quality
because the
combined
signals tend to interfere
with
each other.
However,
when
input
to
the S VIDEO
connector
instead
of the
BNC
connectors or VTR
connector,
the
composite
video
signal is
split into its component
signals, thus
eliminating
the
problem of
interference
and
assuring
the video
quality.
Powerful sound
The powerful hi-fi sound
(15
W
-h
15 W
/8 ohms)
is
obtained
through the 2-way
speakers
(optional).
Touch panel control
When
adjustment is needed,
an orange
indicator
on
the
touch
panel controller lights
up.
Control
S
The CONTROL
S
signal
allows remote
control
of
several
monitors
and a VTR through
a single monitor.
PRECAUTIONS
•
Check that
the operating voltage
of your
unit is
identical
with the voltage
of your local power
supply.
•
Should any liquid or
solid object fall
into the
cabinet,
unplug the unit and have it
checked
by qualified
personnel
before operating it any further.
•
Unplug the
unit from the wall
outlet if it is
not to
be used for
several days or more.
•
To disconnect the AC
power cord,
pull it
out by the
plug.
Never pull the cord itself.
Oiilns|al|at|on
•
Allow
adequate air circulation
to prevent
internal
heat
build-up.
Do not place the unit on
surfaces
(rugs, blankets,
etc.) or
near materials (curtains,
draperies)
that may block
the
ventilation holes.
•
Do not install the
unit in a location
near heat
sources
such
as radiators or air
ducts,
or
in
a
place
subject
to direct
sunlight,
excessive
dust, mechanical
vibration
or shock.
To keep
the
unit looking
brand-new,
periodically
clean
it with
a
soft cloth.
Stubborn stains may
be removed
with
a cloth
lightly dampened with
a mild
detergent
solution. Never
use
strong solvents such
as thinner or
benzine,
or abrasive
cleansers since
these will
damage the
cabinet.
As
a
safety
precaution, unplug
the unit before
cleaning
it.
Do not throw away
the carton
and
packing
materials. They
make
an
ideal container in
which
to transport
the
unit. When
shipping the unit
to another
location,
repack
it as illustrated
on the carton.
If
you
have
any questions
about this
unit,
contact
your
authorized
Sony dealer.
3
