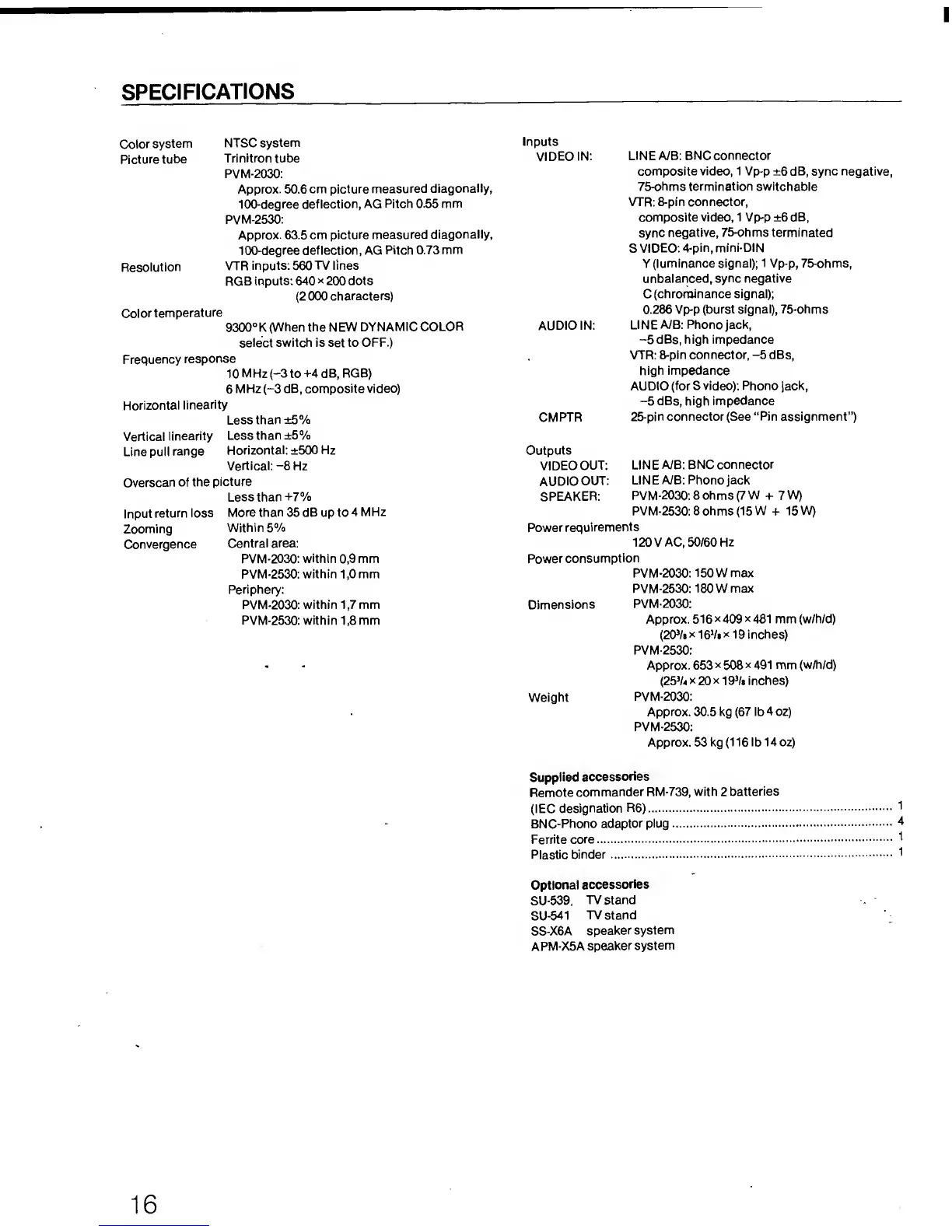

SPECIFICATIONS
Color
system
NTSC
system
tube
Trinitron
tube
PVM-2030:
Approx.
50.6cm picture
measured
diagonally,
100-degree deflection,
AG
Pitch 0.55 mm
PVM-2530:
Approx. 63.5 cm
picture measured
diagonally,
100-degree deflection, AG
Pitch 0.73
mm
Resolution
VTR
inputs:
560
TV
lines
RGB
inputs; 640
x
200 dots
(2
000
characters)
Color
temperature
9300°K(When the NEW
DYNAMIC COLOR
select
switch is set to OFF.)
Frequency
response
10MHz(-3tO-t-4dB, RGB)
6
MHz
(-3
dB, composite
video)
Horizontal
linearity
Less than
±5%
Vertical
linearity
Less
than ±5%
Line
pull
range
Horizontal:
±500 Hz
Vertical:
-8
Hz
Overscan
of the
Less than
-i-7%
Input
return loss
More than 35 dB up to
4 MHz
Zooming
Within 5%
Convergence
Central area:
PVM-2030:
within
0,9
mm
PVM-2530: within
1,0
mm
Periphery:
PVM-2030:
within
1,7
mm
PVM-2530:
within
1
,8 mm
Inputs
VIDEO
IN:
LINE
A/B:
BNC connector
composite video, 1 Vp-p
±6
dB, sync negative,
75-ohms
termination switchable
VTR: 8-pin connector,
composite video, 1 Vp-p ±6 dB,
sync
negative, 75-ohms terminated
S
VIDEO;
4-pin, mini-DIN
Y
(luminance signal);
1
Vp-p, 75-ohms,
unbalanced,
sync
negative
C
(chrominance signal):
0.286 Vp-p
(burst signal), 75-ohms
AUDIO IN:
LINE A/B: Phono jack,
-5
dBs, high impedance
VTR:
8-pin connector,
-5
dBs,
high impedance
AUDIO
(for S video); Phono jack,
-5
dBs, high impedance
CMPTR
25-pin
connector (See
“Pin
assignment”)
Outputs
VIDEO
OUT:
LINE
A/B: BNC
connector
AUDIO
OUT:
LINE
A/B: Phono jack
SPEAKER:
PVM-2030;
8 ohms
(7
W -i- 7 W)
PVM-2530: 8
ohms
(15 W -i-
15W)
Power
requirements
120 VAC, 50/60 Hz
Power
consumption
PVM-2030:
1 50 W
max
PVM-2530: 1
80
W
max
Dimensions
PVM-2030;
Approx.
516
x
409
x
481 mm(w/h/d)
(2CF/»
X
16'/$
X
19 inches)
PVM-2530:
Approx. 653
x
508
x
491 mm
(w/h/d)
(25'/<
X
20
X
19'/$
inches)
Weight
PVM-2030:
Approx.
30.5
kg (67
lb
4
oz)
PVM-2530;
Approx. 53 kg
(1
16
lb 14 oz)
Supplied
accessories
Remote
commander RM-739,
with
2
batteries
(lEC
designation
R6)
BNC-Phono
adaptor plug
Ferrite
core
Plastic
binder
Optional
accessories
SU-539
TV stand
SU-541
TV stand
SS-X6A
speaker
system
APM-X5A
speaker
system
16
