V Angle (VANG), V Bow (VBOW), Upper pin
(UPIN) and Low Pin (LPIN) Adjustments
1. Input a crosshatch signal.
2. Activate the Service Adjustment Mode.
3. Select VANG, VBOW, UPIN, and LPIN with
and .
4. Adjust with
and for the best picture.
5. Press
then to save into the memory.

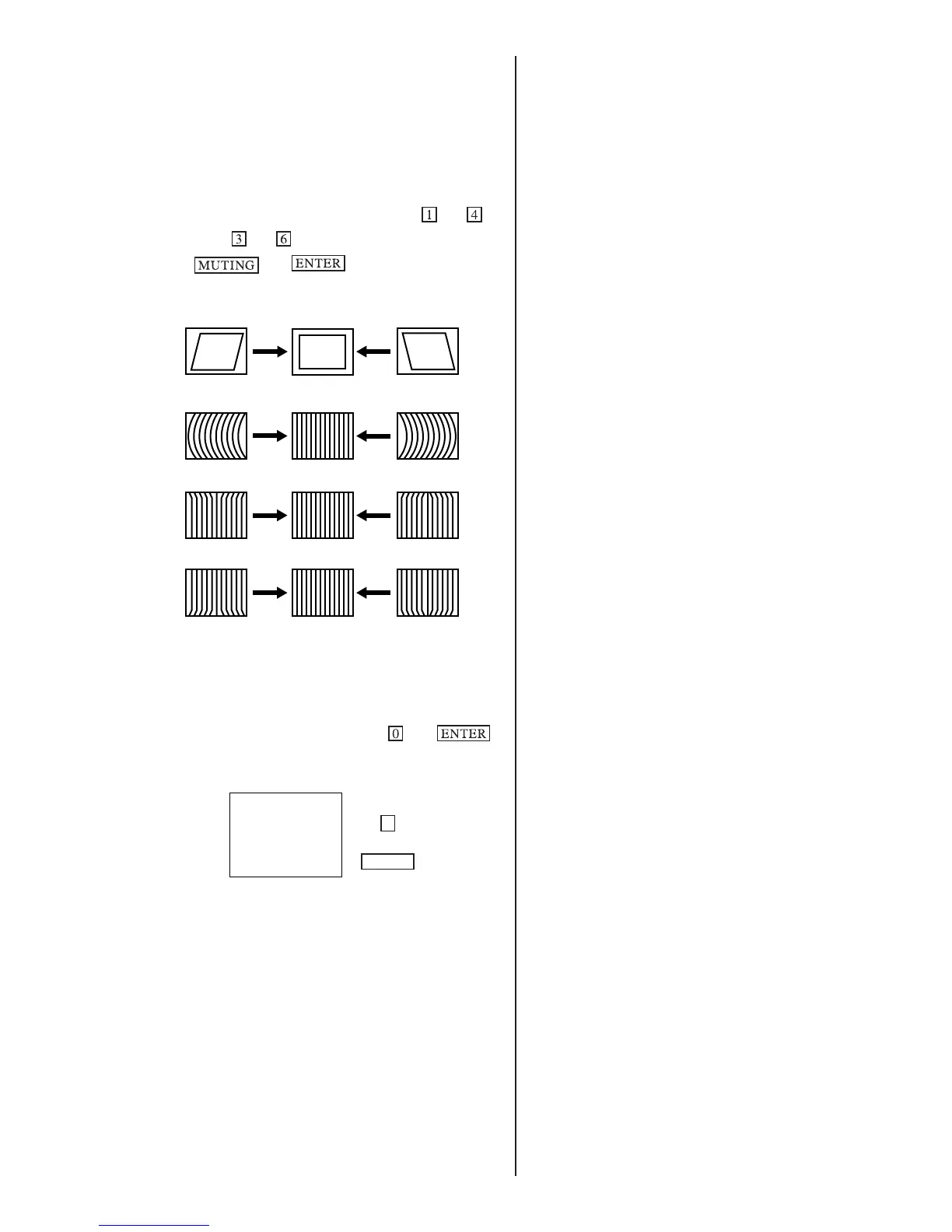

V ANGLE (VANG)
V BOW (VBOW)
UPPER PIN (UPIN)
LOW PIN (LPIN)
Service Adjustment Mode Memory
1. Change the value of the DCOL item to 1.
2. After completing all adjustments, press
then .
Read From Memory
SERVICE READ
Green
Red
ENTER
0
To Next Page
