Sony RMT-814 - 2-9. MM-043 BOARD

2-9

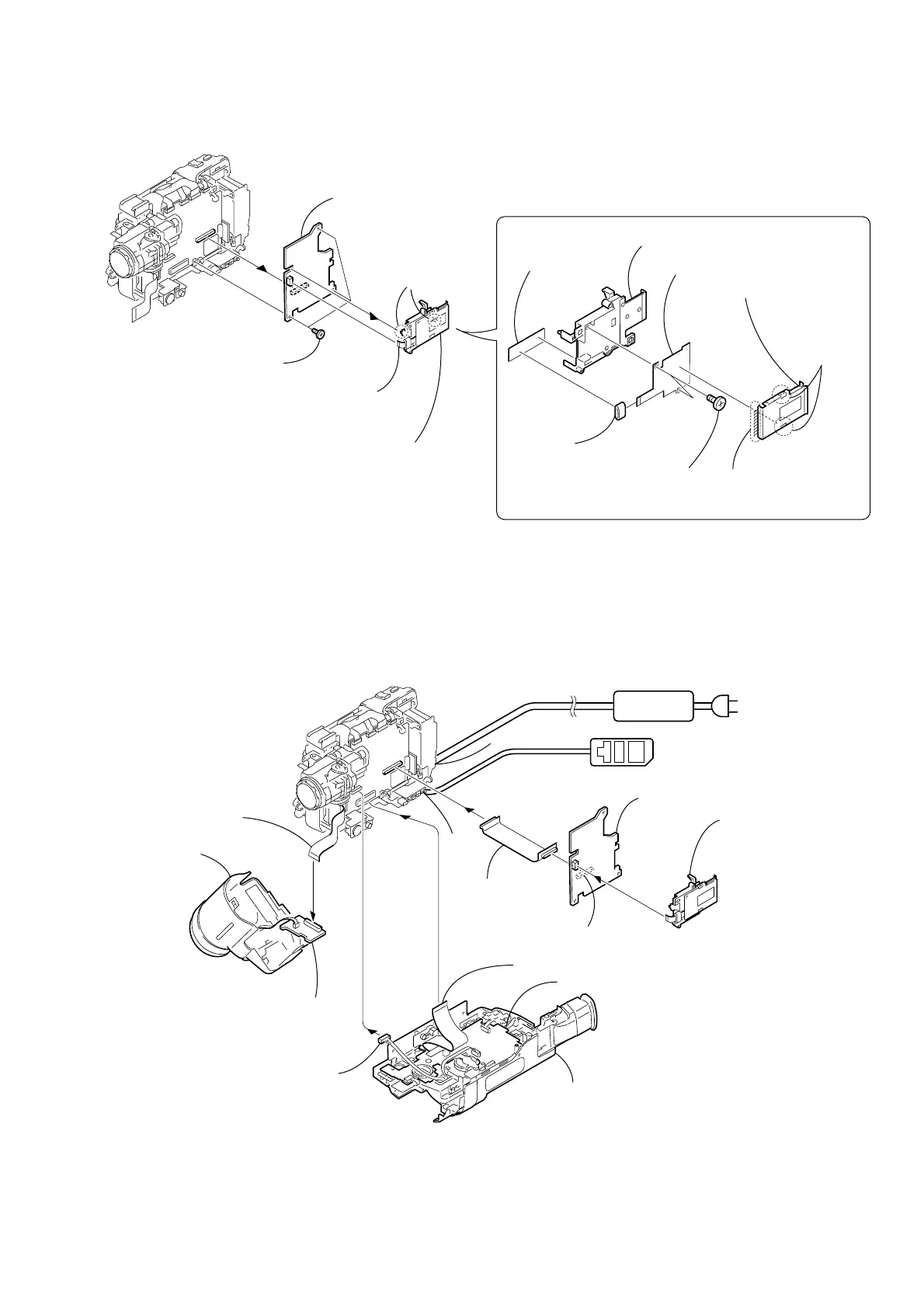

2-9. MM-043 BOARD
MM-043
Board
MM-043
Board
CF-084
Board
5 Remove the eleven
solderings
6 Remove
the two
solderings
8 FP-319 flexible
board
4 Three screws
(M1.7 × 2.5), p
4 MS holder (M)
1 Tape A
2 Ferrite
bead
3 Two tapping
screws (B2 × 5)
7 Memory
stick connector
3 MS holder (M),
Memory stick connector,
FP-319 flexible board,
Ferrite bead
1 FP-319 flexible
board (12P)
5 MM-043 board
REMOVING THE FP-319 FLEXIBLE BOARD
VC-262
Board
VC-262
Board
2 Two claws
[MM-043, CF-084, SI-030 BOARDS SERVICE POSITION]
MM-043 board
MS holder (M),
Memory stick connector,
FP-319 flexible board (12P),
Ferrite bead
CN1901
Extension cable
(J-6082-352-A)
Cabinet (R) block
assembly
Harness (VP-076) (20P)
Adjustment remote
commander (RM-95)
AC IN
AC POWER
ADAPTOR
LANC
jack
DC IN
Flexible flat cable (FFC-001) (45P)
SI-030 board
FP-316 flexible
board (26P)
CF-084 board
Front panel
section
