– 6 –
4) Fix the CK-120 board to the location where the MB-108 board is removed.
2 Connector
(CN101, 9P)
1 Connector
(CN601, 25P)
7 Connector
(CN102, 6P)
3 MB-108 board
8 FMS-23-108 flexible
cable (CN201, 5P)
4 Four screws
SUMITITE (B3)+BV)
5 FMO-8 flexible board (CN204, 8P)
6 FMM-48 flexible board (CN203, 48P)
5 Connector
(CN102, 6P)
3 MB-108 board
4 FMS-23-108 flexible
cable (CN201, 5P)
2 FMO-8 flexible board
(CN204, 8P)
1 FMM-48 flexible board
(CN203, 48P)
1
Flat cable
(FFC 25P: CN301(CK-122 board)
4 Harness 6P
(CN110)
3 Harness 6P
(CN102)
2 Connector
(CN114)

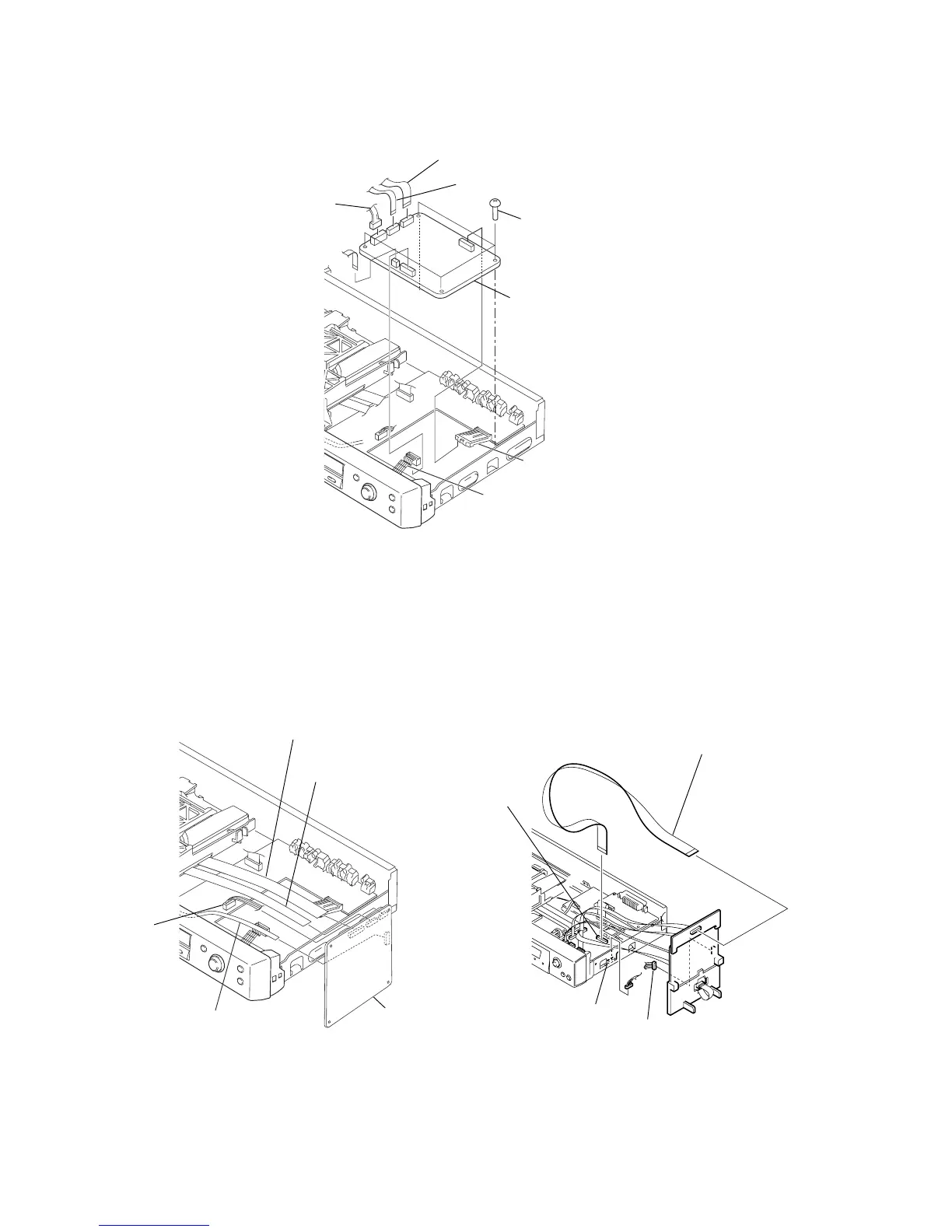

5) Set the five flexible flat cables and the harness as shown in Fig. 4 and Fig. 5.
Fig. 3.
Fig. 4. Fig. 5.
To Next Page
