– 5 –
SERVICE NOTE

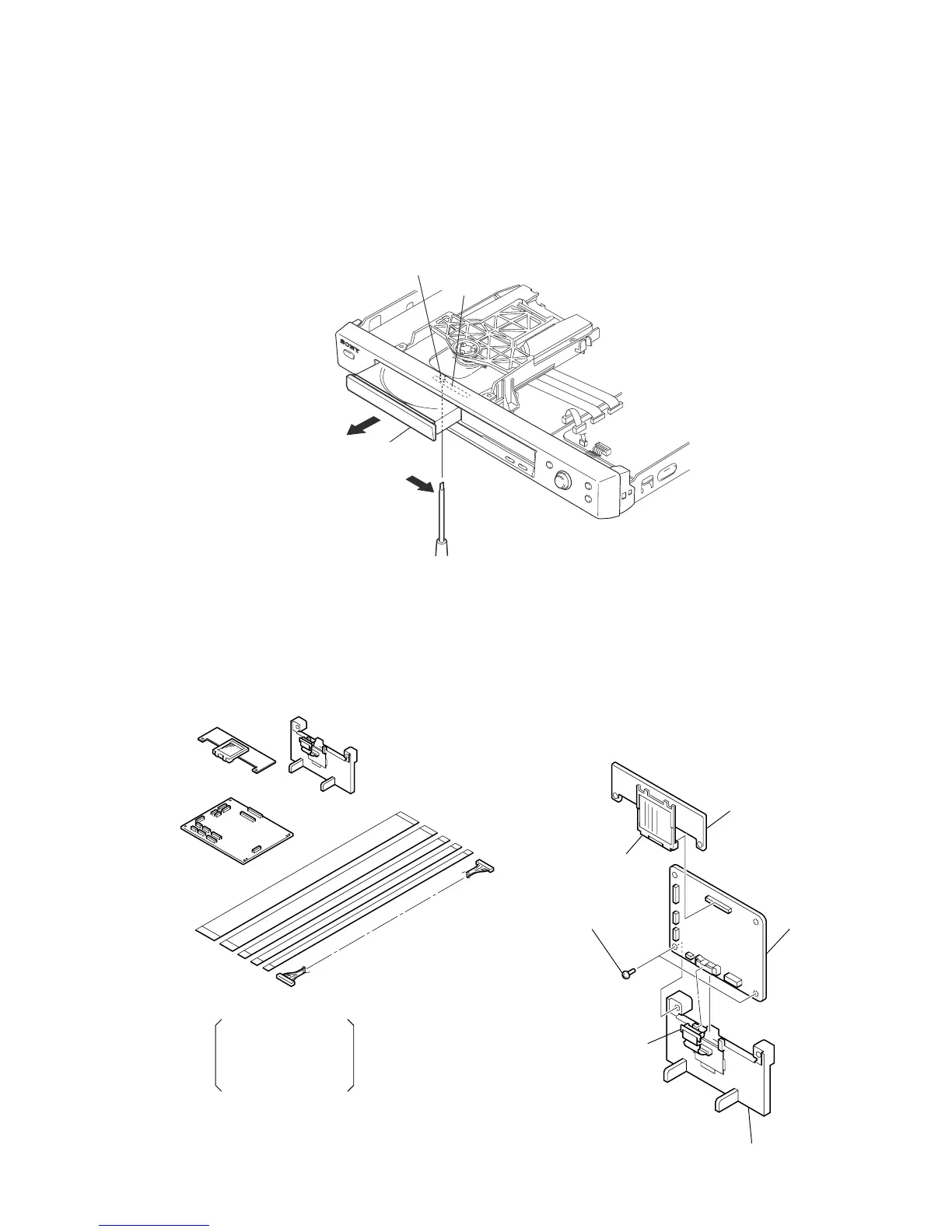

1. DISC REMOVAL PROCEDURE (at POWER OFF)
1) Open dust cover to access to a hole insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck can in the
direction of the arrow A. (See Fig. 1)
2) Draw out the tray in the direction of the arrow B, and remove a disc. (See Fig. 1)
The lever of a zipper cam
Hole
Tray
B
A
CK-120 board
(J-6090-127-A)
CK-122 board
(J-6090-129-A)
FFC 26P J-6090-117-A,
FFC 9P J-6090-118-A,
FFC 5P J-6090-119-A,
FFC 15P J-6090-121-A,
FFC 25P J-6090-122-A
Harness 6P (J-6090-126-A)
Flexible
flat cable five
Stand
(CK-121 board)
(J-6090-132-A)
4 Two screws (B3)
1 MB-108 board
6 CK-122 board
2 Stand
3 Connector (CN101)
5 Connector (CN601)
2. HOW TO SERVICE MB-108 BOARD
• Jig
1) Remove the upper case from the main unit. (Refer to 2-1)
2) Remove the MB-108 board. (Refer to 2-7)
3) Set the removed MB-108 board and CK-122 board to the stand
as shown in Fig. 2.
Fig. 1.
Fig. 2.
To Next Page
